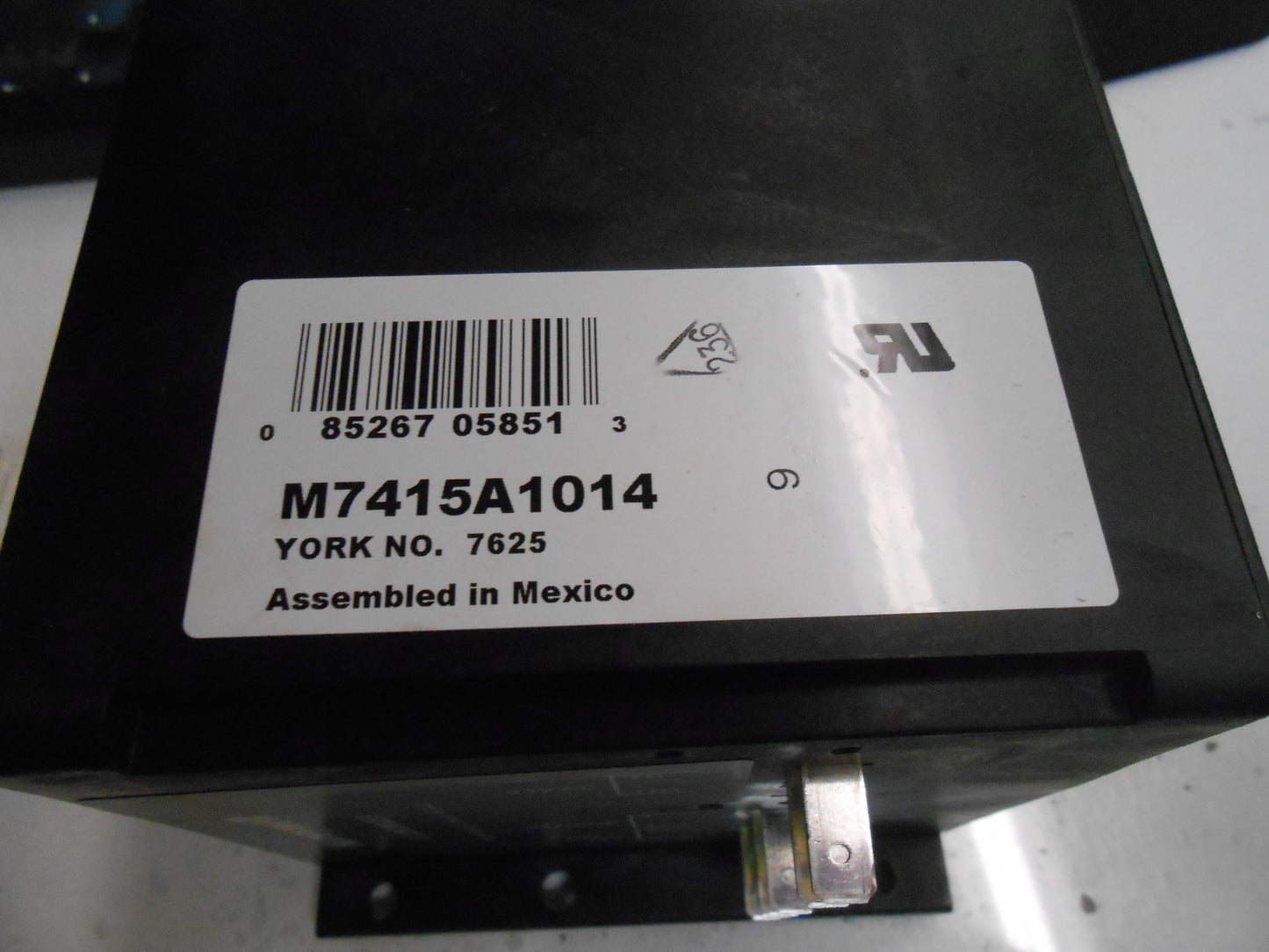

DAMPER ACTUATOR RETURN

DAMPER ACTUATOR SPRING MOTOR RETURN, VOLT:24, MOUNTING:FOOT-MOUNTED, FREQUENCY: 50/60HZ, ELECTRICAL CONNECTIONS:QUICK-CONNECT TERMINALS, OPERATING HUMIDITY RANGE:5 TO 95% RH NON-CONDENSING, OPERATING TEMPERATURE RANGE:-25F TO 125F, TIMING MINIMUM 90 SEC RUN-TIME MAX 90 SEC, STROKE:FIXED STROKE ANGLE OF ROTATION 90 DEGREES MAXIMUM, FAIL SAFE MODE:SPRING RETURN, TORQUE RATING:25 LBS-IN, ROTATION TO OPEN:CCW, TIMING NOMINAL:OPENING 90 SEC, SPRING RETURN TIMING:NOMINAL 18 SEC, MOTOR SHAFTS:1, DEADWEIGHT LOAD ON SHAFT:POWER END 15 LBS MAXIMUM, WEIGHT:3 LBS 12.6 OZ, MADE IN MEXICO
