Disconnect Switches/ Safety Switches

An AC disconnect switch (also called an HVAC disconnect switch or AC safety switch) is a dedicated shutoff device mounted near your outdoor condenser that cuts all power to the unit with a single action. It serves two purposes: it lets technicians safely de-energize the system before any maintenance or repair, and it provides an emergency shutoff if the unit malfunctions.

NEC 440.14 requires a disconnect to be installed within sight of the outdoor condensing unit and readily accessible. This isn’t optional, it’s a code requirement: every new or replacement outdoor AC installation needs one. The disconnect operates independently of your main breaker panel; it doesn't replace it. Think of it as the dedicated off-switch that's always right there when someone is working on or near the condenser.

A non-fusible AC disconnect switch provides straight on/off power interruption and relies on your main breaker panel for overcurrent protection. A fused AC disconnect switch contains internal fuses that blow during a current overload or short circuit, adding a second layer of protection between the condensing unit and the panel.

Most modern residential AC systems have built-in overload protection, so a non-fusible switch is sufficient in the majority of residential installs. Older systems and some light commercial applications often call for a fused model. Check the equipment nameplate and your local code before specifying. The nameplate will indicate whether fused or non-fusible is required for your unit.

Match the disconnect switch to the minimum circuit ampacity (MCA) listed on your AC unit's nameplate. The switch must be rated at or above that number. Common residential ratings are 30 amp AC disconnect and 60 amp AC disconnect models; larger commercial condensers and heat pump systems may require 100 amp.

Using an undersized disconnect is a code violation and a fire hazard, so when the nameplate calls for something between standard ratings, size up. If the nameplate is illegible, the equipment's installation manual lists the required disconnect specs. That nameplate is your definitive reference: don't guess on amperage.

Every surplus AC disconnect switch sold by Surplus City is brand new and never installed. "Surplus" refers to manufacturer overstock, excess distributor inventory, and discontinued stock acquired directly from manufacturers and distributors. It is not returned, refurbished, or previously used equipment.

Each product is inspected before listing. If your order arrives damaged in transit, refuse the delivery and contact us immediately for a replacement or refund. You're getting full-condition, code-compliant parts at below-distributor pricing. The surplus designation reflects origin, not quality.

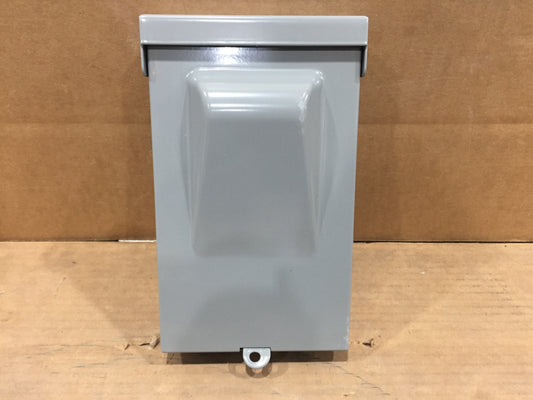

NEMA 3R is the industry-standard weatherproof enclosure rating for outdoor electrical equipment. A NEMA 3R enclosure protects internal components against rain, sleet, and ice formation on the exterior; the three conditions that matter most for a device mounted outside year-round.

The NEC requires outdoor AC safety switches to be installed in a weatherproof enclosure, and NEMA 3R is the minimum accepted rating for most residential and light commercial installations. Enclosures are available in steel or polycarbonate; both satisfy NEMA 3R requirements, though steel holds up better in high-UV or coastal environments. Always verify that the enclosure rating on the product you're purchasing matches your local building code before ordering.

Installing a disconnect switch involves 120/240V wiring, and most jurisdictions require a licensed electrician or HVAC technician to perform or inspect that work. A permit may also be required for new installations or direct replacements in some municipalities.

For contractors and electricians purchasing for client installs, NEC 440.14 requires the disconnect to be positioned within sight of the condensing unit and at a height that makes it readily accessible. DIY replacement of a like-for-like disconnect in the same location is permitted in some states. Confirm your local code before proceeding; the rules vary by jurisdiction, and the cost of a permit is far cheaper than a failed inspection.

Retail pricing for a standard residential AC disconnect switch typically varies for the part alone, with professional installation adding $150 to $250 or more depending on your market. Sourcing discount HVAC parts through a surplus supplier brings the part cost down significantly without sacrificing condition or compliance.

Surplus City acquires inventory as manufacturer overstock rather than through standard channels, which is why our pricing runs below what you'd pay at a supply house. You're getting brand-new, never-installed equipment at below-market prices. In-store pickup is available at our showroom locations in Lebanon IN, Lafayette IN, Grand Prairie TX, Greenville SC, and Lebanon PA for orders that don't require shipping.

Before installation, check that the enclosure is intact with no cracks or corrosion, confirm the amp rating matches your equipment nameplate, and verify all knockouts are undamaged. For fused models, confirm the fuse size matches manufacturer specs. Wrong fuse sizing can void equipment warranties and create a code violation.

After installation, confirm the handle operates smoothly without sticking, the enclosure door latches securely, and all wiring connections are tight with no exposed conductor. Schedule a quick visual inspection each spring before cooling season starts: look for water intrusion, corrosion on terminals, and any signs of heat discoloration inside the enclosure. Catching those early keeps a $40 part from turning into an emergency service call.
