An HVAC capacitor is a small cylindrical electrical component that stores energy and releases it on demand to help start and run the motors inside a heating and cooling system, primarily the compressor motor and the condenser fan motor. Motors require a surge of torque to reach operating speed that exceeds what a home's steady electrical supply can provide alone; the capacitor delivers that initial burst and, in the case of run capacitors, continues providing supplemental energy throughout the motor's operation. Capacitors are found in air conditioners, heat pumps, furnaces, and air handlers, and are among the most frequently replaced components in residential and light commercial HVAC systems.

The most recognizable AC capacitor symptoms are an outdoor unit that hums but fails to start, a condenser fan that won't spin, or an air conditioner that struggles to turn on and shuts off again within seconds, all indicating the motor isn't receiving the energy it needs to reach operating speed. Other indicators include warm air from supply vents despite the system running, higher-than-normal energy bills as overworked motors draw excess current, and a burning smell from the outdoor unit from overheating components. Visually, a failed capacitor may show a bulged or domed top, oily residue around its base, or cracks in the casing. Any of these physical signs confirms the capacitor needs replacement before continued operation damages the compressor or fan motor.

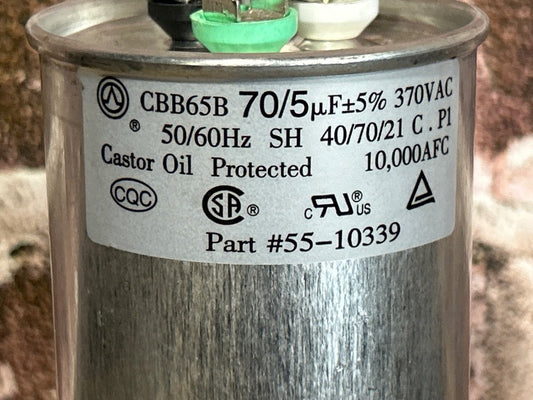

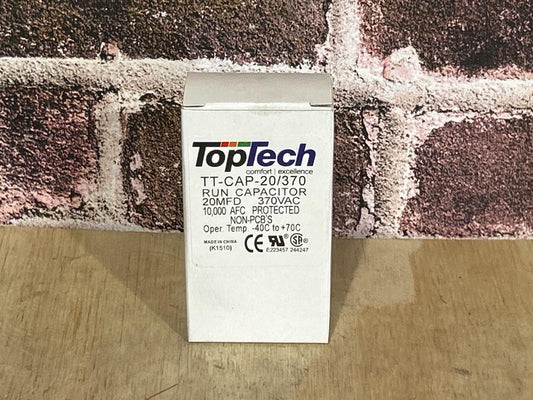

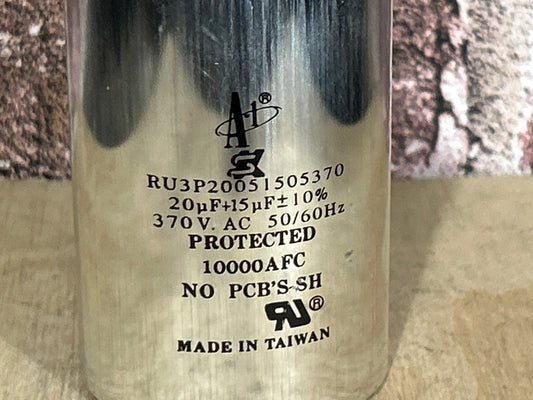

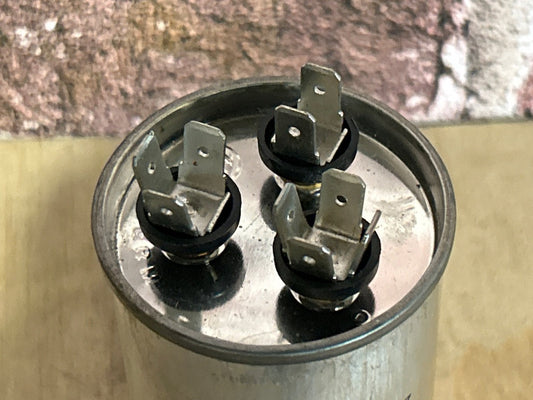

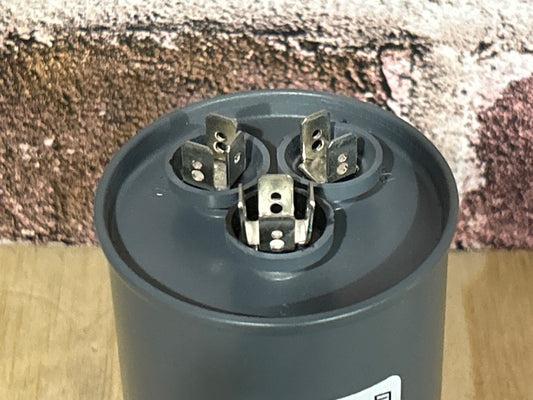

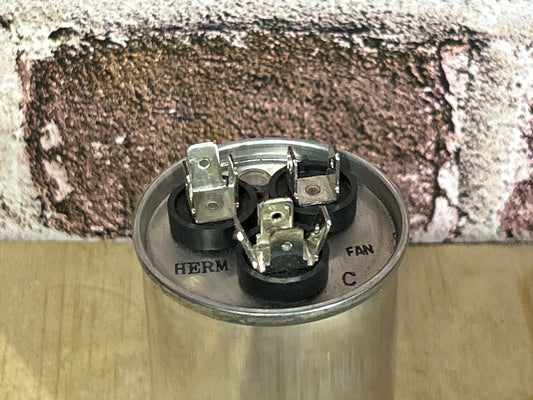

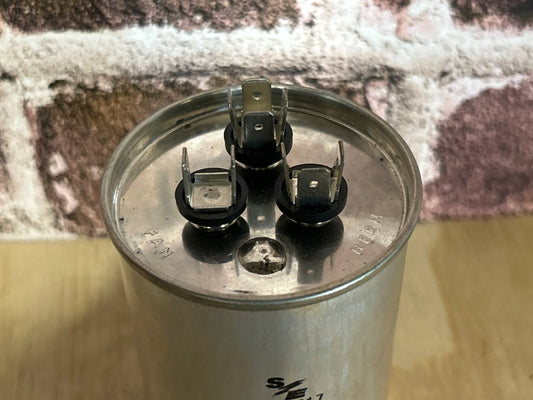

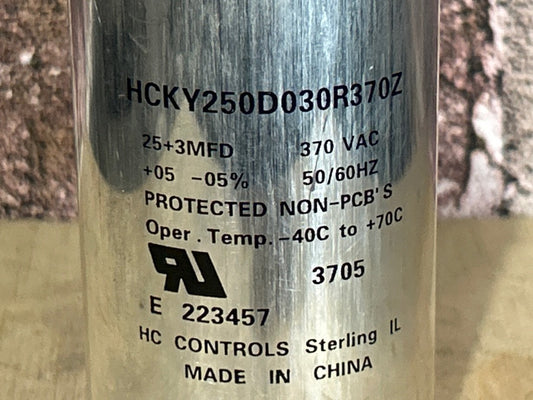

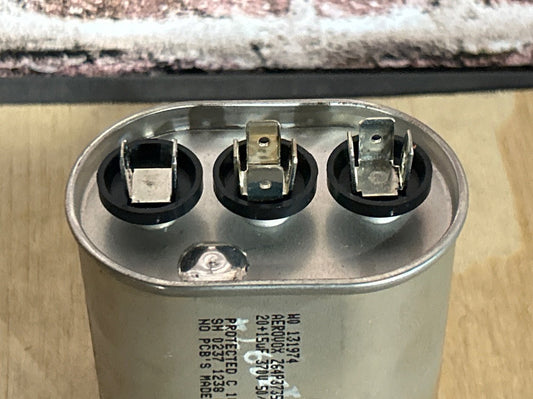

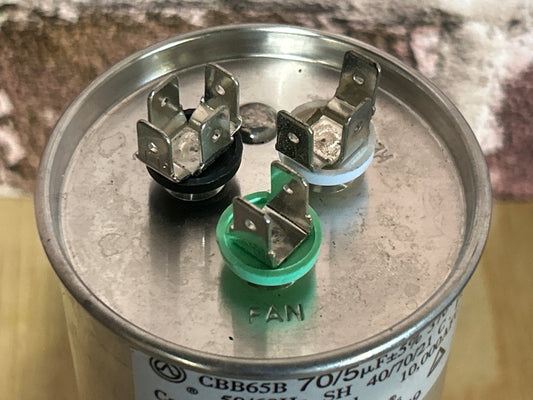

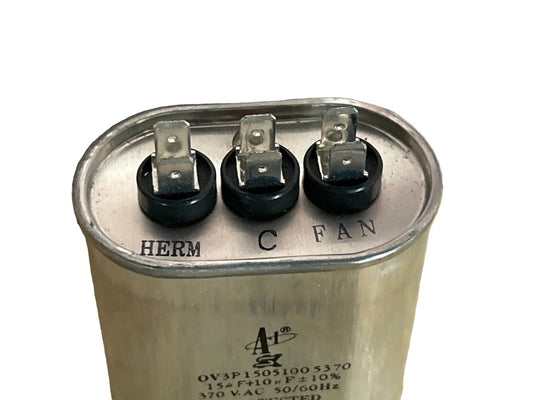

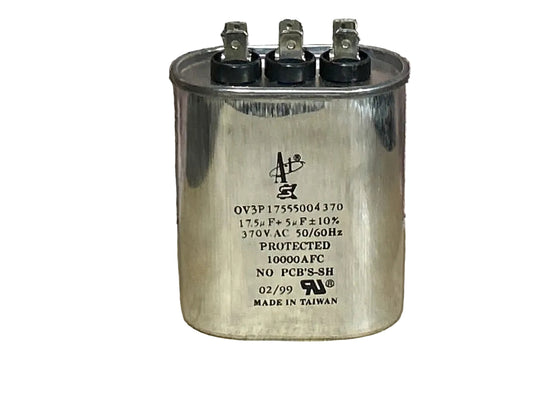

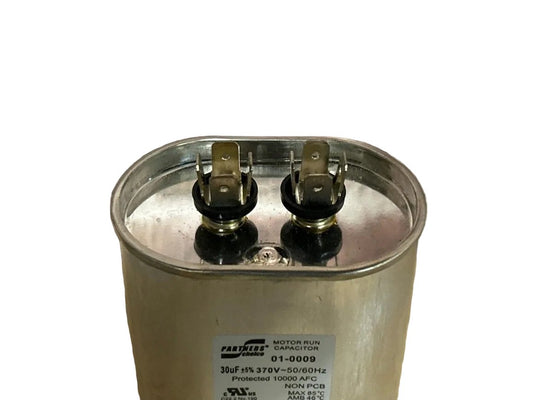

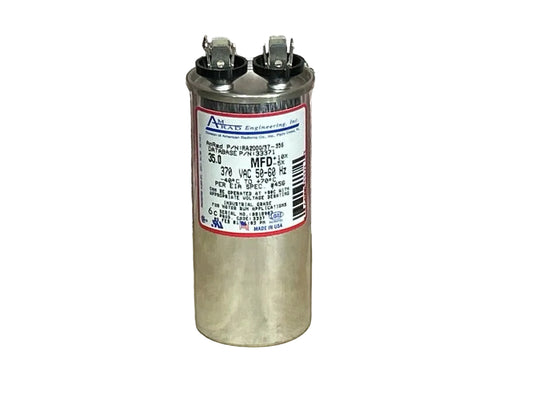

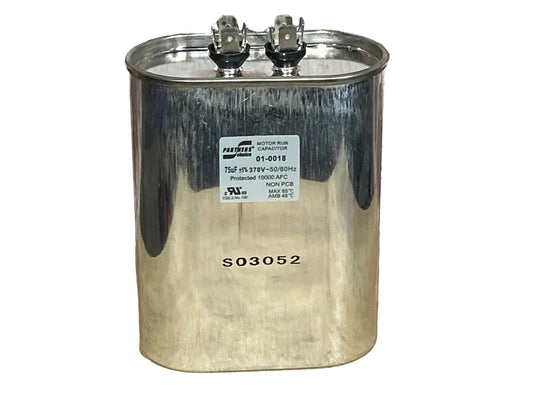

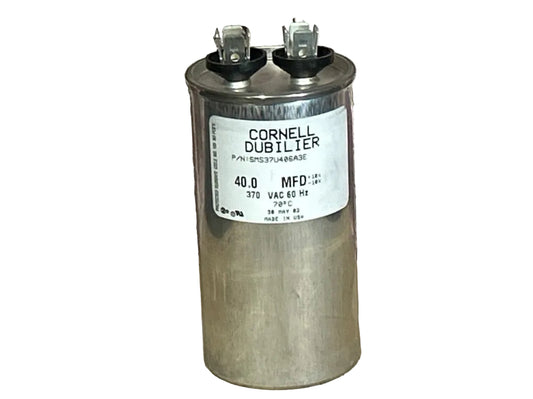

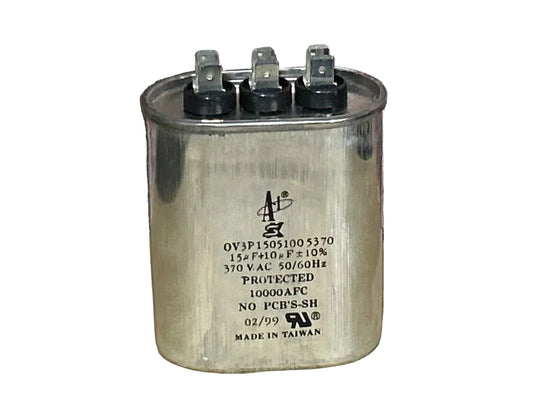

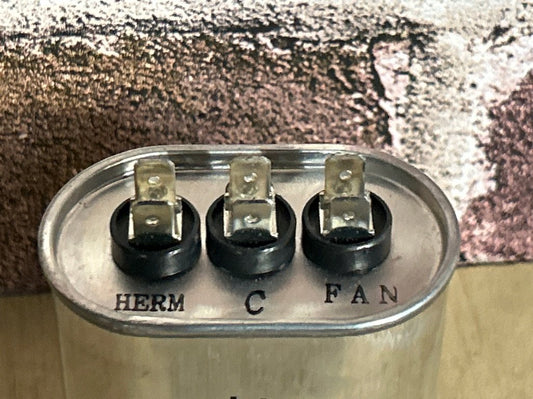

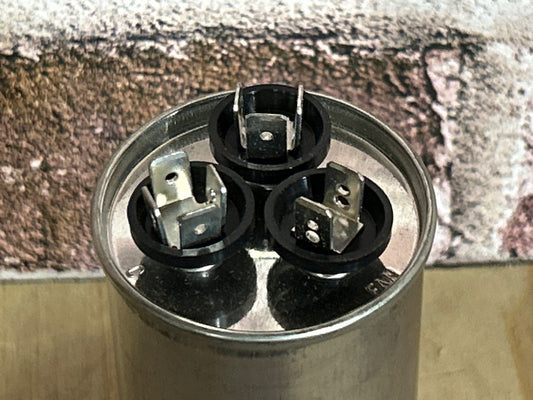

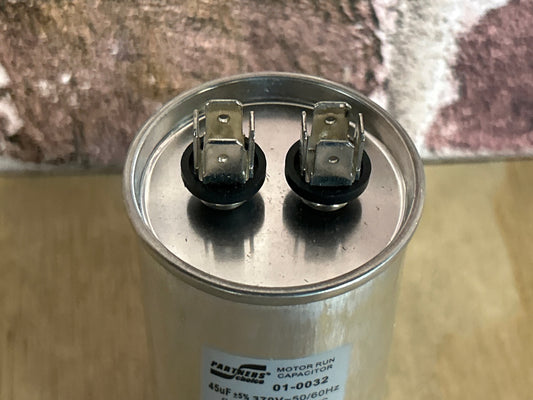

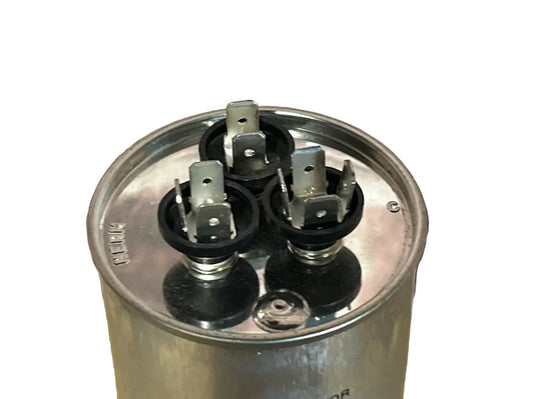

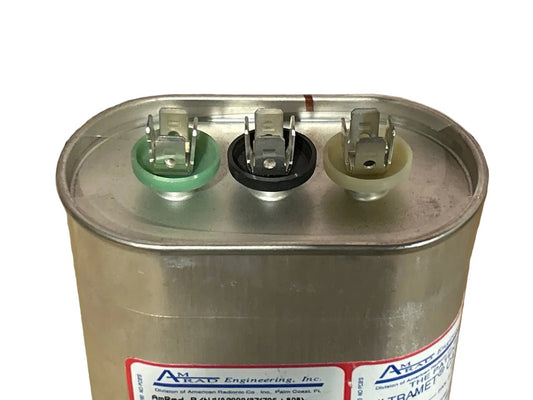

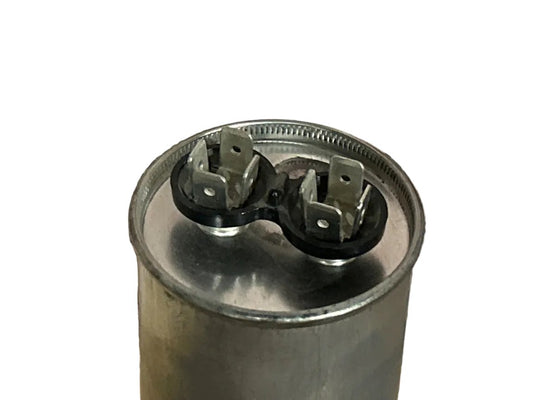

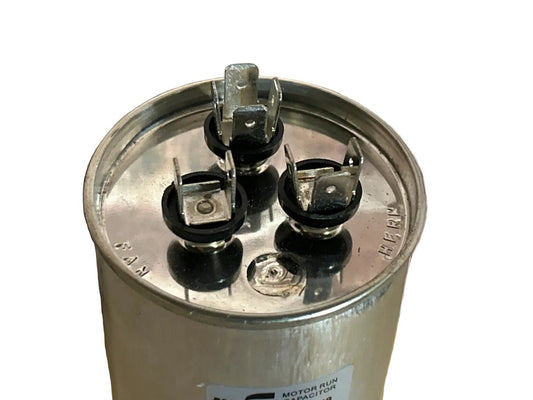

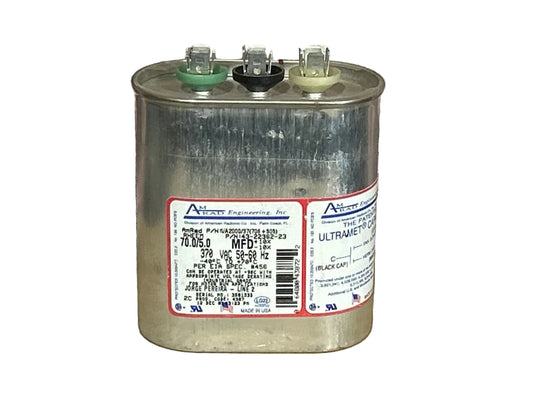

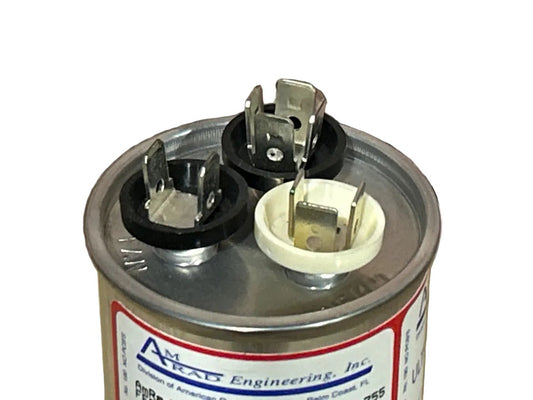

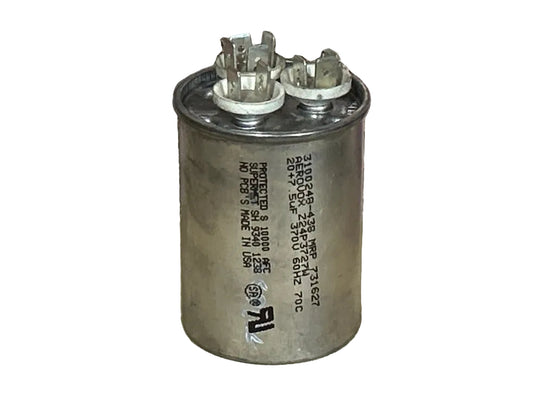

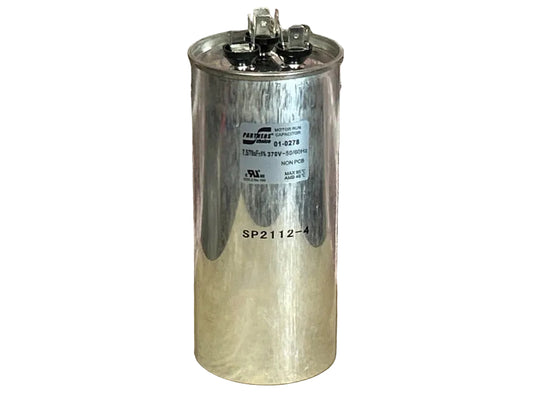

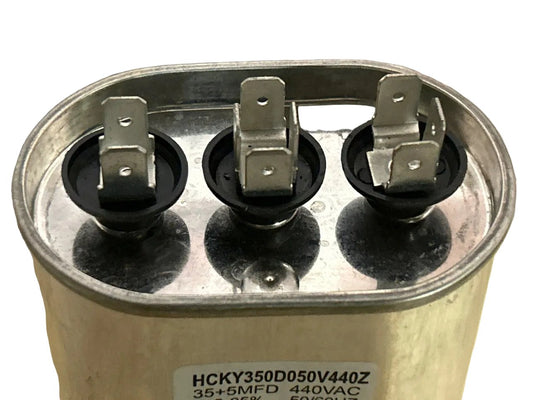

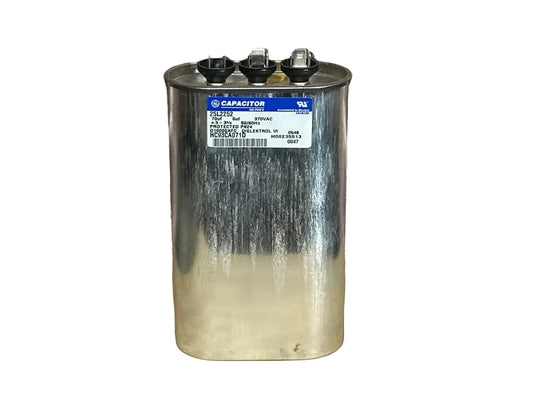

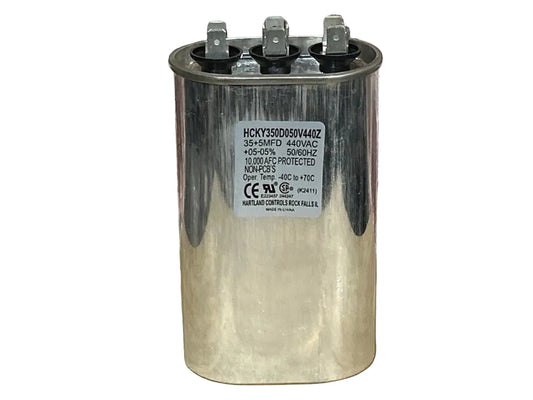

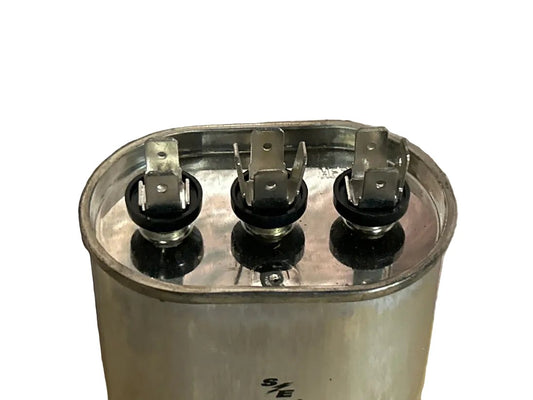

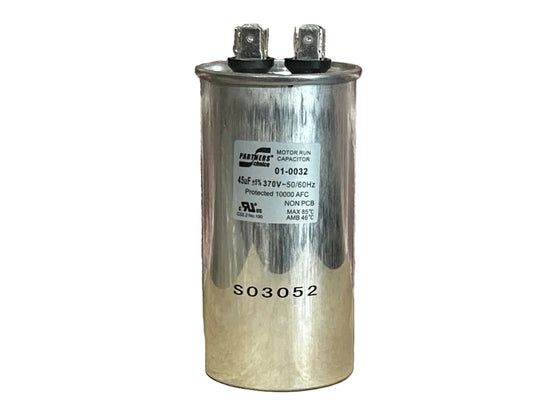

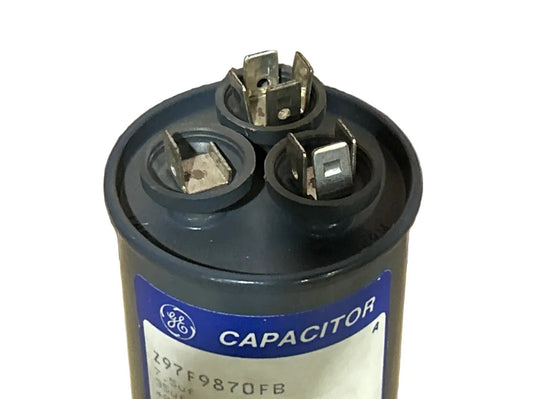

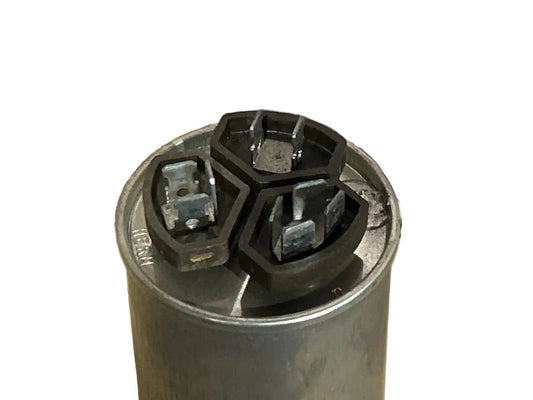

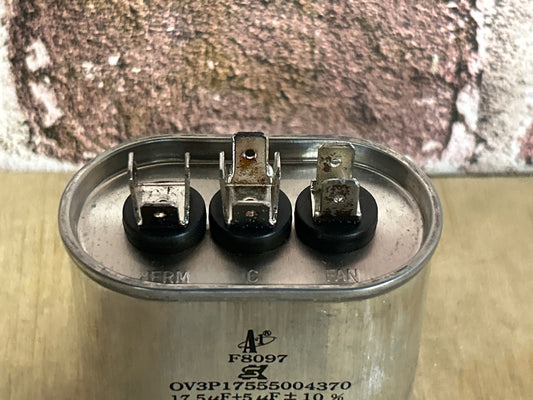

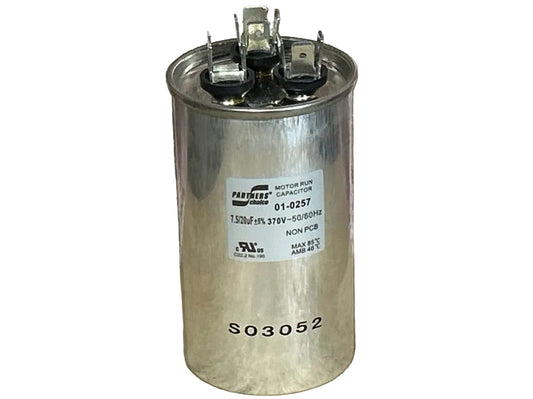

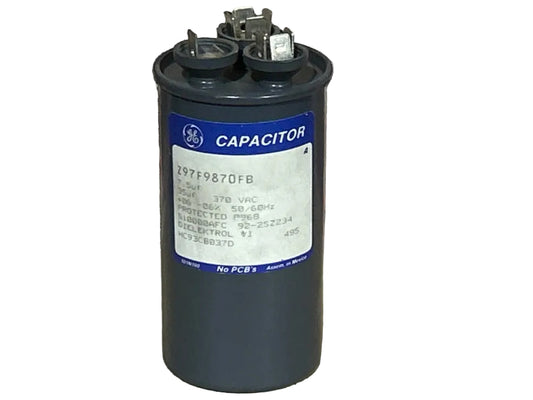

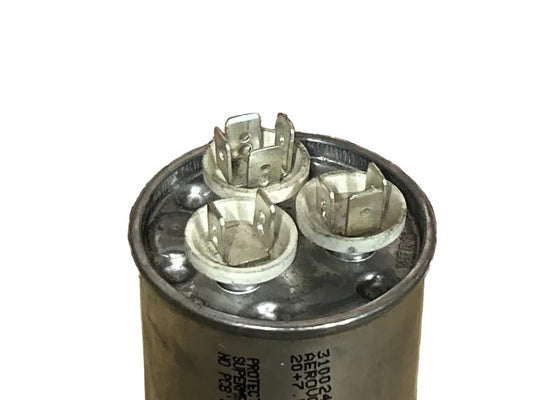

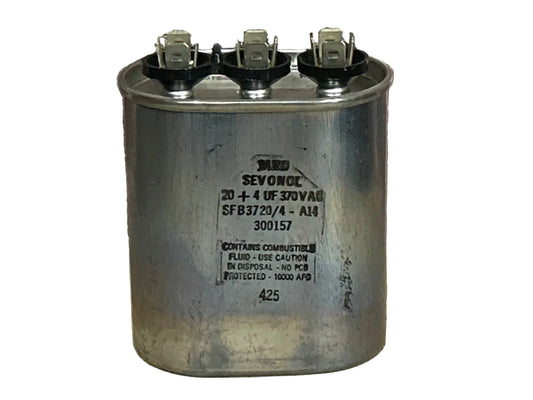

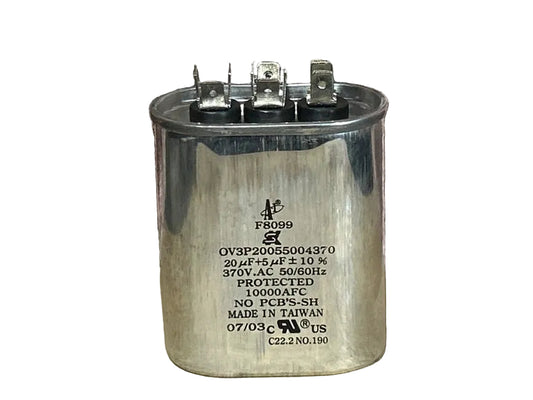

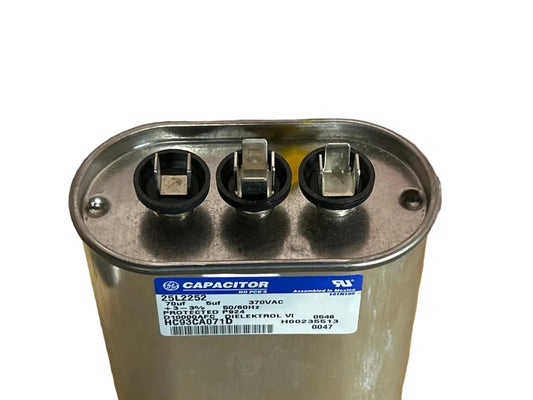

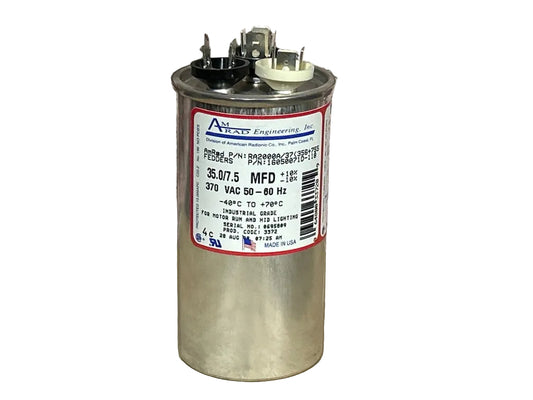

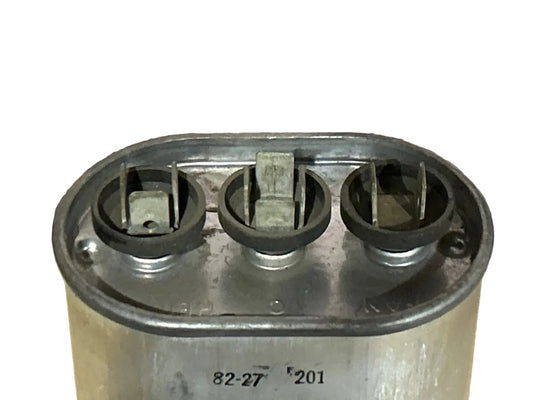

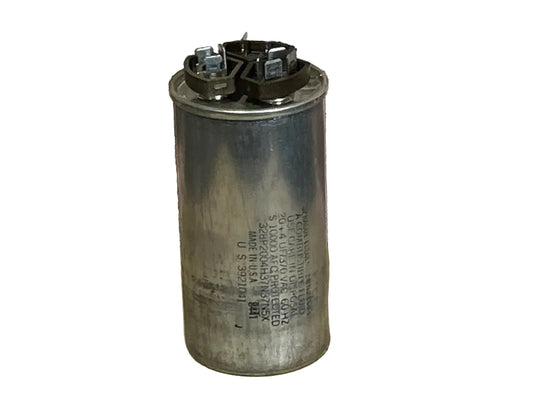

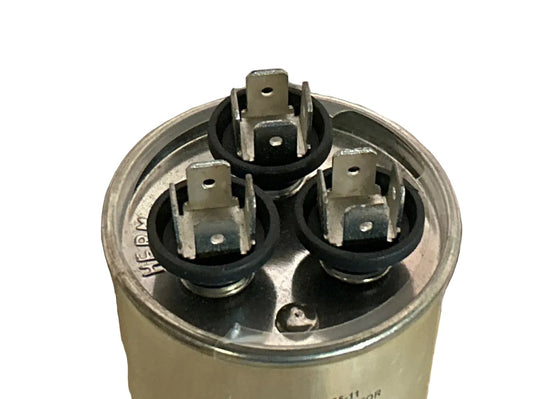

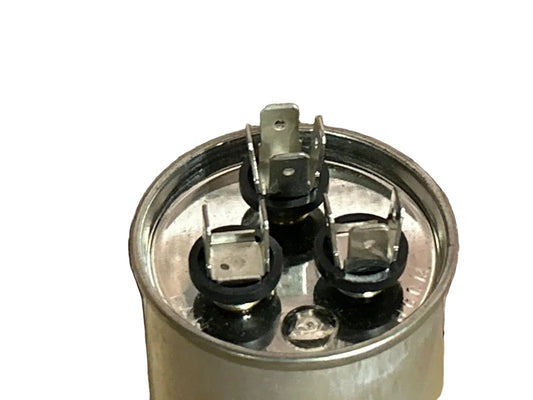

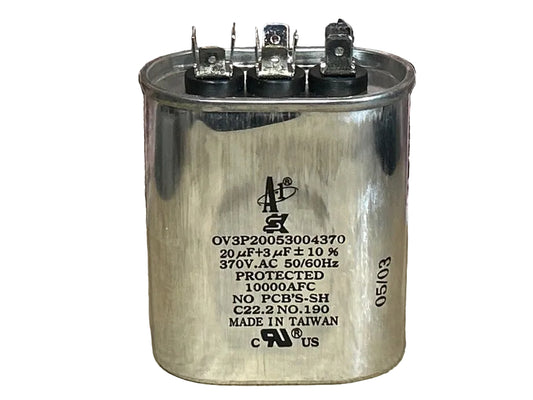

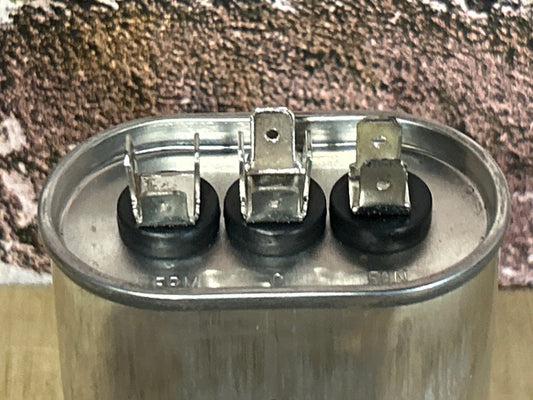

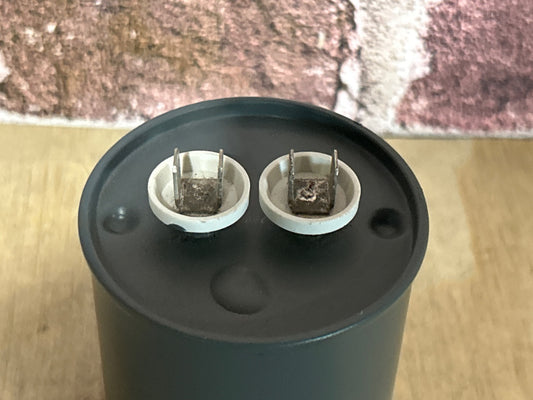

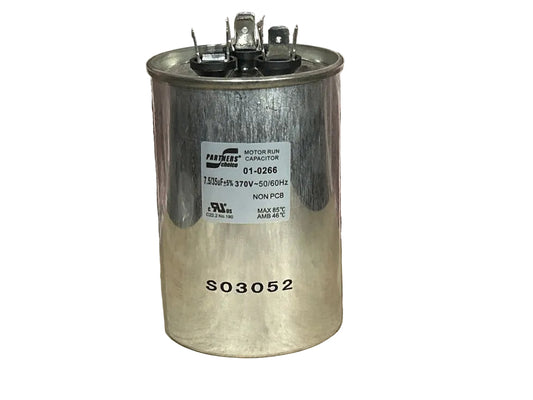

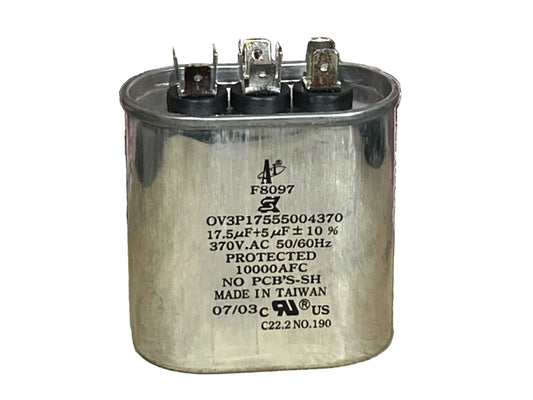

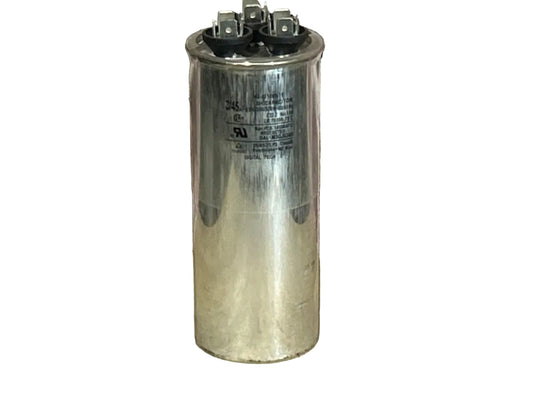

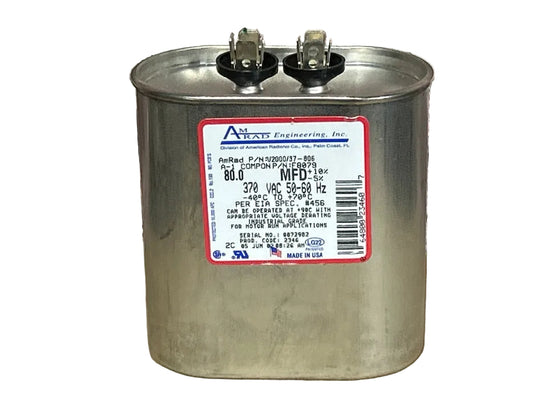

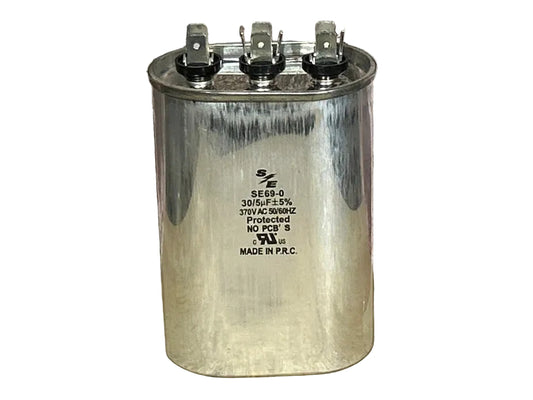

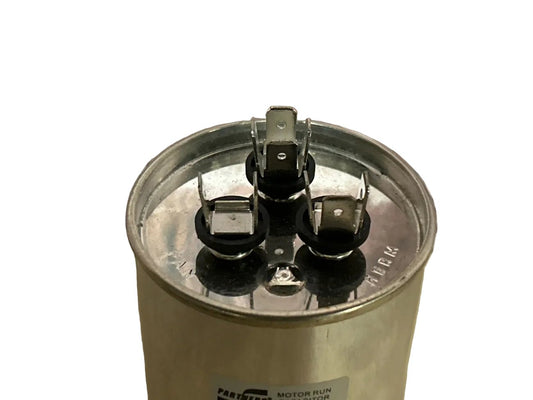

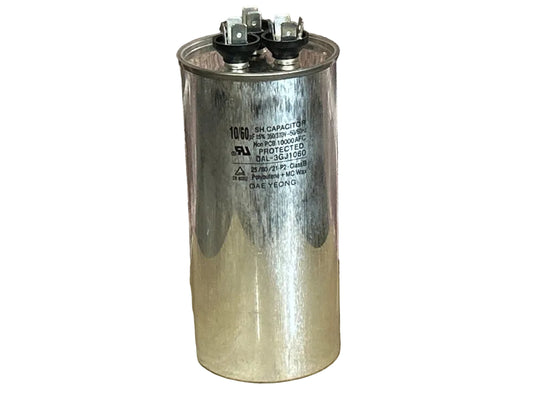

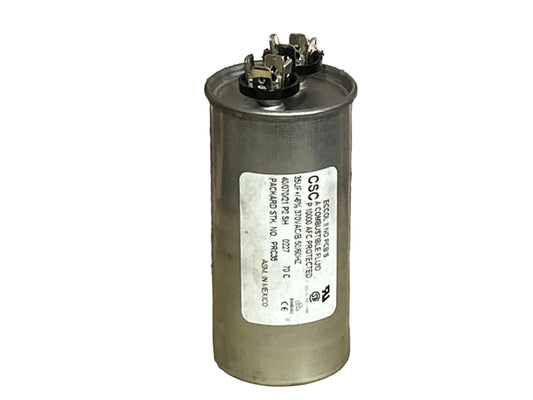

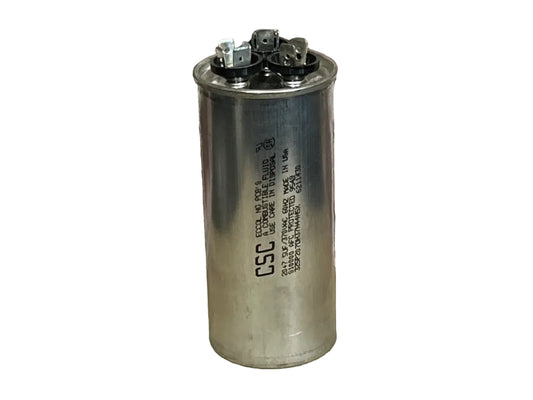

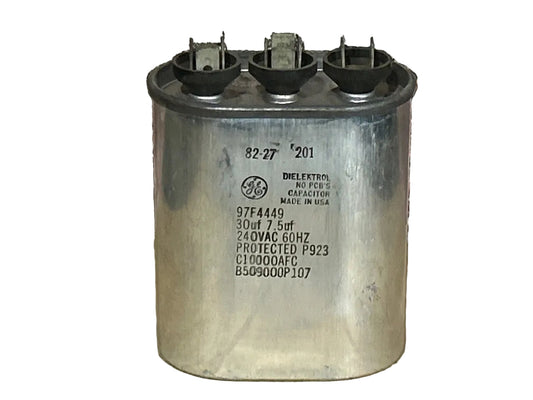

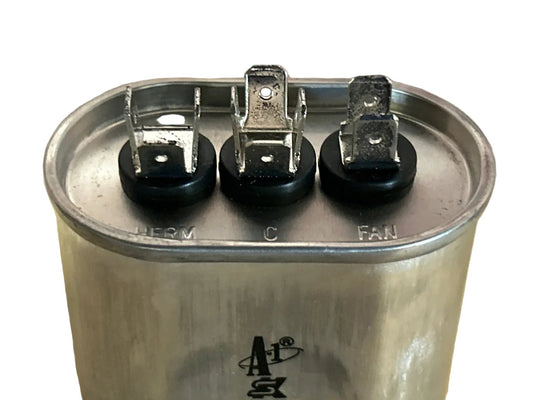

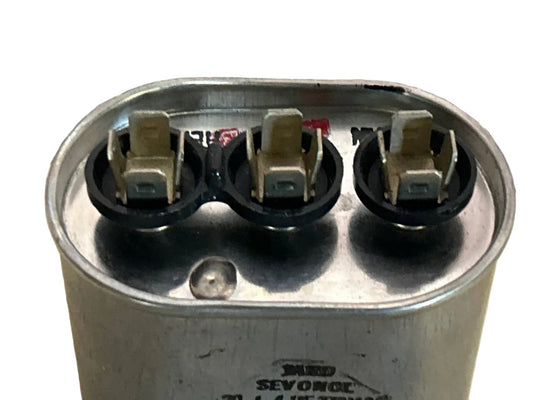

A start capacitor HVAC application delivers a short, high-voltage burst to get a motor spinning. It engages only during startup and disconnects once the motor reaches approximately 75 percent of operating speed; start capacitors are rated 70 µF and higher and are typically identified by a black plastic casing. A run capacitor stays engaged throughout the motor's operation, providing consistent supplemental energy to maintain smooth running; run capacitors are rated 3 to 70 µF, are designed for continuous duty, and are not interchangeable with start capacitors. A dual run capacitor combines both functions in one housing, serving both the compressor and the condenser fan motor from a single unit. These capacitors have three terminals labeled C (common), HERM (compressor), and FAN, and display two MFD ratings such as 45+5 or 55+5, with the larger value for the compressor and the smaller for the fan.

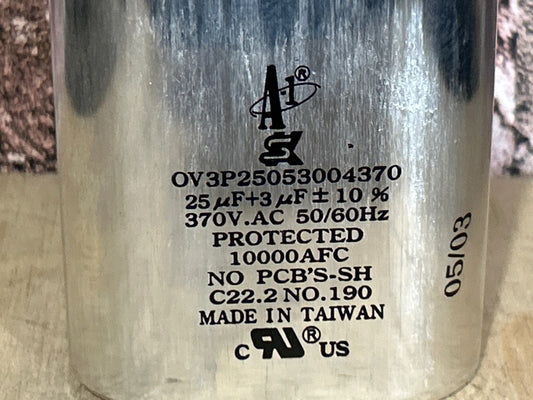

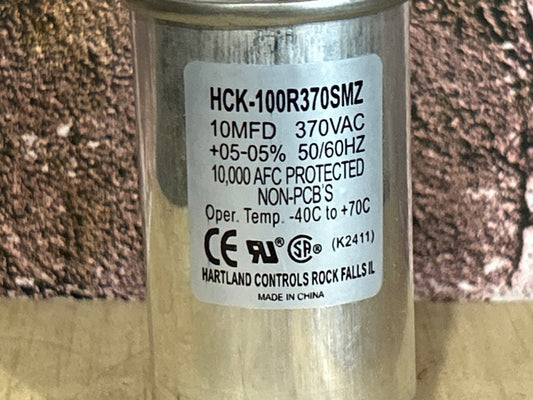

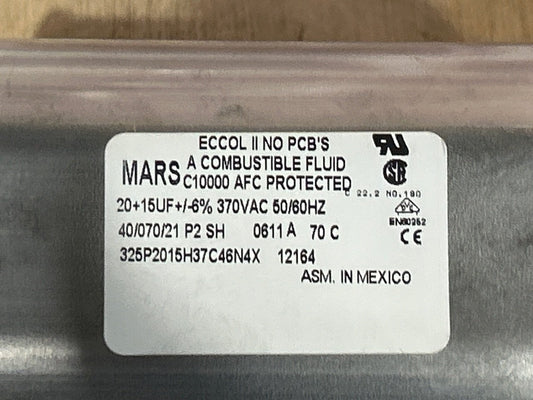

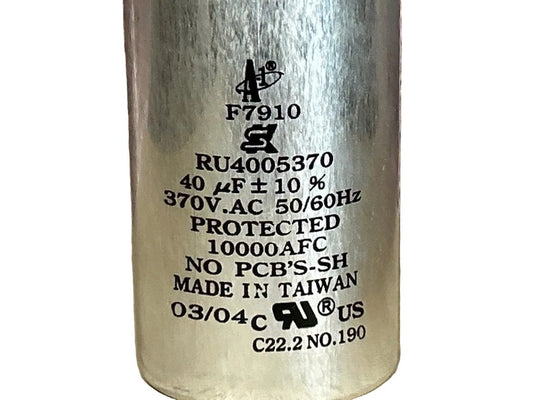

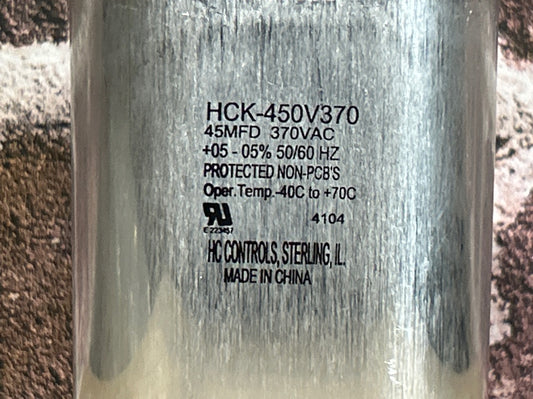

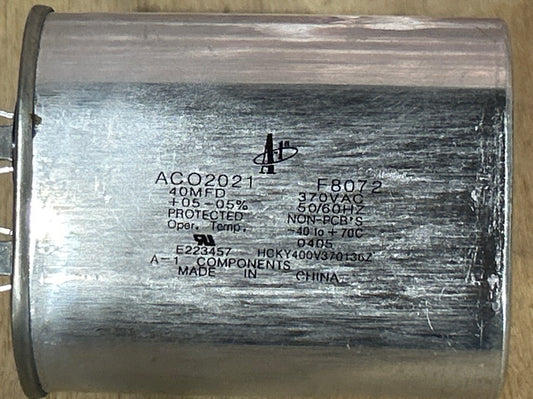

The two critical specs to match are the microfarad (HVAC capacitor MFD) rating and the voltage (VAC) rating, both printed on the capacitor's label; the MFD must match exactly (too high or too low will damage the motor), while the voltage rating can match or exceed the original, never fall below it. For a dual run capacitor, both MFD values must match the original exactly (a 45+5 µF cannot be replaced with a 40+5 µF); confirm whether the original is 370V or 440V rated and whether it is a single or dual configuration before ordering. Note that capacitors retain a high-voltage charge even after system power is shut off at the breaker. The easiest approach for most homeowners is to source the correct replacement part and have a licensed technician perform the swap; the Surplus City team at 765-482-7000 can assist with identifying the right match by make, model, or capacitor label specs.

Most HVAC capacitors last 10 to 20 years under normal conditions, though actual lifespan depends heavily on the operating environment. Capacitors in outdoor condenser units in hot climates face the most thermal stress and tend to fail on the shorter end of that range. The three most common failure causes are heat exposure (which degrades internal materials and reduces charge-holding capacity over time), power surges and lightning strikes (which can overload the component instantly), and simple age-related wear. Replacing a capacitor proactively when other motors or components are being serviced is standard practice in the trade, since a marginal capacitor that passes a quick test today may still fail within a season.

No. HVAC capacitor replacement should only be handled by a trained HVAC technician. Capacitors can retain a high-voltage electrical charge even after power to the system has been switched off at the breaker, creating a serious risk of electric shock and injury. A qualified technician has the proper training and equipment to safely discharge, test, and replace the capacitor. If you need a replacement capacitor, purchasing the correct part in advance can help streamline the repair process when your HVAC technician performs the installation.

All discount HVAC capacitors at Surplus City Liquidators are brand-new and have never been installed. No rebuilt, reconditioned, or previously used stock is sold. Surplus City sources directly from manufacturers in large quantities, which enables below-retail pricing without any compromise to product condition or rated lifespan. Capacitors arrive in original manufacturer packaging with full spec labeling intact, making it straightforward to verify MFD, voltage, and type before installation.

Capacitors are small, lightweight parts that ship nationwide. Customers can choose their preferred shipping method at checkout, where shipping costs are automatically calculated. The Surplus City team at 765-482-7000 can assist with multi-unit contractor orders or questions about inventory by specification. Information is also available online for pickup options and stock availability at specific locations.
