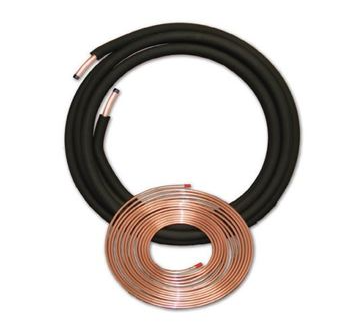

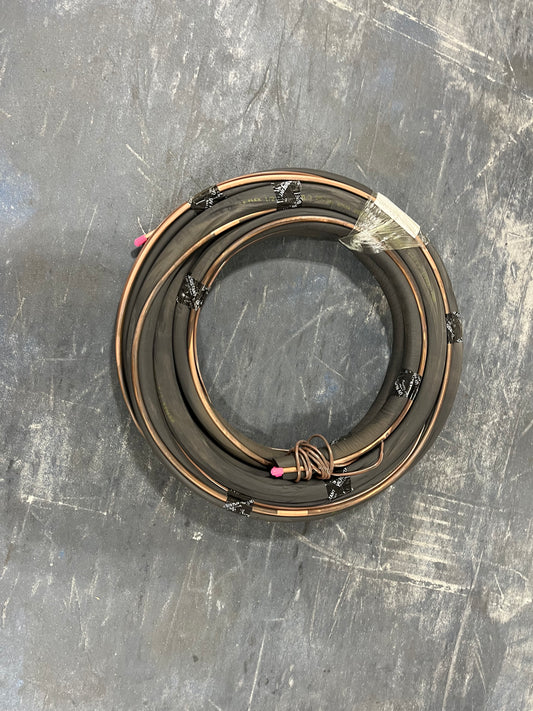

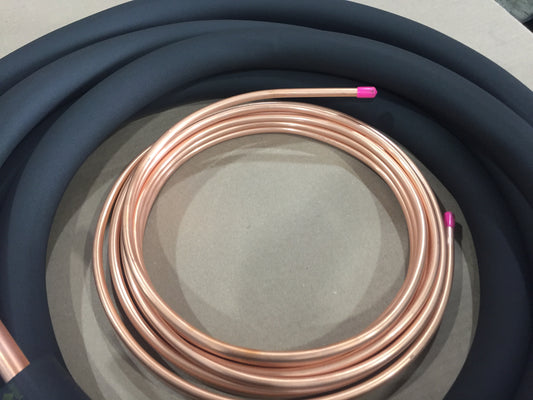

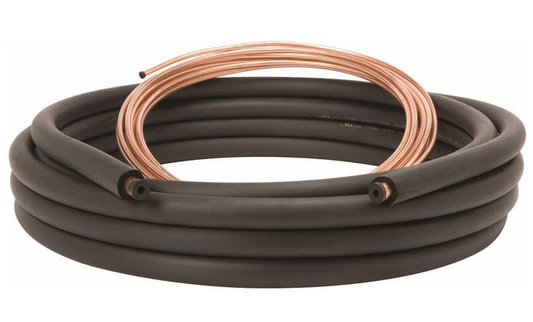

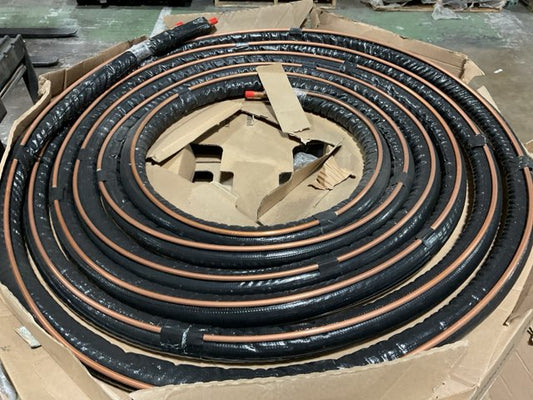

An HVAC line set is a pair of copper pipes, one liquid line and one suction line, that connects the outdoor condenser or heat pump to the indoor air handler or evaporator coil. The liquid line carries high-pressure refrigerant toward the indoor unit; the suction line returns low-pressure refrigerant gas to the compressor. Without a properly sized and sealed line set, refrigerant cannot complete the cycle, and the system will not cool or heat. That makes the line set one of the more consequential components in any split-system installation, even though it rarely gets much attention.

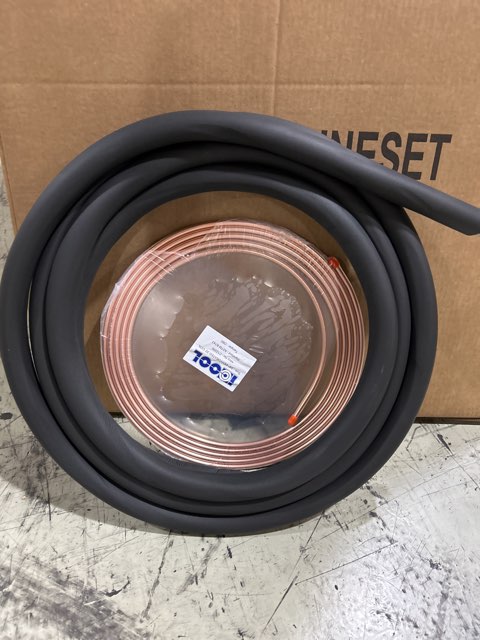

Line set sizing depends on two factors: the diameter of each pipe and the total length of the run from the outdoor unit to the indoor unit. Liquid line diameters for residential systems typically fall between 1/4" and 3/8"; suction line diameters run from 1/2" to 7/8", with larger diameters needed for higher-tonnage equipment. The right HVAC line set sizes are specified by the equipment manufacturer. Always match the line set to the spec sheets for both the indoor and outdoor units before ordering. Using the wrong diameter affects refrigerant pressure and system efficiency, and in some cases voids the manufacturer's warranty.

Every line set sold by Surplus City Liquidators is brand-new and never installed. "Surplus" refers to overstock and excess inventory purchased directly from manufacturers and distributors, not used, returned, or refurbished equipment. Surplus City buys in large quantities, bypassing middlemen, which is what makes discount copper line sets possible without any trade-off in quality or condition.

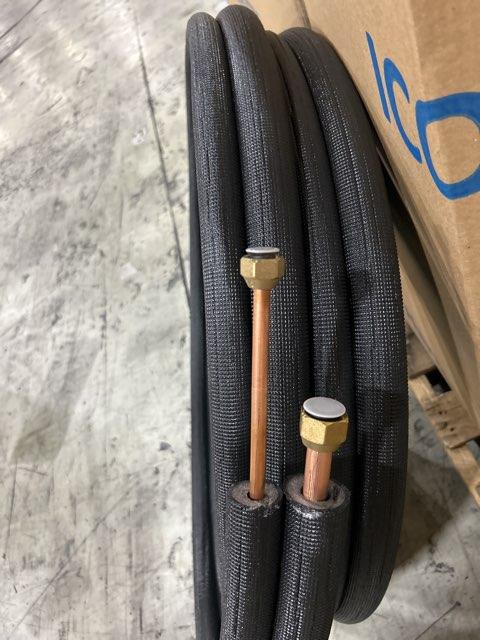

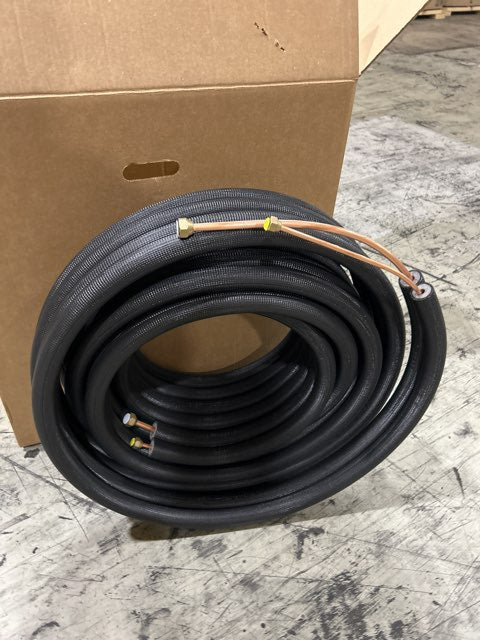

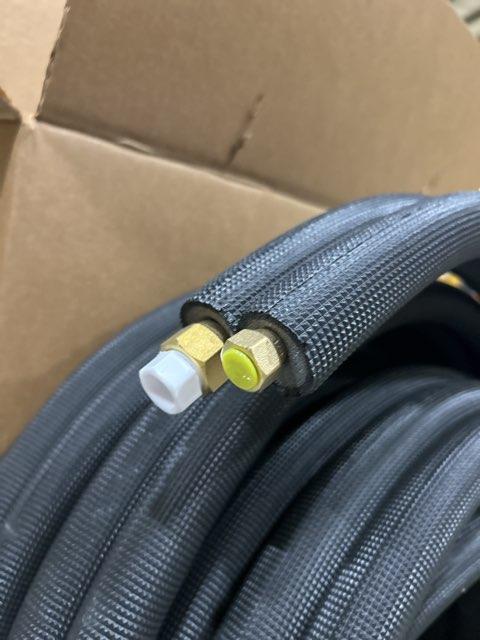

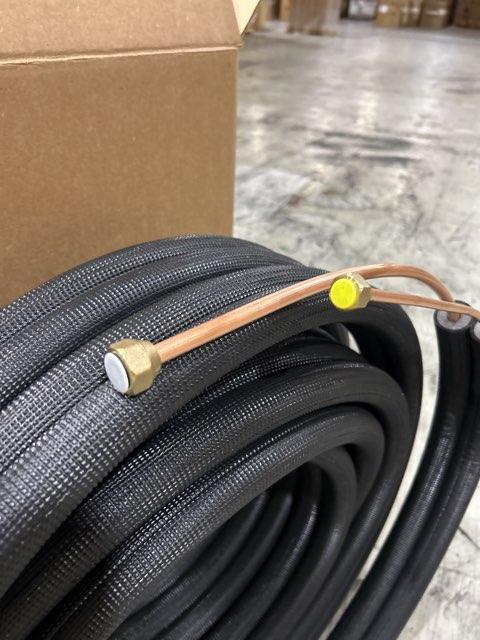

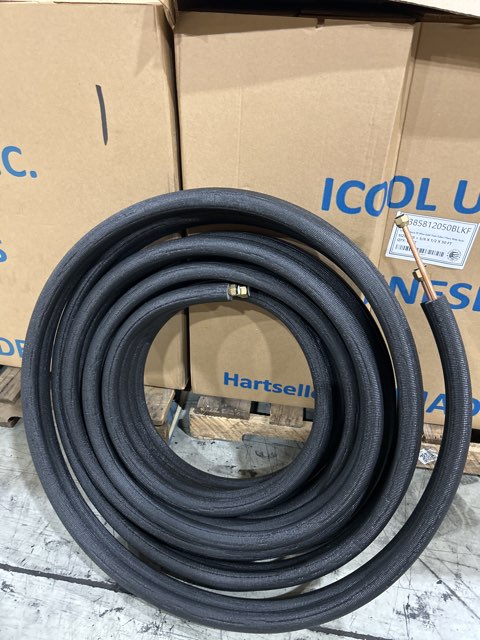

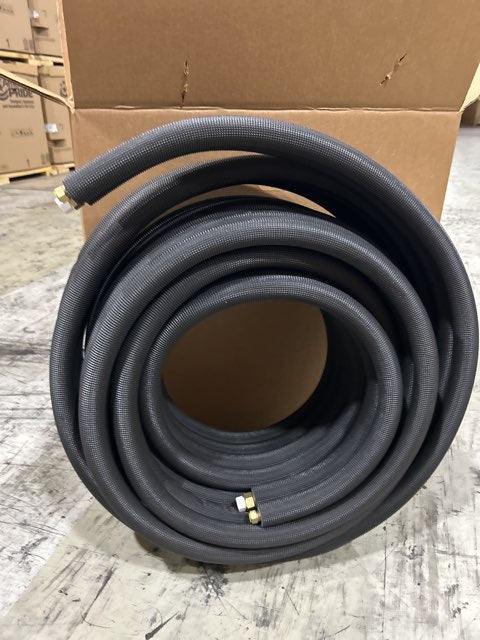

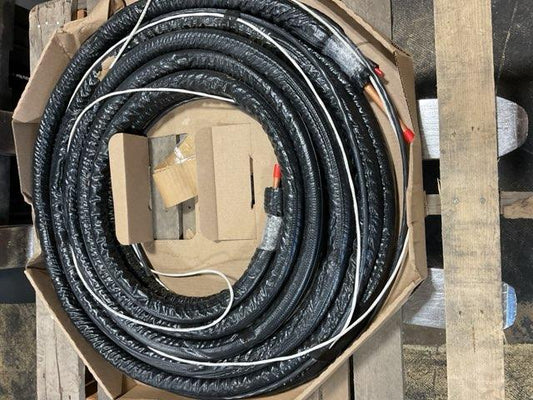

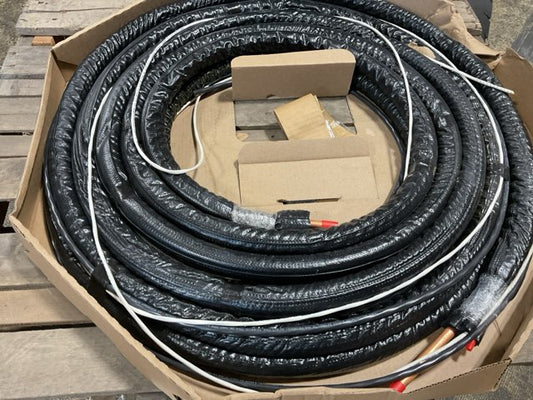

Standard central AC line sets insulate the suction line only. Mini split line sets insulate both lines because the higher pressures and tighter tolerances involved in ductless systems require it. Mini split line sets also commonly come with pre-flared ends for direct connection to indoor and outdoor heads, eliminating the need for additional brazing on-site. Using the wrong line set type can create pressure or sealing problems, so confirm which style your equipment requires before ordering. This detail is usually in the installation manual or spec sheet for the indoor head.

Not always, but often yes. The most common reason an AC refrigerant line set replacement is required is a refrigerant change: if the existing system ran on R-22, the line set is likely incompatible with modern R-410A or R-454B equipment because residual oil from R-22 systems can damage a new compressor. A new line set is also needed if the existing one is the wrong diameter for the replacement unit, shows damage or signs of leaking, or doesn't meet the new equipment's run-length specifications. If the existing line set is the correct size, in good condition, and was used with a compatible refrigerant, a licensed technician can flush and reuse it. However, that assessment should happen before the new unit is installed, not after.

Yes. Copper line sets are designed to be cut to the length you need. Use a tubing cutter for a clean cut, deburr the end thoroughly, and ensure clean connections before brazing or flaring. The practical rule: buy a set that is at least as long as your run, with a small buffer. You can always shorten a line set; you cannot extend one. Buying long and cutting to length is standard practice.

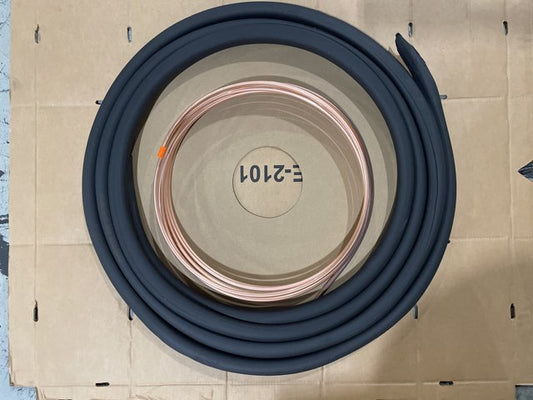

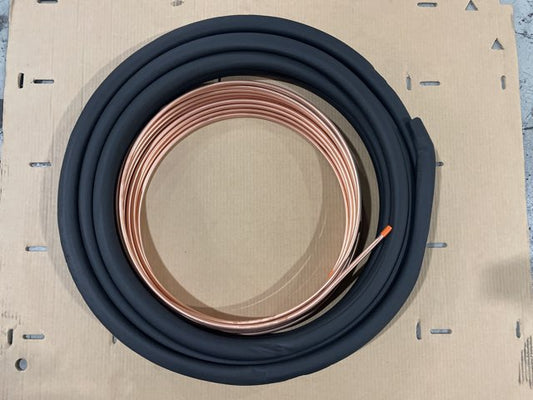

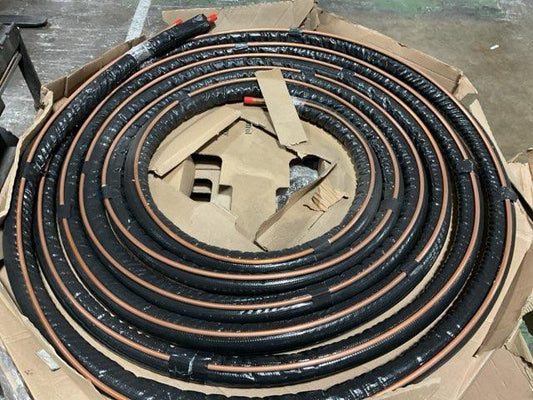

Standard residential copper line sets come in 25-foot, 30-foot, and 50-foot lengths, which cover the majority of residential and light commercial installations. Surplus City carries a range of lengths; available stock varies, so check current listings or contact a showroom directly if you need something specific. One thing worth noting for longer runs: installations beyond 80 feet may require additional accessories such as a crankcase heater to protect the compressor during off cycles. Always verify with the equipment's spec sheet if your run is unusually long.

Surplus dealers like Surplus City Liquidators purchase overstock directly from manufacturers in volume, which reduces per-unit costs well below retail or wholesale supply house pricing. The equipment is the same brand-new product; the difference is the supply chain, not the quality. Cheap HVAC line sets from a surplus source carry no compatibility risk that wouldn't exist with the same product at full price. This makes surplus purchasing a practical option for contractors managing material costs across multiple jobs and for homeowners sourcing their own materials before hiring an installer.
