SCL # :211663
Manufacturer Item # :7-177621-05
Alternate Part # :M0T04437

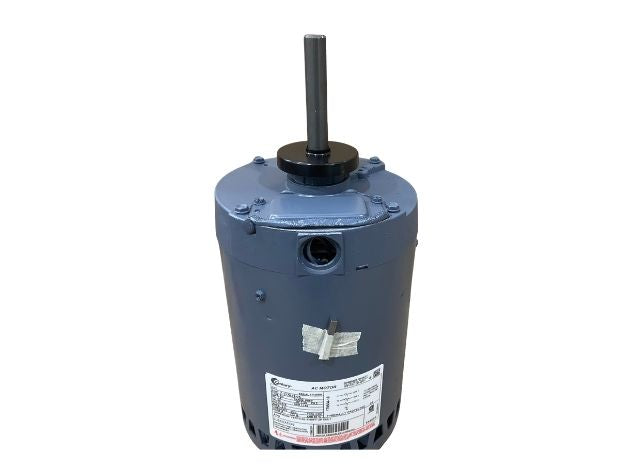

1-1/2 HP Condenser Fan Motor; Volts: 575, Hertz: 60, Phase: 3, Amps: 2.3, RPM: 1140, Single-Speed, Motor Type: PSC, Frame: 56, Bearing: Ball, Body: Open Air Over, Duty: Continuous, Rotation: Reversible, Shaft: 5/8" x 3" Keyed, Motor Length Less Shaft: 9-3/4", Overall Length: 14", Motor Diameter: 6-1/2", Mounting: Belly Band, Weight: 33 lbs, Made in Mexico, In Mfg Box
Product Details
Product Details
SCL # :211663
Manufacturer Item # :7-177621-05
Alternate Part # :M0T04437
1-1/2 HP Condenser Fan Motor; Volts: 575, Hertz: 60, Phase: 3, Amps: 2.3, RPM: 1140, Single-Speed, Motor Type: PSC, Frame: 56, Bearing: Ball, Body: Open Air Over, Duty: Continuous, Rotation: Reversible, Shaft: 5/8" x 3" Keyed, Motor Length Less Shaft: 9-3/4", Overall Length: 14", Motor Diameter: 6-1/2", Mounting: Belly Band, Weight: 33 lbs, Made in Mexico, In Mfg Box
Specifications
Specifications
Cabinet Size:6
Circuit Phase:3
Circuit Voltage:575
Maximum Hertz:60
Packaging:Manufacture packaging
