SCL # :224517
Manufacturer Item # :HBH018A1C40CLS

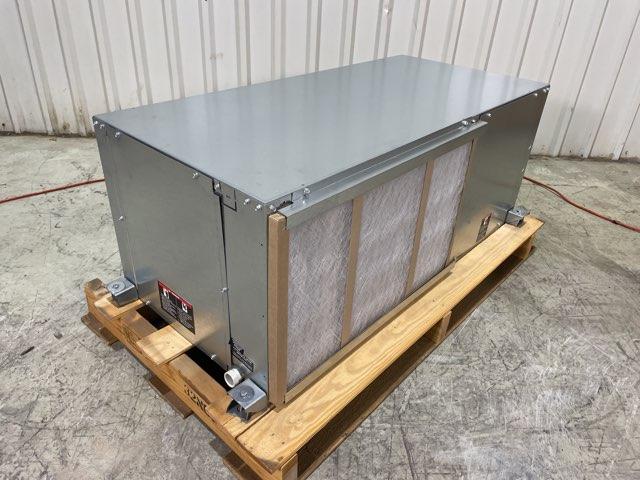

1.5 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 203-280, Hertz: 60, Phase: 1, Configuration: Horizontal, Return Air Option: Left Return, EER: 24.8, Stage: Two, Motor Type: ECM, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 43 oz, Water Loop - Cooling BTU: 19,600/Heating BTU: 22,000, Ground Water - Cooling BTU: 22,300/Heating BTU: 18,200, Ground Loop - Cooling BTU: 20,200/Heating BTU: 14,100, Connection Size: 1/2", Dimensions: 17''H x 20-1/10''W x 43-1/10''D, CFM: 600, Weight: 158 lbs
Product Details
Product Details
SCL # :224517
Manufacturer Item # :HBH018A1C40CLS
1.5 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 203-280, Hertz: 60, Phase: 1, Configuration: Horizontal, Return Air Option: Left Return, EER: 24.8, Stage: Two, Motor Type: ECM, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 43 oz, Water Loop - Cooling BTU: 19,600/Heating BTU: 22,000, Ground Water - Cooling BTU: 22,300/Heating BTU: 18,200, Ground Loop - Cooling BTU: 20,200/Heating BTU: 14,100, Connection Size: 1/2", Dimensions: 17''H x 20-1/10''W x 43-1/10''D, CFM: 600, Weight: 158 lbs
Specifications
Specifications
Cabinet Size:20.1
Capacity:1.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:No Manufacture Packaging
