SCL # :205871
Manufacturer Item # :7-151437-05
Alternate Part # :MOT13203

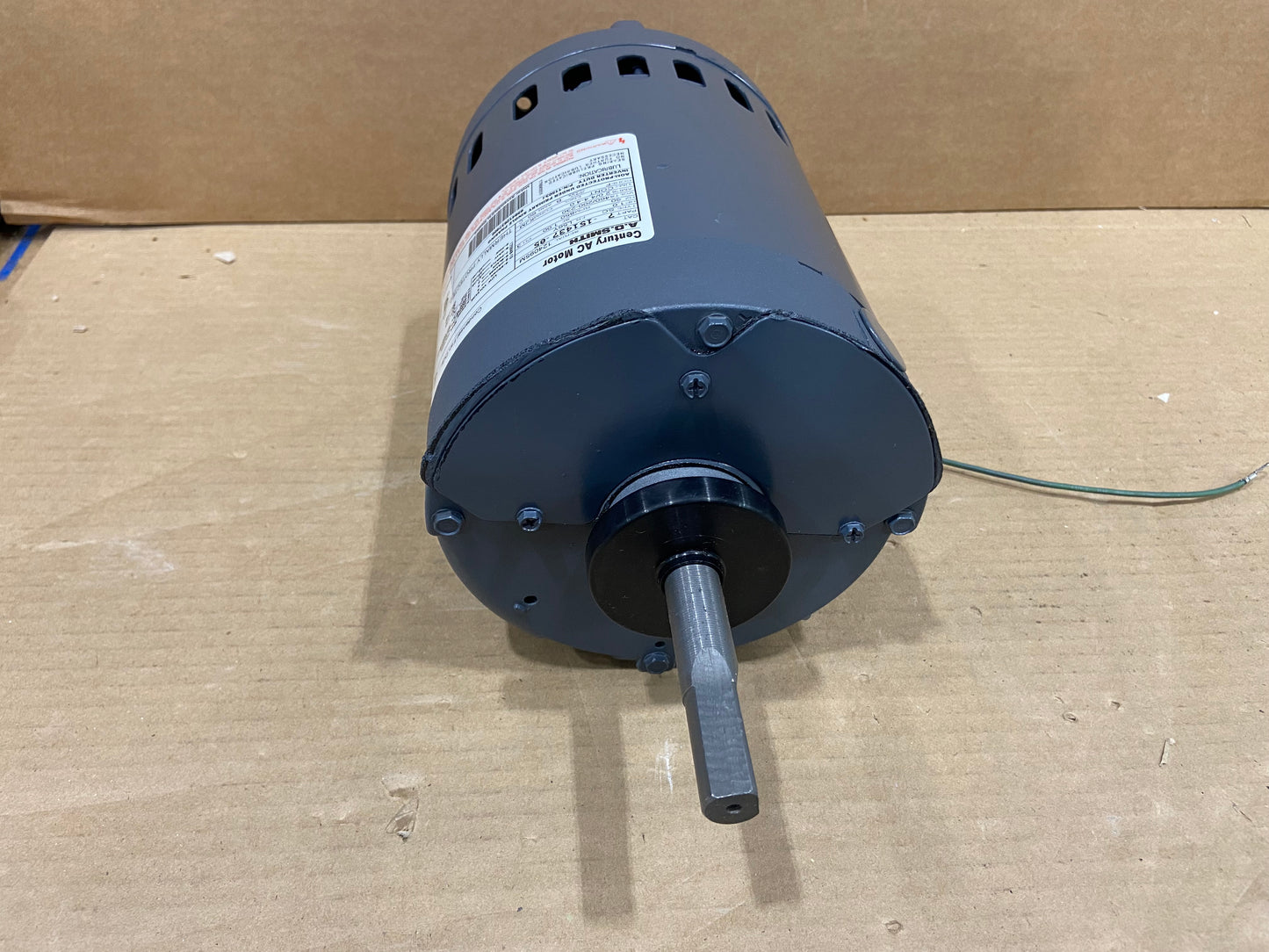

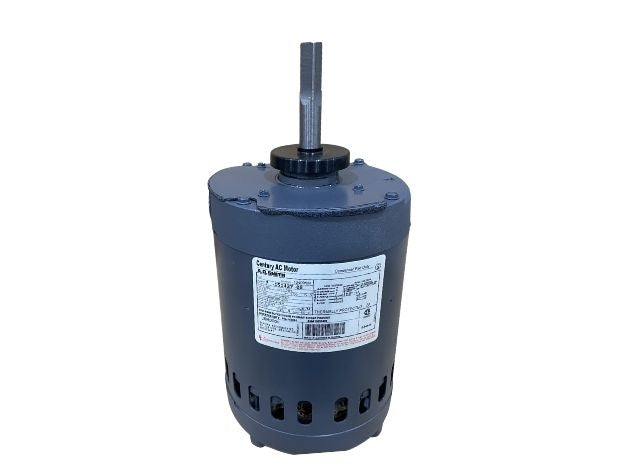

1 HP Condensor Fan Motor, Volts:200-230/460, Hertz:60, Phase:3, Amps:2/4-4.4, RPM/Speed:850/1 Speed, Motor Type:PSC, Frame:56, Bearing:Ball, Body:Open Air Over, Duty:Continuous, Rotation:Counter Clock Wise, Shaft:5/8" X 2 3/4" Double Flat, Motor Length Less Shaft:9", Overall Length:13 1/2", Motor Diameter:6 1/2", Mounting:Belly Band, Weight:30Lbs, Made In Mexico, In Mfg Box
Product Details
Product Details
SCL # :205871
Manufacturer Item # :7-151437-05
Alternate Part # :MOT13203
1 HP Condensor Fan Motor, Volts:200-230/460, Hertz:60, Phase:3, Amps:2/4-4.4, RPM/Speed:850/1 Speed, Motor Type:PSC, Frame:56, Bearing:Ball, Body:Open Air Over, Duty:Continuous, Rotation:Counter Clock Wise, Shaft:5/8" X 2 3/4" Double Flat, Motor Length Less Shaft:9", Overall Length:13 1/2", Motor Diameter:6 1/2", Mounting:Belly Band, Weight:30Lbs, Made In Mexico, In Mfg Box
Specifications
Specifications
Cabinet Size:6
Circuit Phase:3
Circuit Voltage:Other
Maximum Hertz:60
Packaging:Manufacture packaging
