SCL # :220573
Manufacturer Item # :DFH1203L000009C

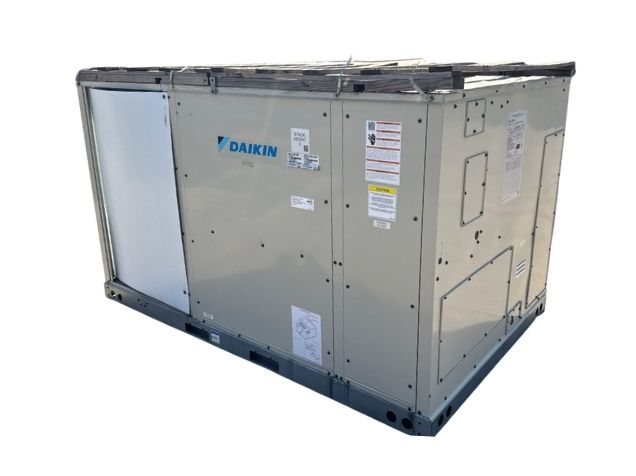

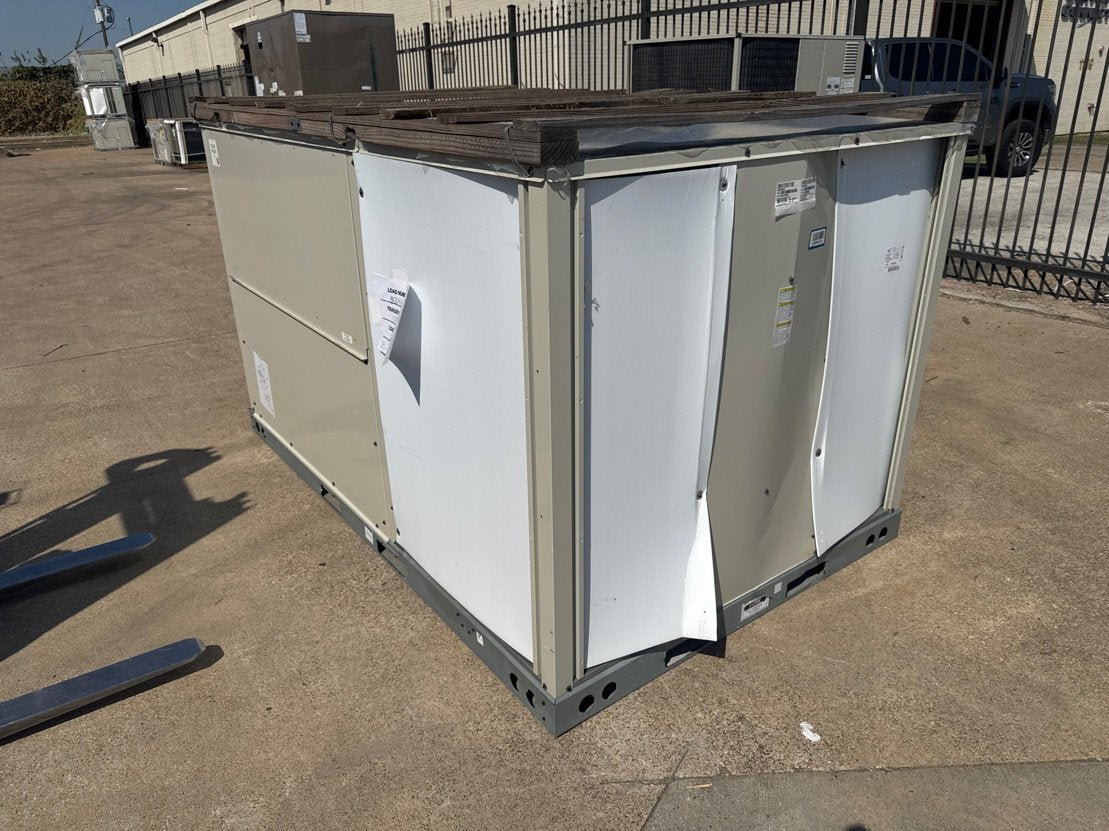

10 Ton Two Stage Convertible Packaged Heat Pump Unit, Volts: 208-230, Hertz: 60, Phase: 3, Refrigerant: R410A, Factory Charge: 154/154 oz Dual Circuit, EER: 11, CFM: 4687, Overall Dims:
54-5/8''H X 93-3/4''W X 60-3/8''D, Weight: 1154 lbs ***Compatible Heat Kit: EH*D-3M(15-45) (Not Included)***
54-5/8''H X 93-3/4''W X 60-3/8''D, Weight: 1154 lbs ***Compatible Heat Kit: EH*D-3M(15-45) (Not Included)***
Product Details
Product Details
SCL # :220573
Manufacturer Item # :DFH1203L000009C
10 Ton Two Stage Convertible Packaged Heat Pump Unit, Volts: 208-230, Hertz: 60, Phase: 3, Refrigerant: R410A, Factory Charge: 154/154 oz Dual Circuit, EER: 11, CFM: 4687, Overall Dims:
54-5/8''H X 93-3/4''W X 60-3/8''D, Weight: 1154 lbs ***Compatible Heat Kit: EH*D-3M(15-45) (Not Included)***
54-5/8''H X 93-3/4''W X 60-3/8''D, Weight: 1154 lbs ***Compatible Heat Kit: EH*D-3M(15-45) (Not Included)***
Specifications
Specifications
Application:PACKAGED HEAT PUMP UNIT
Cabinet Size:93.75
Capacity:10
Circuit Phase:3
Circuit Voltage:208-230
Maximum Hertz:60
Stage:2
