SCL # :216858
Manufacturer Item # :S1-02424504700
Alternate Part # :5KCP39JGN168S

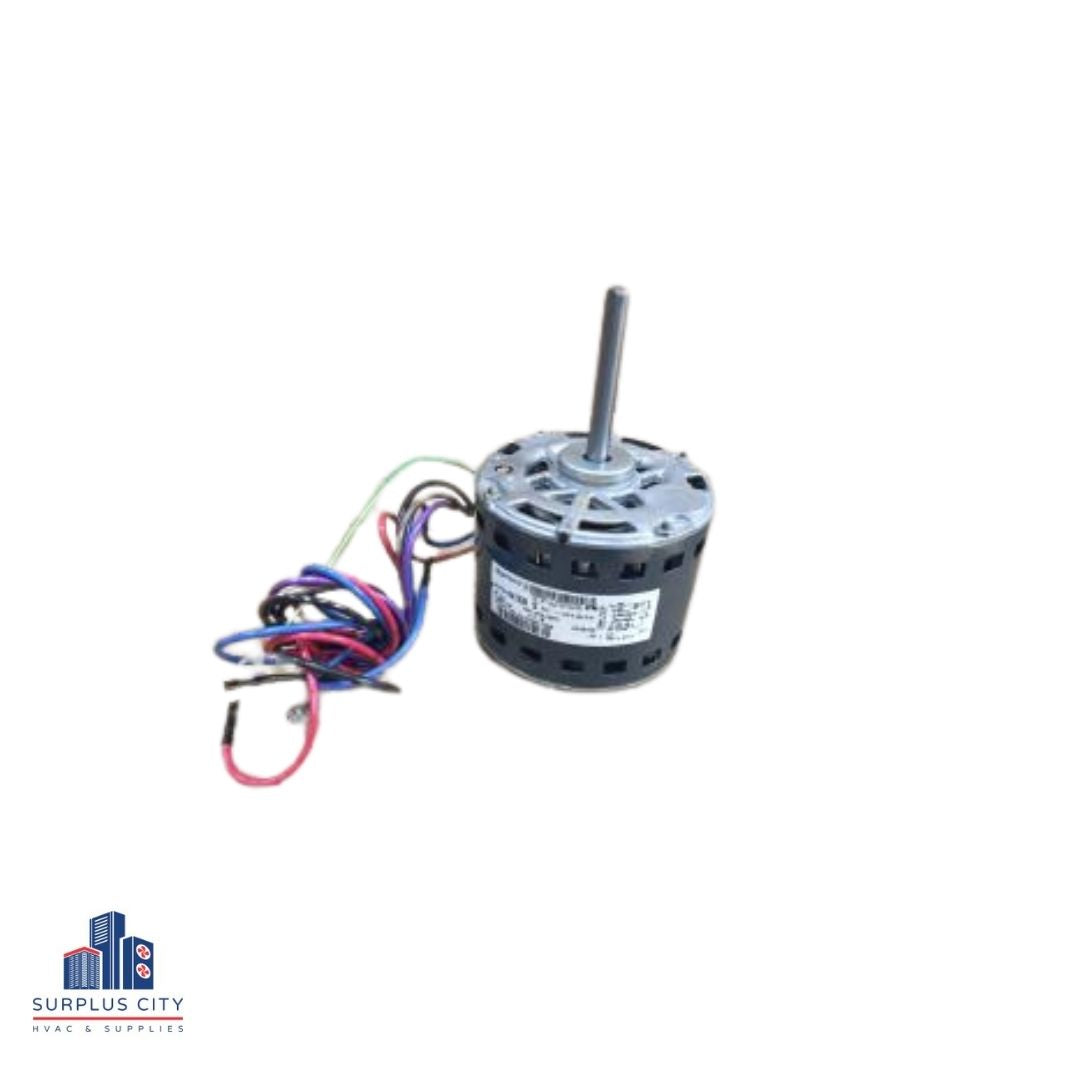

1/3 Hp Blower Motor; 208-230V, 60Hz, 1 Phase, 1075 Rpm, 3 Speed, 2.10 Amps, Motor Type: Psc, Frame:
48Y, Bearing: Sleeve, Body: Totally Enclosed, Duty: Continuos Air Over, Rotation: Cw, Single Shaft, Motor Length Less Shaft: 5-1/2", Overall Length: 9", Motor Diameter: 5-1/2", Weight: 12Lbs, Mfg Box, Made In Mexico
48Y, Bearing: Sleeve, Body: Totally Enclosed, Duty: Continuos Air Over, Rotation: Cw, Single Shaft, Motor Length Less Shaft: 5-1/2", Overall Length: 9", Motor Diameter: 5-1/2", Weight: 12Lbs, Mfg Box, Made In Mexico
Product Details
Product Details
SCL # :216858
Manufacturer Item # :S1-02424504700
Alternate Part # :5KCP39JGN168S
1/3 Hp Blower Motor; 208-230V, 60Hz, 1 Phase, 1075 Rpm, 3 Speed, 2.10 Amps, Motor Type: Psc, Frame:
48Y, Bearing: Sleeve, Body: Totally Enclosed, Duty: Continuos Air Over, Rotation: Cw, Single Shaft, Motor Length Less Shaft: 5-1/2", Overall Length: 9", Motor Diameter: 5-1/2", Weight: 12Lbs, Mfg Box, Made In Mexico
48Y, Bearing: Sleeve, Body: Totally Enclosed, Duty: Continuos Air Over, Rotation: Cw, Single Shaft, Motor Length Less Shaft: 5-1/2", Overall Length: 9", Motor Diameter: 5-1/2", Weight: 12Lbs, Mfg Box, Made In Mexico
Specifications
Specifications
Cabinet Size:5.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:50-60
Packaging:Manufacture packaging
