SCL # :195413
Manufacturer Item # :DHMW24NCB21S

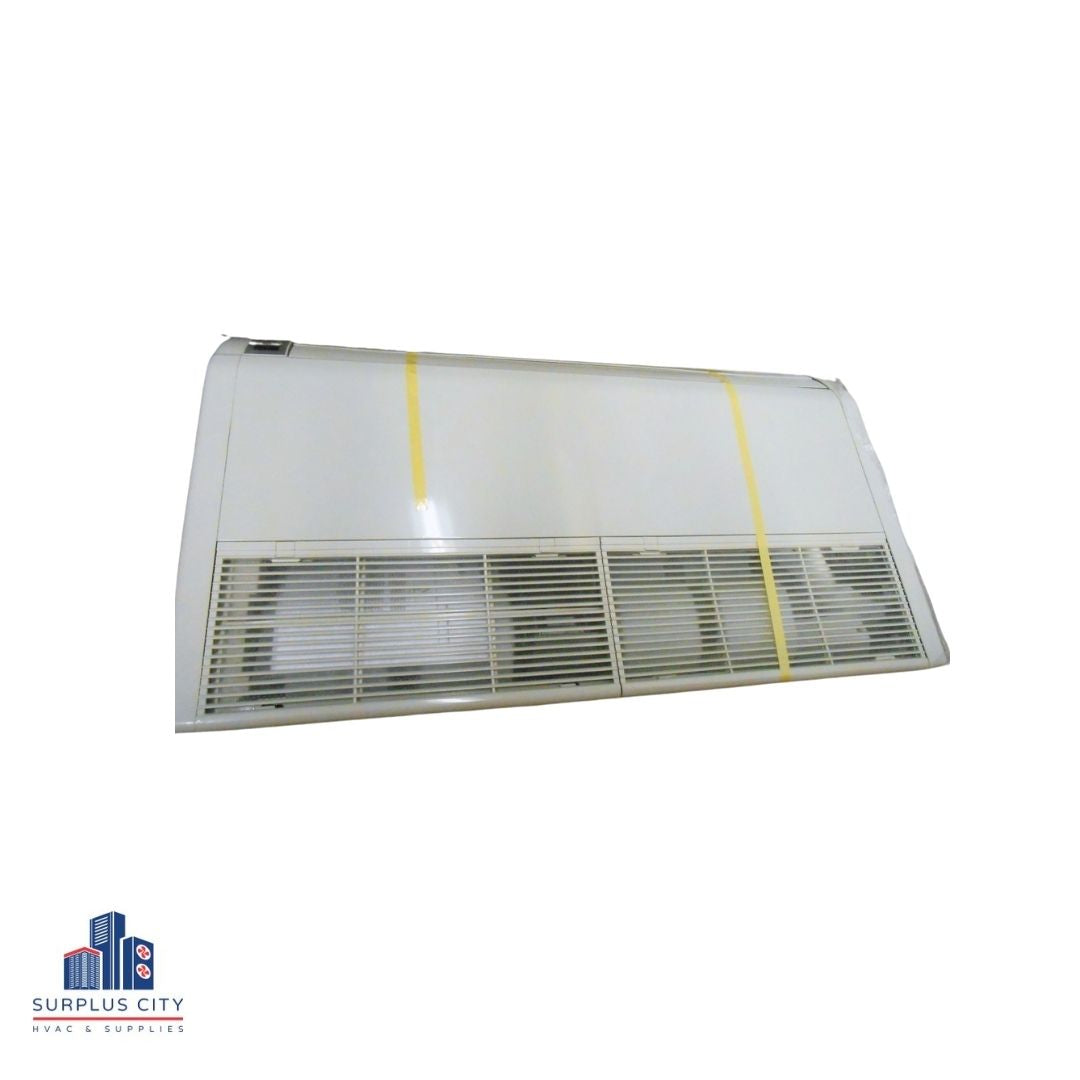

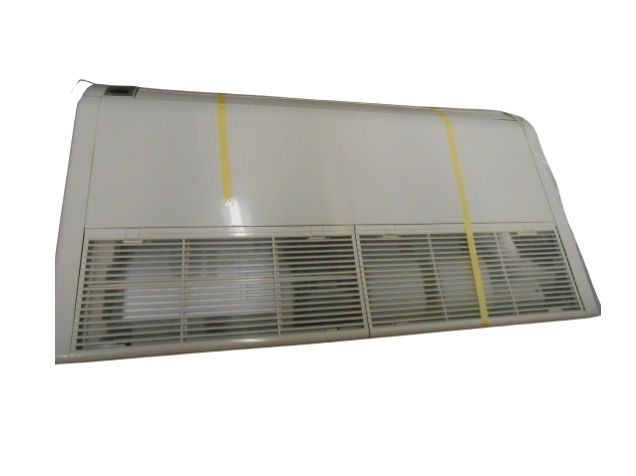

1.75 Ton Mini Split Air Handler Heat Pump with Remote, Volts: 208/230, Hertz: 60, Phase: 1, Refrigerant: R-410A, Cooling Capacity: 22,800 BTU, Heating Capacity: 27,400 BTU, Airflow: 736 CFM, Sound Pressure Level: 48 dB(A), Connection Type: Flare, Pipe Connection Liquid: 3/8", Pipe Connection Gas: 5/8", Pipe Connection Drain: 1/2", Fan Motor: 1/5 HP, Amp: 0.63, Design Pressure High: 550 PSIG, Design Pressure Low: 240 PSIG.
Product Details
Product Details
SCL # :195413
Manufacturer Item # :DHMW24NCB21S
1.75 Ton Mini Split Air Handler Heat Pump with Remote, Volts: 208/230, Hertz: 60, Phase: 1, Refrigerant: R-410A, Cooling Capacity: 22,800 BTU, Heating Capacity: 27,400 BTU, Airflow: 736 CFM, Sound Pressure Level: 48 dB(A), Connection Type: Flare, Pipe Connection Liquid: 3/8", Pipe Connection Gas: 5/8", Pipe Connection Drain: 1/2", Fan Motor: 1/5 HP, Amp: 0.63, Design Pressure High: 550 PSIG, Design Pressure Low: 240 PSIG.
Specifications
Specifications
Cabinet Size:40
Circuit Phase:1
Circuit Voltage:208-230
Packaging:Manufacture packaging
Voltage:208-240 VOLT
