SCL # :185997
Manufacturer Item # :R40639-001
Alternate Part # :F48A76A45

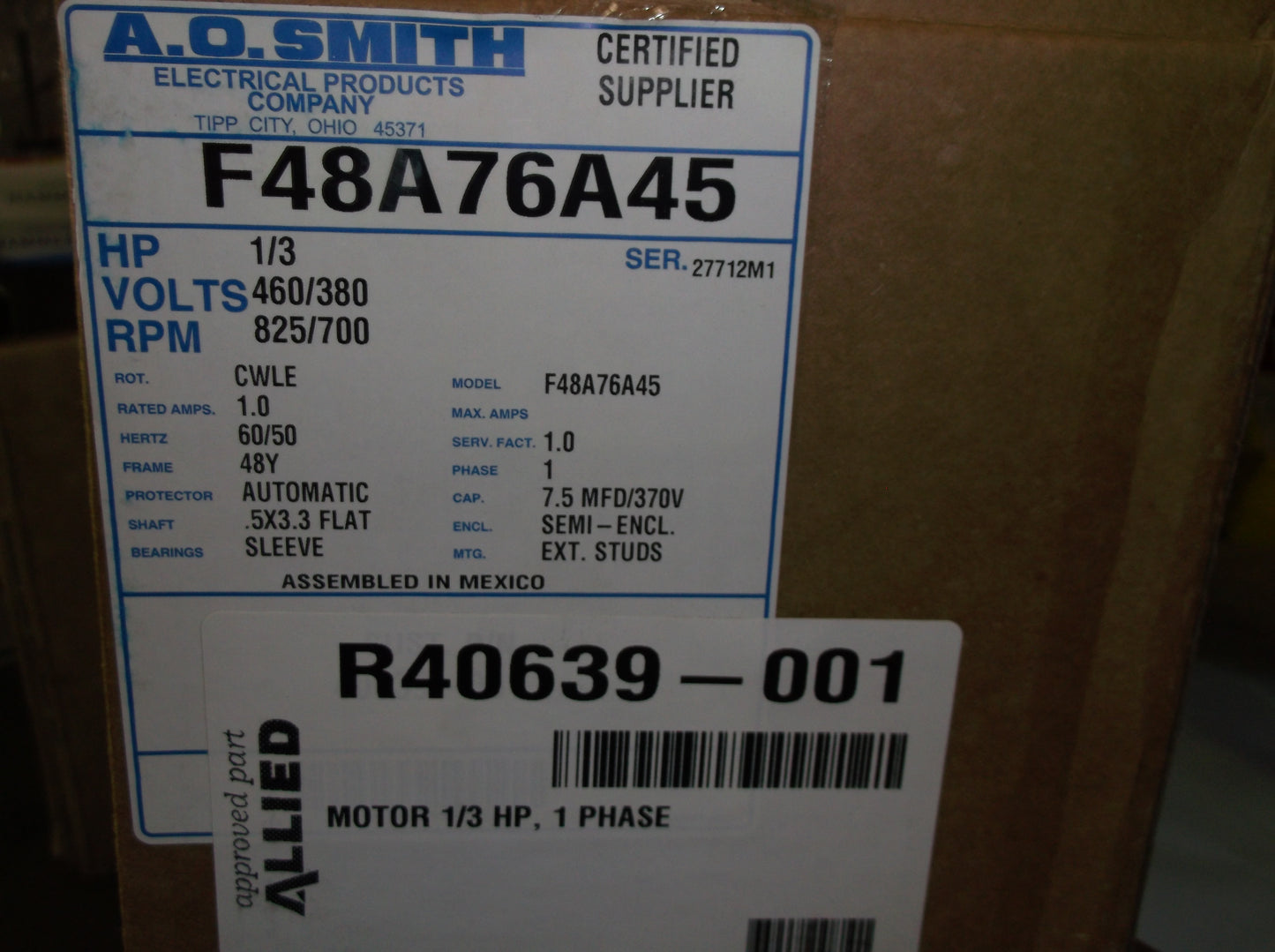

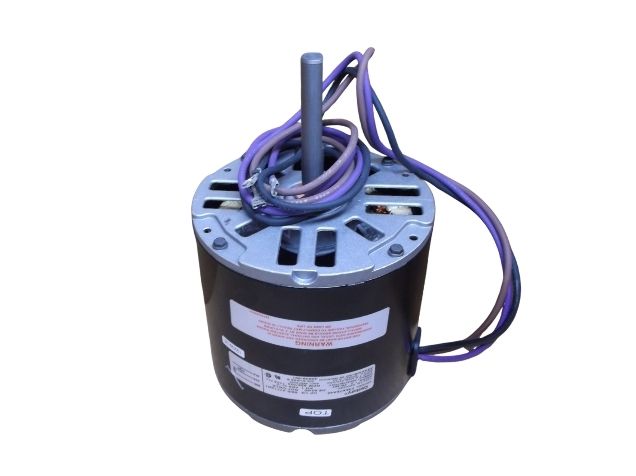

1/3HP Condenser Fan Motor, Voltage: 460-380, Phase: 1, Hertz: 60/50, Amps: 1.0, Frame: 48Y, Type:
PSC 7.5 X 370 (Not Included), Mounting: Thru Bolt, Bearing: Sleeve, Body: Open Shaft End, RPM:
825/1-Speed, Rotation: Clockwise Lead End, Shaft: 1/2" X 3-1/4", Motor Dia: 5-5/8", Motor Length Less Shaft: 5-1/4", Overall Length: 8-1/2", Weight: 13.80 Pounds, Made In Mexico, Mfg/Box
PSC 7.5 X 370 (Not Included), Mounting: Thru Bolt, Bearing: Sleeve, Body: Open Shaft End, RPM:
825/1-Speed, Rotation: Clockwise Lead End, Shaft: 1/2" X 3-1/4", Motor Dia: 5-5/8", Motor Length Less Shaft: 5-1/4", Overall Length: 8-1/2", Weight: 13.80 Pounds, Made In Mexico, Mfg/Box
Product Details
Product Details
SCL # :185997
Manufacturer Item # :R40639-001
Alternate Part # :F48A76A45
1/3HP Condenser Fan Motor, Voltage: 460-380, Phase: 1, Hertz: 60/50, Amps: 1.0, Frame: 48Y, Type:
PSC 7.5 X 370 (Not Included), Mounting: Thru Bolt, Bearing: Sleeve, Body: Open Shaft End, RPM:
825/1-Speed, Rotation: Clockwise Lead End, Shaft: 1/2" X 3-1/4", Motor Dia: 5-5/8", Motor Length Less Shaft: 5-1/4", Overall Length: 8-1/2", Weight: 13.80 Pounds, Made In Mexico, Mfg/Box
PSC 7.5 X 370 (Not Included), Mounting: Thru Bolt, Bearing: Sleeve, Body: Open Shaft End, RPM:
825/1-Speed, Rotation: Clockwise Lead End, Shaft: 1/2" X 3-1/4", Motor Dia: 5-5/8", Motor Length Less Shaft: 5-1/4", Overall Length: 8-1/2", Weight: 13.80 Pounds, Made In Mexico, Mfg/Box
Specifications
Specifications
Cabinet Size:8
Circuit Phase:1
Circuit Voltage:460
Maximum Hertz:50-60
Packaging:Manufacture packaging
