SCL # :195369
Manufacturer Item # :ZD14X14/U

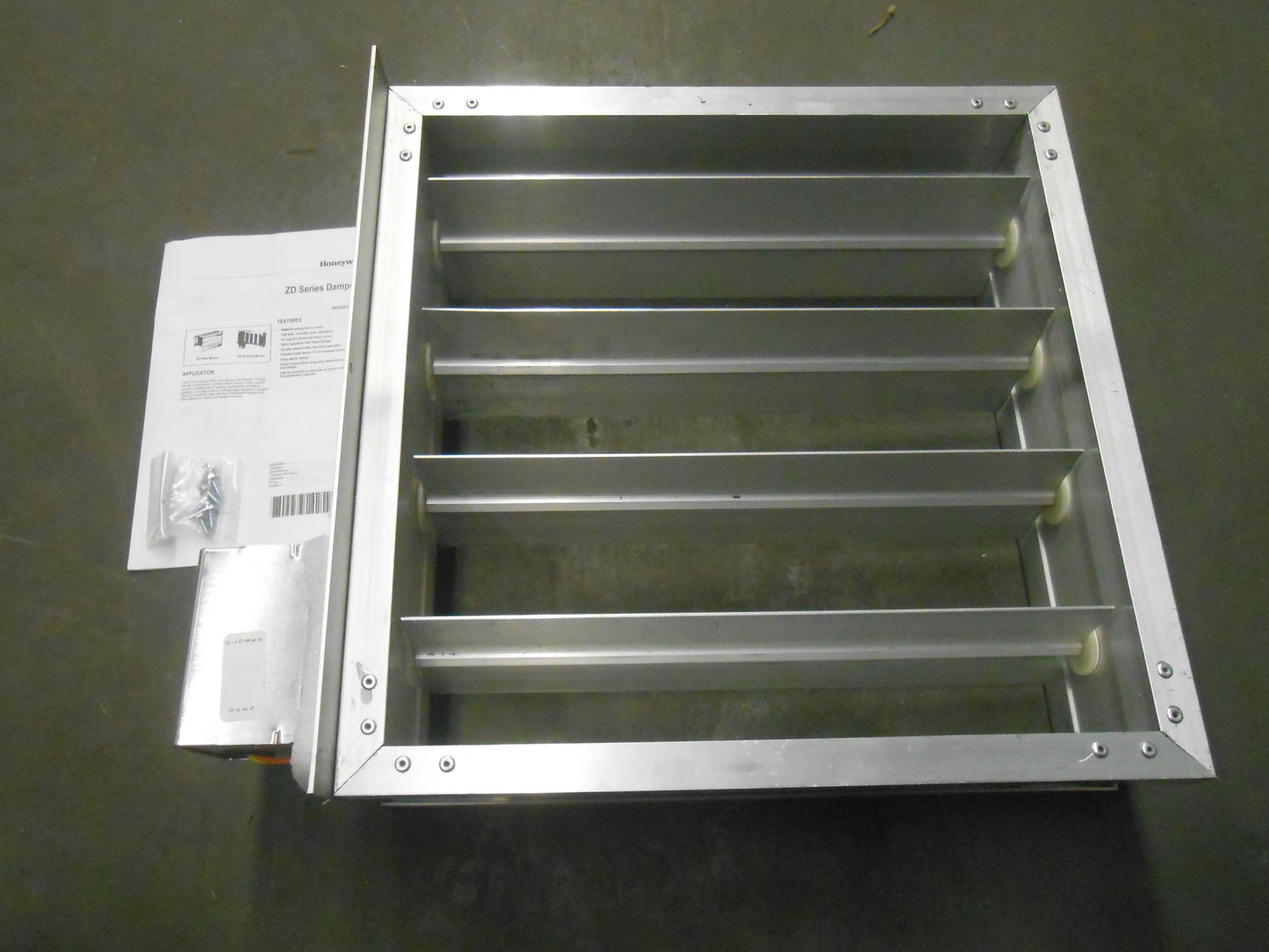

14 X 14" Automatic Rectangular Damper, Motor Electrical Rating:24 VAC, 60 Hz, 0.32 A, Motor Electrical Connections:4" Leadwire, Motor Nominal Angular Rotation:90 Degrees, Motor Torque:Minimum 71 In-Oz, Nominal Motor Timing At 77F Ambient:Energized At Rated Load:30 Seconds, De-Energized:10 Seconds, Motor Ambient Temperature Rating:40 To 140F, Motor Finish:Zinc-Plated Steel, Anodized Aluminum, Rotation:Clockwise, Mounting Position:Multi-Poise,
Product Details
Product Details
SCL # :195369
Manufacturer Item # :ZD14X14/U
14 X 14" Automatic Rectangular Damper, Motor Electrical Rating:24 VAC, 60 Hz, 0.32 A, Motor Electrical Connections:4" Leadwire, Motor Nominal Angular Rotation:90 Degrees, Motor Torque:Minimum 71 In-Oz, Nominal Motor Timing At 77F Ambient:Energized At Rated Load:30 Seconds, De-Energized:10 Seconds, Motor Ambient Temperature Rating:40 To 140F, Motor Finish:Zinc-Plated Steel, Anodized Aluminum, Rotation:Clockwise, Mounting Position:Multi-Poise,
Specifications
Specifications
Cabinet Size:16
Category:RECTANGULAR DAMPERS
Packaging:No Manufacture Packaging
