SCL # :215317
Manufacturer Item # :0131L00061S
Alternate Part # :K55HXRJD-1984

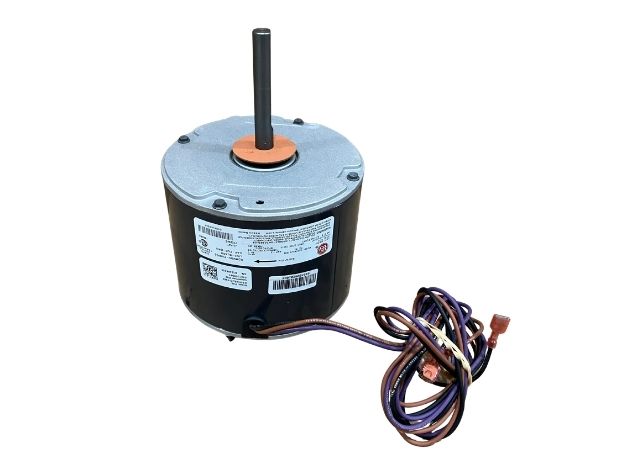

1/4 HP Condensor Fan Motor, Volts:208-230, Hertz:60, Phase:1, Amps:1.5, RPM/Speed:1075/1 Speed, Motor Type:PSC, Frame:48, Bearing:Ball, Body:Totally Enclosed, Duty:Continuous, Rotation:CCWLE , Shaft:3" X 1/2" Flat, Motor Length Less Shaft:4 1/2", Overall Length:8", Motor Diameter:5 5/8", Mounting:Belly Band, Weight:13 Lbs, Made In Mexico, In Mfg Box
Product Details
Product Details
SCL # :215317
Manufacturer Item # :0131L00061S
Alternate Part # :K55HXRJD-1984
1/4 HP Condensor Fan Motor, Volts:208-230, Hertz:60, Phase:1, Amps:1.5, RPM/Speed:1075/1 Speed, Motor Type:PSC, Frame:48, Bearing:Ball, Body:Totally Enclosed, Duty:Continuous, Rotation:CCWLE , Shaft:3" X 1/2" Flat, Motor Length Less Shaft:4 1/2", Overall Length:8", Motor Diameter:5 5/8", Mounting:Belly Band, Weight:13 Lbs, Made In Mexico, In Mfg Box
Specifications
Specifications
Cabinet Size:6
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
