SCL # :215541
Manufacturer Item # :K55HXDBS-0325
Alternate Part # :100483-08

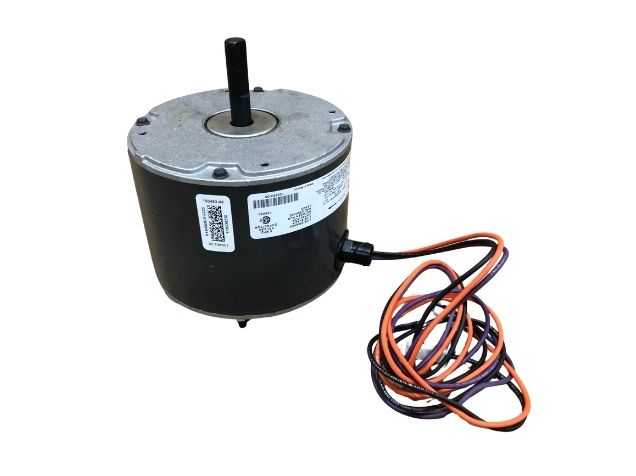

1/6 HP Condensor Fan Motor, Volts: 460, Hertz: 60, Phase: 1, Amps: .55, RPM/Speed: 1075/1 Speed, Motor Type: PSC, Frame: 48Y, Bearing: Sleeved, Body: Totally Enclosed, Duty: Continuous, Rotation:
CW Lead End, Shaft: 1/2" X 2", Motor Length Less Shaft: 4-1/4", Overall Length: 6", Motor Diameter: 5-3/4", Mounting: Belly Band, Weight: 14Lbs, Boxed, Made In Mexico
CW Lead End, Shaft: 1/2" X 2", Motor Length Less Shaft: 4-1/4", Overall Length: 6", Motor Diameter: 5-3/4", Mounting: Belly Band, Weight: 14Lbs, Boxed, Made In Mexico
Product Details
Product Details
SCL # :215541
Manufacturer Item # :K55HXDBS-0325
Alternate Part # :100483-08
1/6 HP Condensor Fan Motor, Volts: 460, Hertz: 60, Phase: 1, Amps: .55, RPM/Speed: 1075/1 Speed, Motor Type: PSC, Frame: 48Y, Bearing: Sleeved, Body: Totally Enclosed, Duty: Continuous, Rotation:
CW Lead End, Shaft: 1/2" X 2", Motor Length Less Shaft: 4-1/4", Overall Length: 6", Motor Diameter: 5-3/4", Mounting: Belly Band, Weight: 14Lbs, Boxed, Made In Mexico
CW Lead End, Shaft: 1/2" X 2", Motor Length Less Shaft: 4-1/4", Overall Length: 6", Motor Diameter: 5-3/4", Mounting: Belly Band, Weight: 14Lbs, Boxed, Made In Mexico
Specifications
Specifications
Cabinet Size:6
Circuit Phase:1
Circuit Voltage:460
Maximum Hertz:60
Packaging:No Manufacture Packaging
