SCL # :208994
Manufacturer Item # :S1-02435327004
Alternate Part # :S1-02435315000

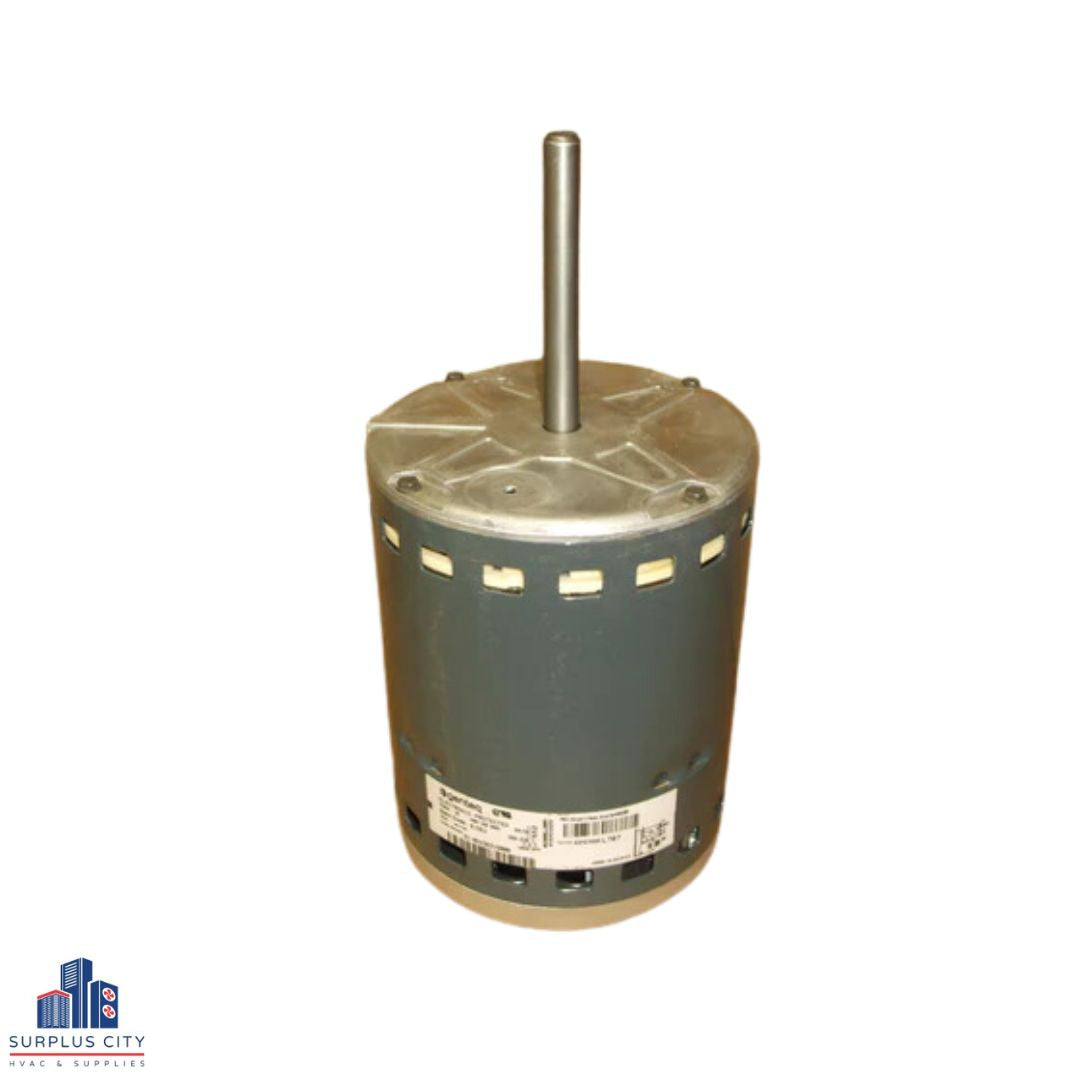

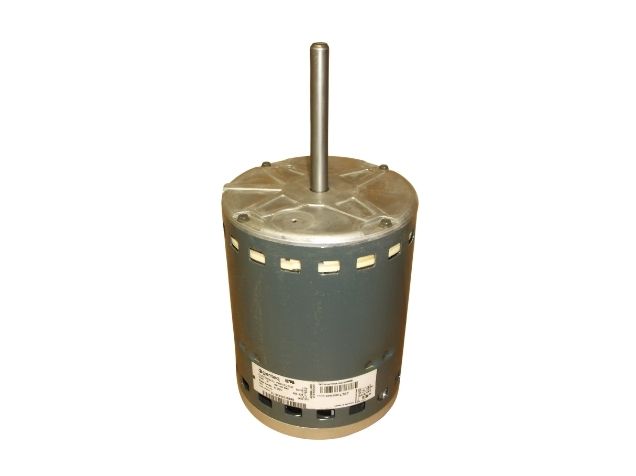

1HP ECM Programmed Blower Motor,Voltage:208-230, Phase:1, Hertz:50-60, Amps:7.6, Frame:48,T ype:ECM, Mounting:Belly Band, Bearing:Ball, Body:Open Air-Over, Rpm:1050/Variable Speed, Rotation:Counter Clockwise, Shaft:1/2"Flat X 3-7/8", Duty:Continuous, Motor Dia.:5-5/8", Motor Length Less Shaft:7-1/4", Overall Length:11-1/8", Weight:18.85 Pounds, Made In Mexico, Mfg/Box.
Product Details
Product Details
SCL # :208994
Manufacturer Item # :S1-02435327004
Alternate Part # :S1-02435315000
1HP ECM Programmed Blower Motor,Voltage:208-230, Phase:1, Hertz:50-60, Amps:7.6, Frame:48,T ype:ECM, Mounting:Belly Band, Bearing:Ball, Body:Open Air-Over, Rpm:1050/Variable Speed, Rotation:Counter Clockwise, Shaft:1/2"Flat X 3-7/8", Duty:Continuous, Motor Dia.:5-5/8", Motor Length Less Shaft:7-1/4", Overall Length:11-1/8", Weight:18.85 Pounds, Made In Mexico, Mfg/Box.
Specifications
Specifications
Cabinet Size:7
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:50-60
Packaging:Manufacture packaging
