SCL # :M000634
Manufacturer Item # :RA14AZ30AJ1NA/RF1T3624MTANJAB10417
Alternate Part # :221744,221459

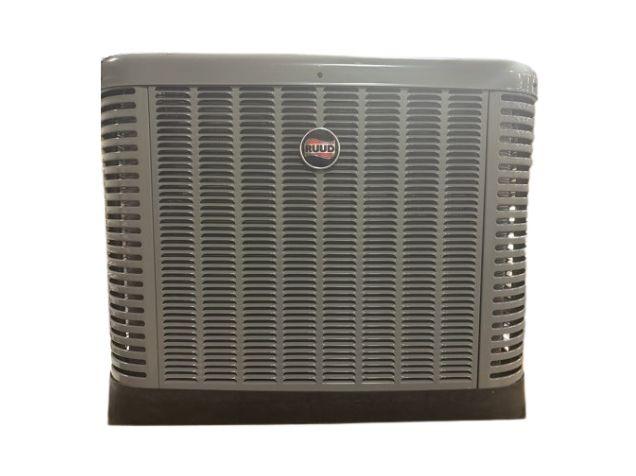

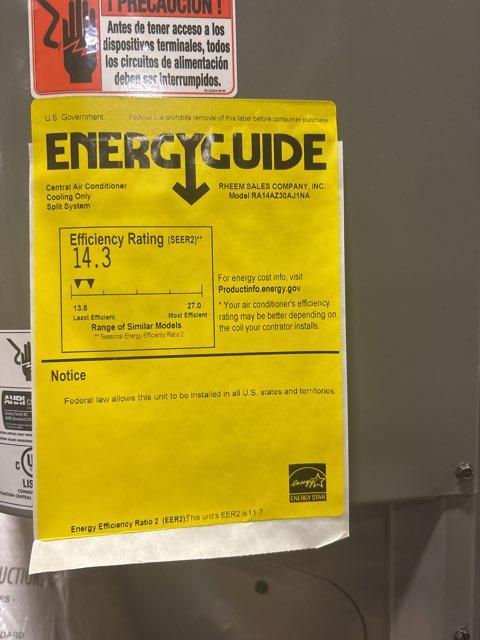

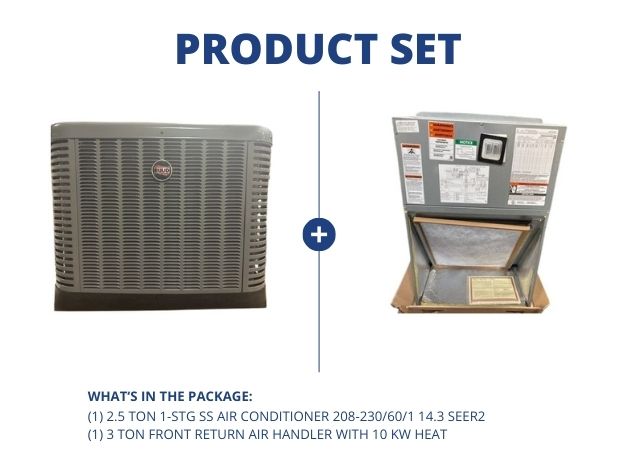

2.5 Ton Single Stage Split-System Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: Single, Refrigerant: R410A, Connection Size: 3/8"X3/4", Connection Type: Sweat, Factory Charge: 120 oz, Type: Air, Dimensions: 27''H x 33-3/4''W x 33-3/4''D, Weight: 190 lbs Paired with:

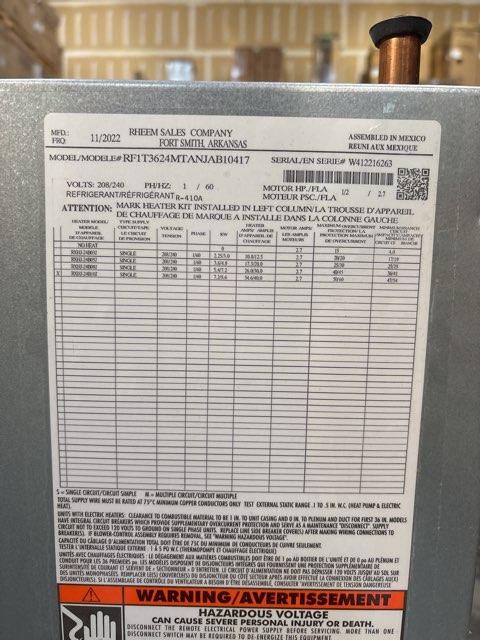

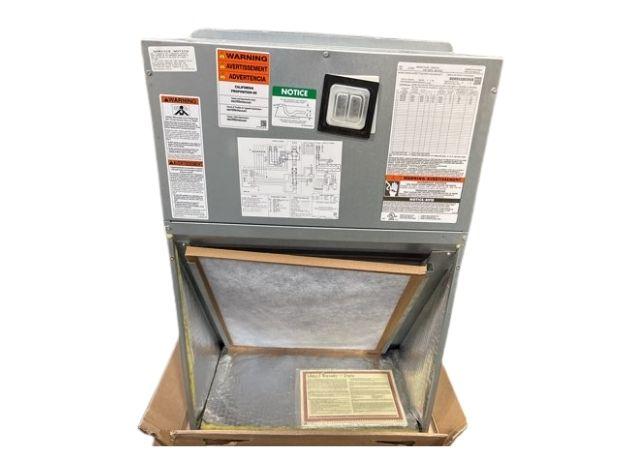

3 Ton AC/HP Air Handler With 10 KW Heat, Airflow: Front Return, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1306, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 36''H X 24''W X 21''D, Weight: 95 lbs
3 Ton AC/HP Air Handler With 10 KW Heat, Airflow: Front Return, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1306, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 36''H X 24''W X 21''D, Weight: 95 lbs
Product Details
Product Details
SCL # :M000634
Manufacturer Item # :RA14AZ30AJ1NA/RF1T3624MTANJAB10417
Alternate Part # :221744,221459
2.5 Ton Single Stage Split-System Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: Single, Refrigerant: R410A, Connection Size: 3/8"X3/4", Connection Type: Sweat, Factory Charge: 120 oz, Type: Air, Dimensions: 27''H x 33-3/4''W x 33-3/4''D, Weight: 190 lbs Paired with:
3 Ton AC/HP Air Handler With 10 KW Heat, Airflow: Front Return, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1306, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 36''H X 24''W X 21''D, Weight: 95 lbs
3 Ton AC/HP Air Handler With 10 KW Heat, Airflow: Front Return, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1306, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 36''H X 24''W X 21''D, Weight: 95 lbs
Specifications
Specifications
Cabinet Size:33.75
Capacity:2.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
