SCL # :221053
Manufacturer Item # :YHE30B21SA/AVPTC37C14
Alternate Part # :195097,216559

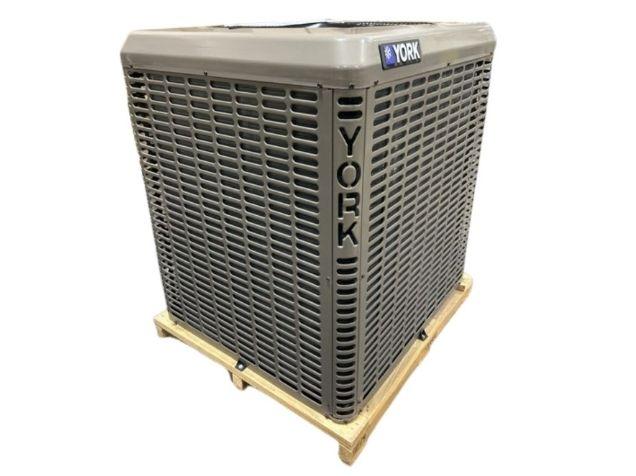

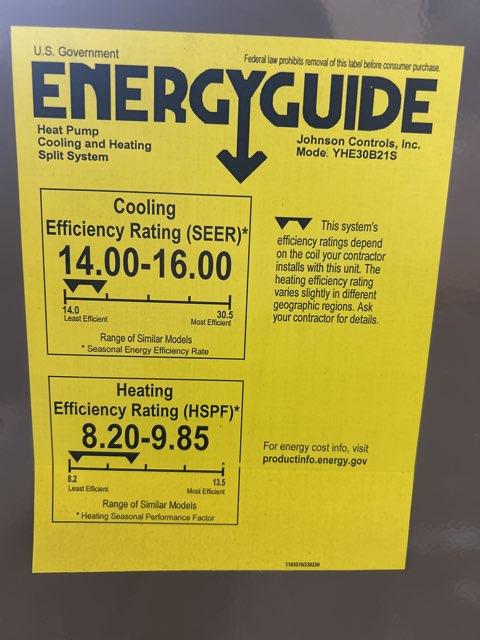

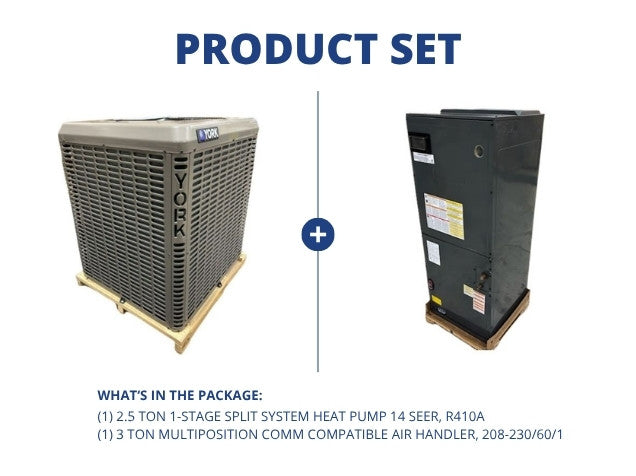

2.5 ton LX series split-system heat pump; Volts: 208/230, Hertz: 60, Phase: 1, SEER: 14, Stage: single, Refrigerant: R-410A, Factory Charge: 7 lbs 15 oz, Connections: 3/8" x 3/4" sweat, Design Pressure High/Low: 448 PSIG/236 PSIG, Dimensions: 39-1/2"H x 31-3/4"W x 35-1/4"D, Weight: 175 lbs, in bulk, made in USA Paired with:

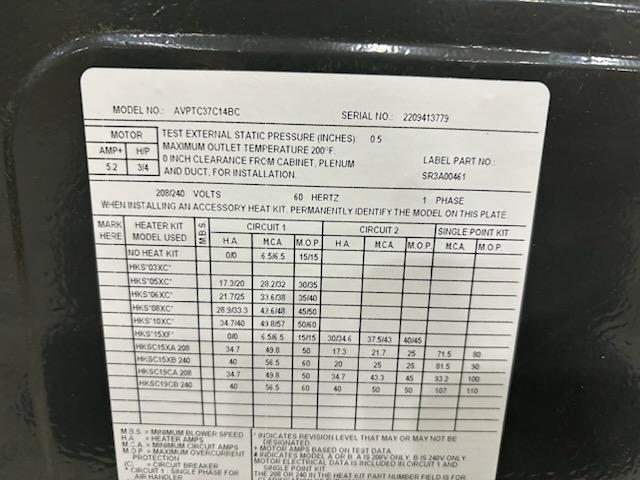

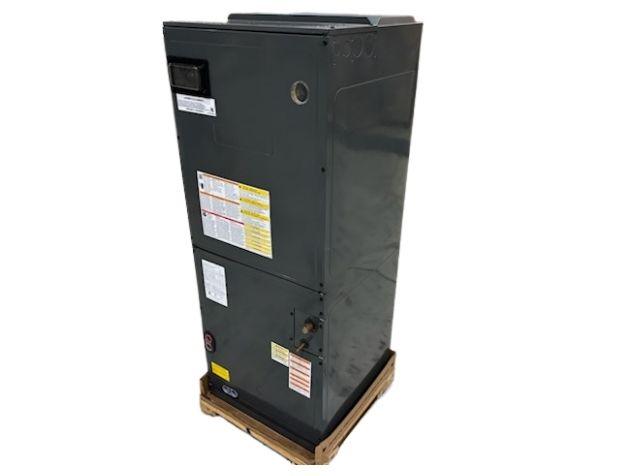

3 ton AC/HP Multiposition Communicating compatible variable-speed ECM air handler; Volts: 208-230, Hertz: 60, Phase: 1, Refrigerant: R-410A, Connection Type: sweat, Connection Size: 3/8" x 7/8", Dimensions: 53-7/16"H x 21"W x 21"D, made in USA NOTE: Downflow Kit Is Not Included (Model# DFK-C) **Compatible With Comfortbridge Technology Units** **Compatible Electric Heat Kit Is Not Included (Model# HKSX, HKSC (3-15 KW)** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details***
3 ton AC/HP Multiposition Communicating compatible variable-speed ECM air handler; Volts: 208-230, Hertz: 60, Phase: 1, Refrigerant: R-410A, Connection Type: sweat, Connection Size: 3/8" x 7/8", Dimensions: 53-7/16"H x 21"W x 21"D, made in USA NOTE: Downflow Kit Is Not Included (Model# DFK-C) **Compatible With Comfortbridge Technology Units** **Compatible Electric Heat Kit Is Not Included (Model# HKSX, HKSC (3-15 KW)** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details***
Product Details
Product Details
SCL # :221053
Manufacturer Item # :YHE30B21SA/AVPTC37C14
Alternate Part # :195097,216559
2.5 ton LX series split-system heat pump; Volts: 208/230, Hertz: 60, Phase: 1, SEER: 14, Stage: single, Refrigerant: R-410A, Factory Charge: 7 lbs 15 oz, Connections: 3/8" x 3/4" sweat, Design Pressure High/Low: 448 PSIG/236 PSIG, Dimensions: 39-1/2"H x 31-3/4"W x 35-1/4"D, Weight: 175 lbs, in bulk, made in USA Paired with:
3 ton AC/HP Multiposition Communicating compatible variable-speed ECM air handler; Volts: 208-230, Hertz: 60, Phase: 1, Refrigerant: R-410A, Connection Type: sweat, Connection Size: 3/8" x 7/8", Dimensions: 53-7/16"H x 21"W x 21"D, made in USA NOTE: Downflow Kit Is Not Included (Model# DFK-C) **Compatible With Comfortbridge Technology Units** **Compatible Electric Heat Kit Is Not Included (Model# HKSX, HKSC (3-15 KW)** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details***
3 ton AC/HP Multiposition Communicating compatible variable-speed ECM air handler; Volts: 208-230, Hertz: 60, Phase: 1, Refrigerant: R-410A, Connection Type: sweat, Connection Size: 3/8" x 7/8", Dimensions: 53-7/16"H x 21"W x 21"D, made in USA NOTE: Downflow Kit Is Not Included (Model# DFK-C) **Compatible With Comfortbridge Technology Units** **Compatible Electric Heat Kit Is Not Included (Model# HKSX, HKSC (3-15 KW)** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details***
Specifications
Specifications
Cabinet Size:31.75
Capacity:2.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
