SCL # :219780
Manufacturer Item # :YHE30B21SA/AVPTC29B14/WKS1502B
Alternate Part # :195097,218620,217077

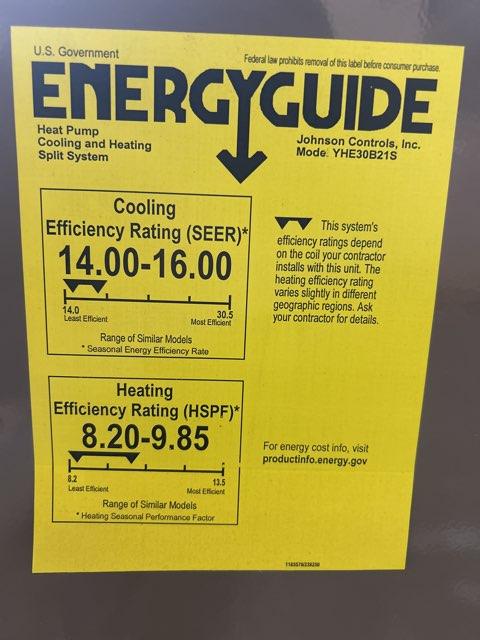

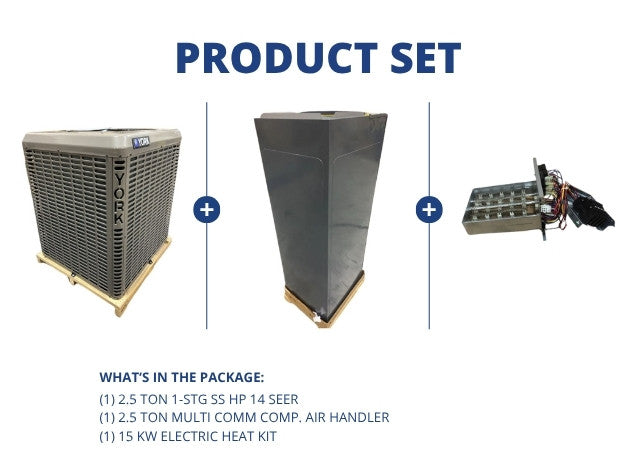

2.5 ton LX series split-system heat pump; Volts: 208/230, Hertz: 60, Phase: 1, SEER: 14, Stage: single, Refrigerant: R-410A, Factory Charge: 7 lbs 15 oz, Connections: 3/8" x 3/4" sweat, Design Pressure High/Low: 448 PSIG/236 PSIG, Dimensions: 39-1/2"H x 31-3/4"W x 35-1/4"D, Weight: 175 lbs, in bulk, made in USA
paired with:

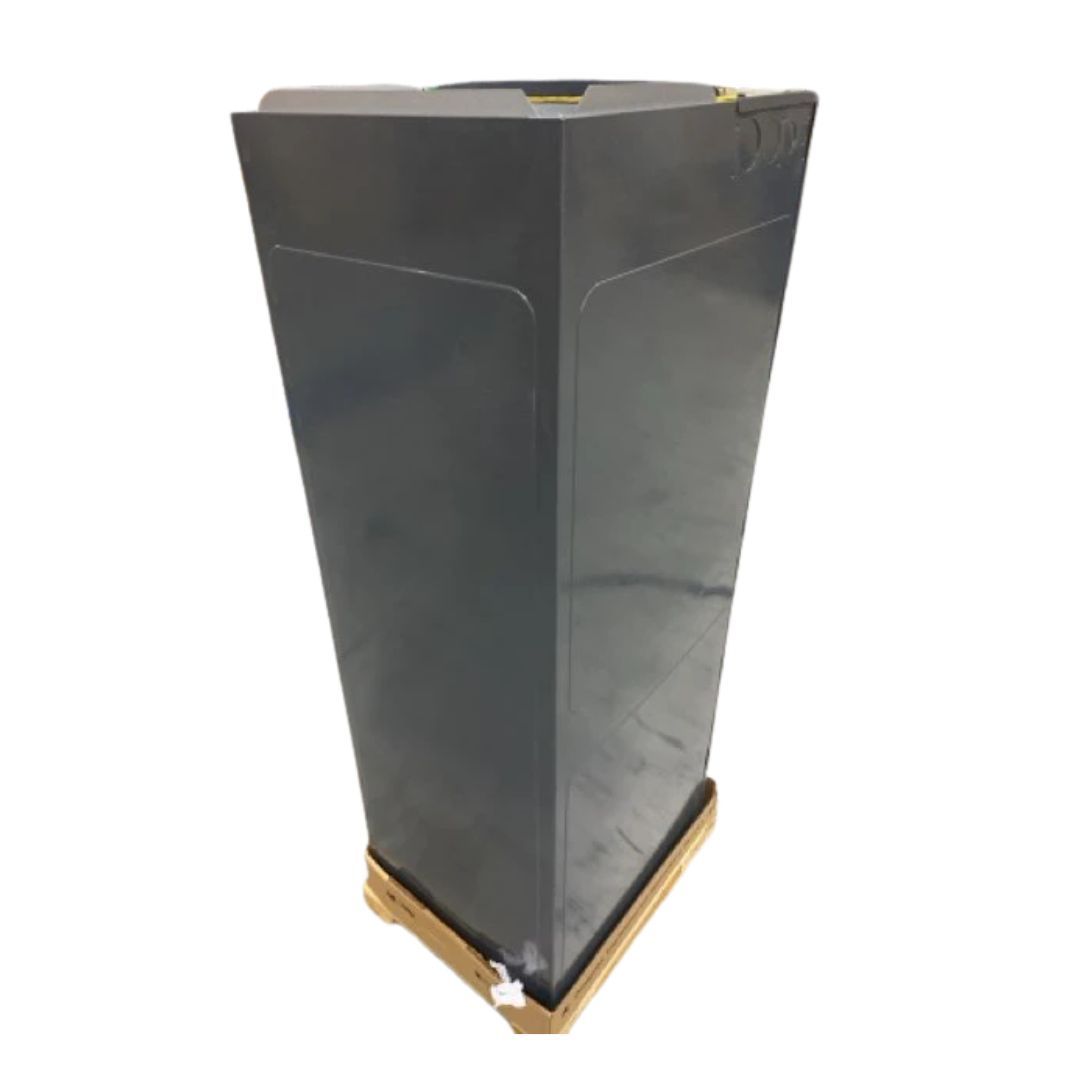

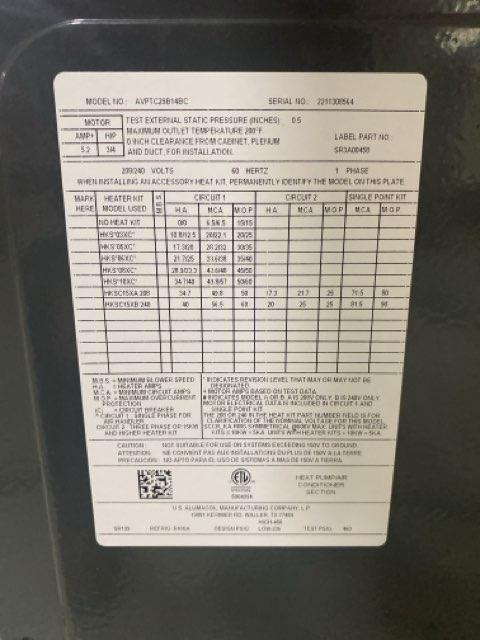

2.5 ton AC/HP communicating compatible air handler; Airflow: multi-position, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1085, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connections: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 53-7/16"H x 17-1/2"W x 21"D
Note: Requires a DFK-B Kit if using in downflow position (not included)
**COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:

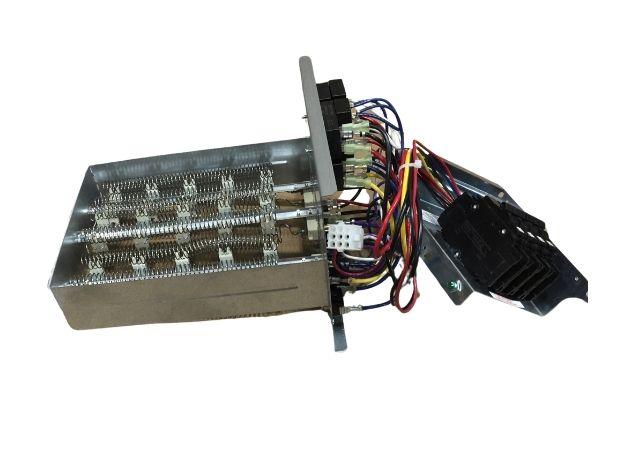

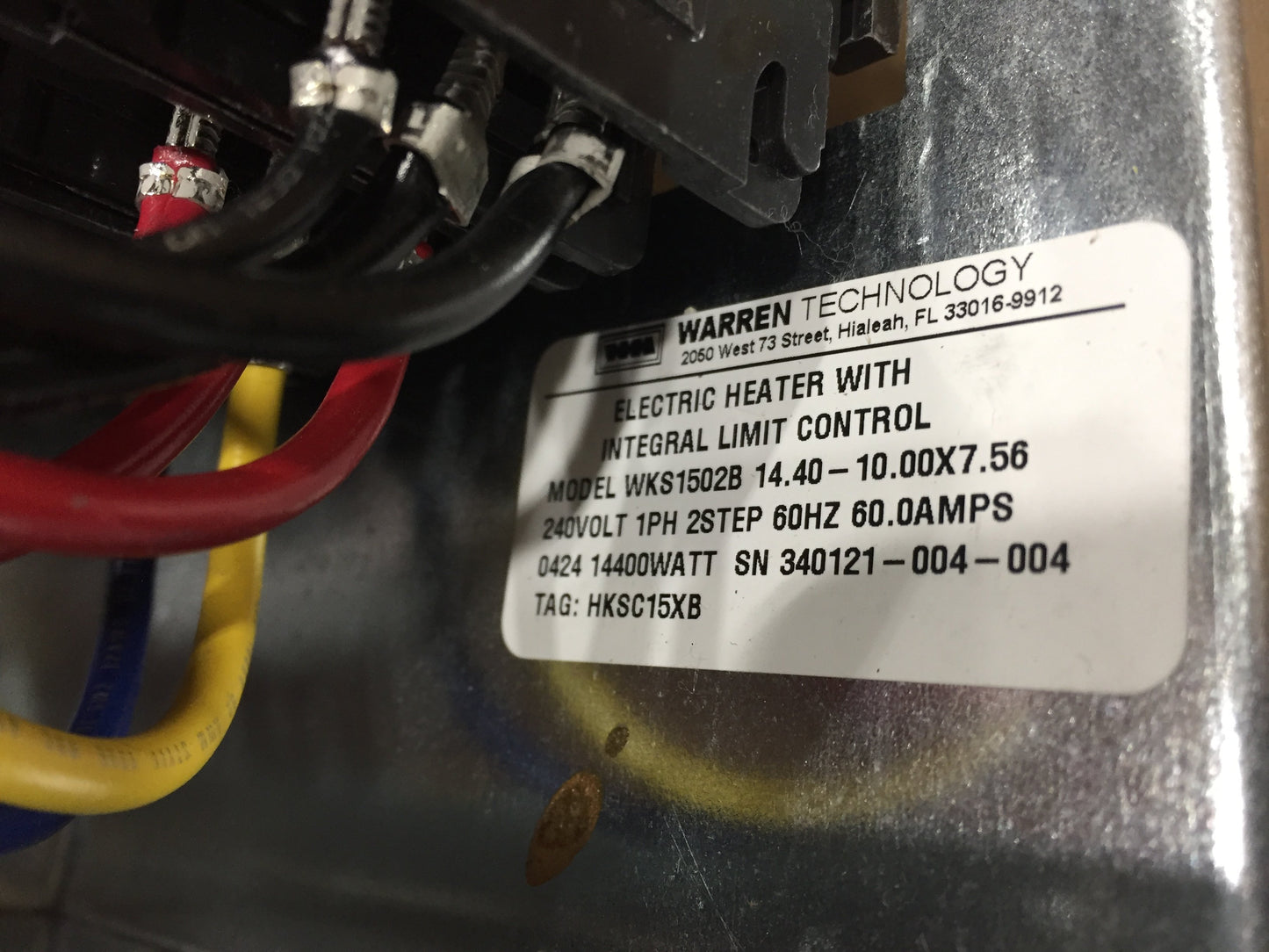

15KW electric heat kit with integral limit control; Volts: 240, Hertz: 60, Phase: 1, 60 Amps, Dimensions: 7"H x 8"W x 12"L, Weight: 6 lbs, in mfg box, made in USA
paired with:
2.5 ton AC/HP communicating compatible air handler; Airflow: multi-position, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1085, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connections: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 53-7/16"H x 17-1/2"W x 21"D
Note: Requires a DFK-B Kit if using in downflow position (not included)
**COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:
15KW electric heat kit with integral limit control; Volts: 240, Hertz: 60, Phase: 1, 60 Amps, Dimensions: 7"H x 8"W x 12"L, Weight: 6 lbs, in mfg box, made in USA
Product Details
Product Details
SCL # :219780
Manufacturer Item # :YHE30B21SA/AVPTC29B14/WKS1502B
Alternate Part # :195097,218620,217077
2.5 ton LX series split-system heat pump; Volts: 208/230, Hertz: 60, Phase: 1, SEER: 14, Stage: single, Refrigerant: R-410A, Factory Charge: 7 lbs 15 oz, Connections: 3/8" x 3/4" sweat, Design Pressure High/Low: 448 PSIG/236 PSIG, Dimensions: 39-1/2"H x 31-3/4"W x 35-1/4"D, Weight: 175 lbs, in bulk, made in USA
paired with:
2.5 ton AC/HP communicating compatible air handler; Airflow: multi-position, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1085, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connections: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 53-7/16"H x 17-1/2"W x 21"D
Note: Requires a DFK-B Kit if using in downflow position (not included)
**COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:
15KW electric heat kit with integral limit control; Volts: 240, Hertz: 60, Phase: 1, 60 Amps, Dimensions: 7"H x 8"W x 12"L, Weight: 6 lbs, in mfg box, made in USA
paired with:
2.5 ton AC/HP communicating compatible air handler; Airflow: multi-position, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1085, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connections: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 53-7/16"H x 17-1/2"W x 21"D
Note: Requires a DFK-B Kit if using in downflow position (not included)
**COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:
15KW electric heat kit with integral limit control; Volts: 240, Hertz: 60, Phase: 1, 60 Amps, Dimensions: 7"H x 8"W x 12"L, Weight: 6 lbs, in mfg box, made in USA
Specifications
Specifications
Cabinet Size:31.75
Capacity:2.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Stage:1
System Controls:NON-COMMUNICATING
