SCL # :222695-7735092063
Manufacturer Item # :WQ030-1VTC-FLTDDA-7735092063
Alternate Part # :WQ030-1VTC-FLTDDA-2940-277-000004-7735092063-S/N

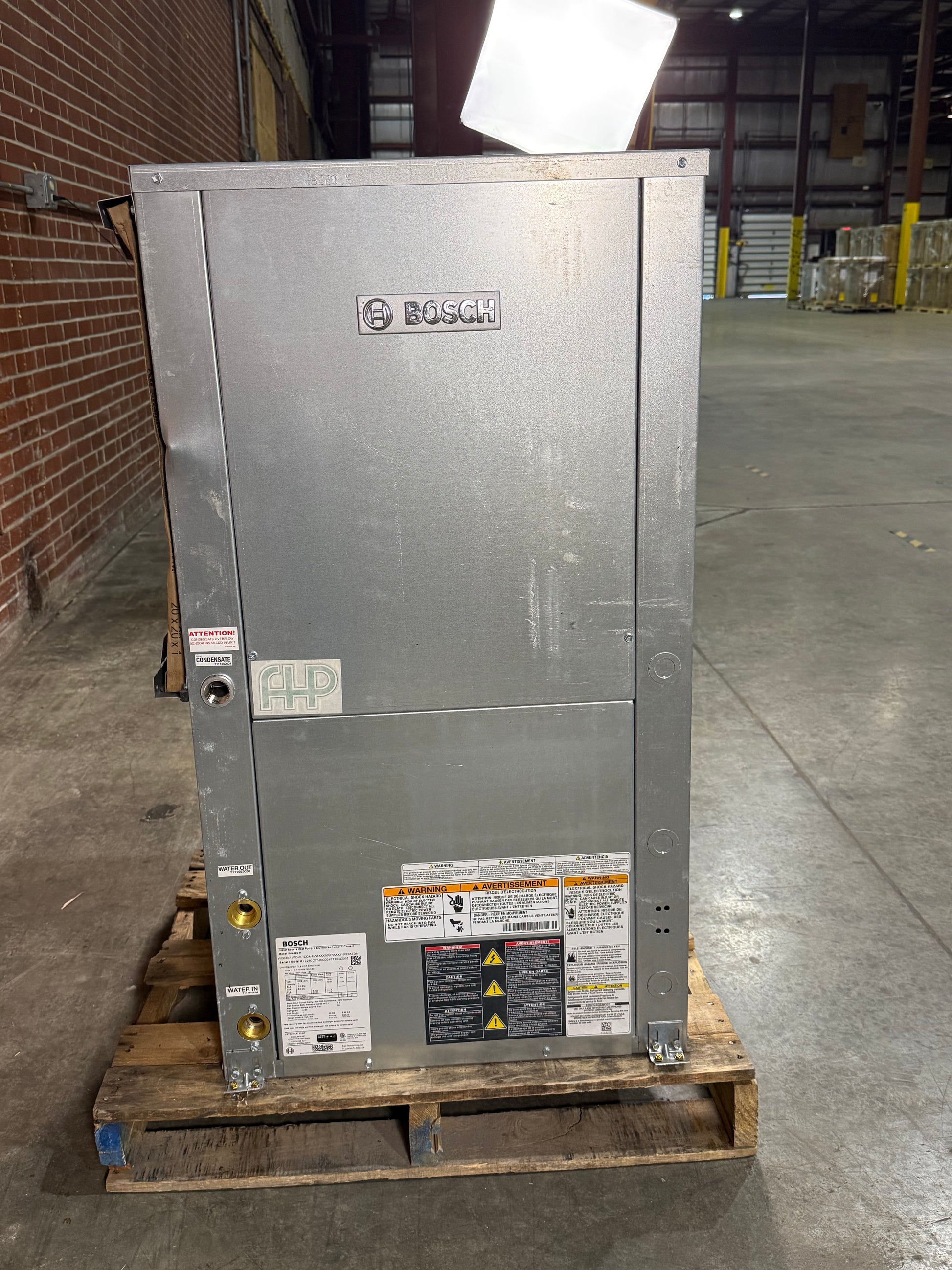

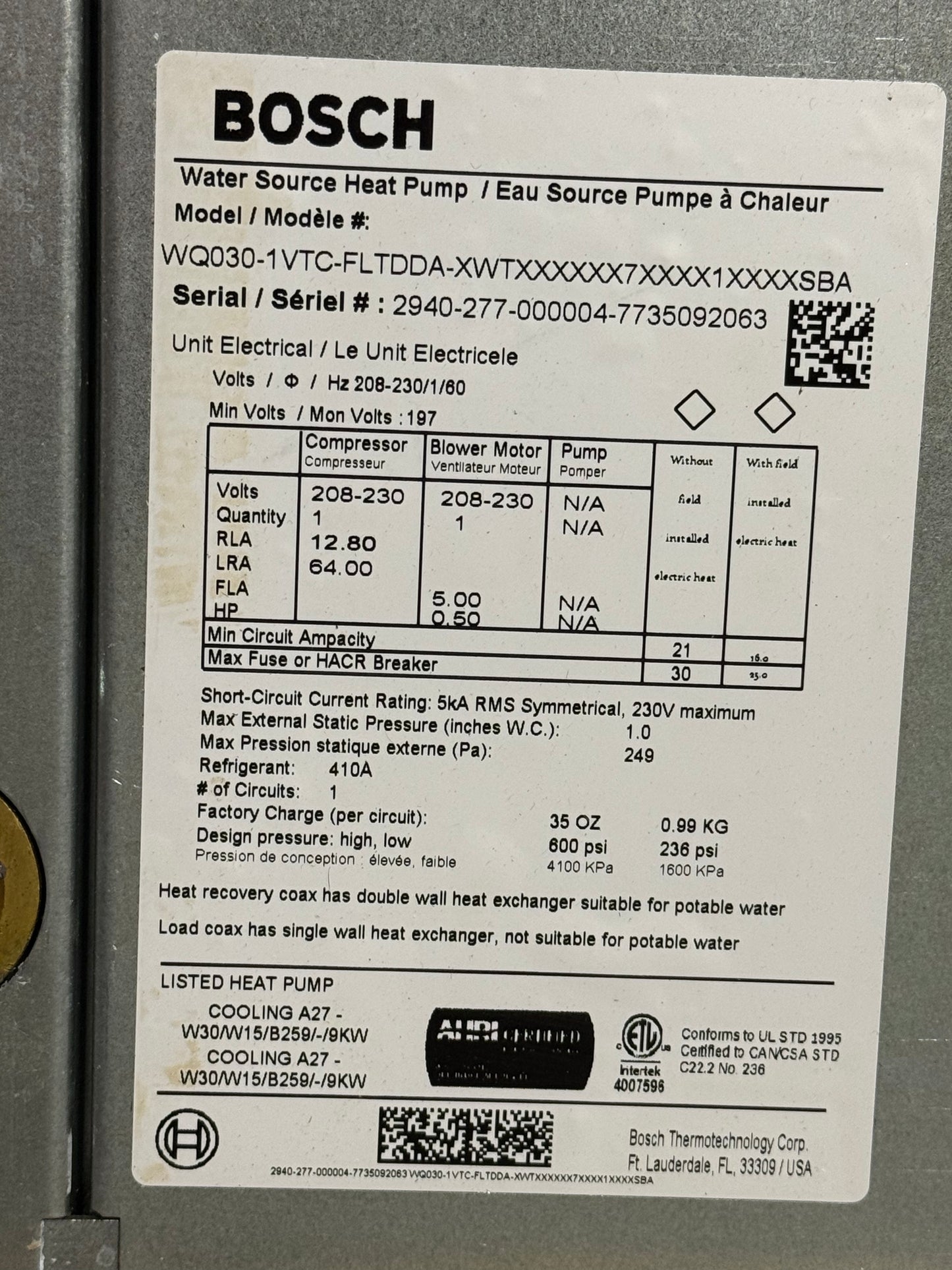

2.5 Ton Single Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Left Return, EER: 17, Stage: Single, Motor Type: PSC, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 35 oz, Water Loop - Cooling BTU: 28,650/Heating BTU: 32,150, Ground Loop - Cooling BTU: 29,950/Heating BTU: 21,050, Connection Size: 3/4", Dimensions: 39-1/4''H x 21-1/2''W x 21-1/2''D, Weight: 219 lbs ***Dent on to the left corner of the front panel***
Product Details
Product Details
SCL # :222695-7735092063
Manufacturer Item # :WQ030-1VTC-FLTDDA-7735092063
Alternate Part # :WQ030-1VTC-FLTDDA-2940-277-000004-7735092063-S/N
2.5 Ton Single Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Left Return, EER: 17, Stage: Single, Motor Type: PSC, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 35 oz, Water Loop - Cooling BTU: 28,650/Heating BTU: 32,150, Ground Loop - Cooling BTU: 29,950/Heating BTU: 21,050, Connection Size: 3/4", Dimensions: 39-1/4''H x 21-1/2''W x 21-1/2''D, Weight: 219 lbs ***Dent on to the left corner of the front panel***
Specifications
Specifications
Cabinet Size:21.5
Capacity:2.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
