SCL # :220823
Manufacturer Item # :GSXN403010/B64BMMX36K-B/TH6220WF2006/U
Alternate Part # :215705,219347,219754

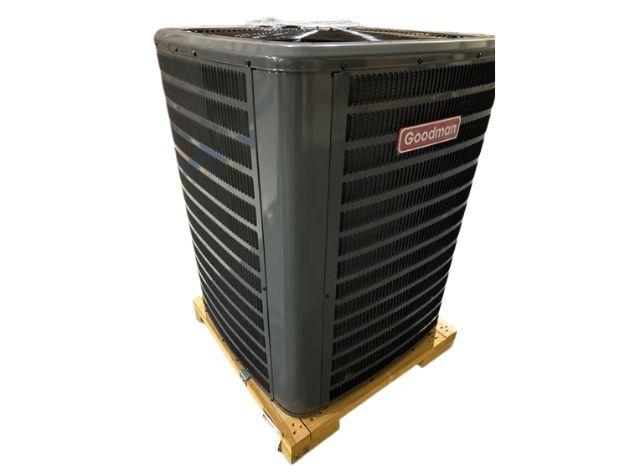

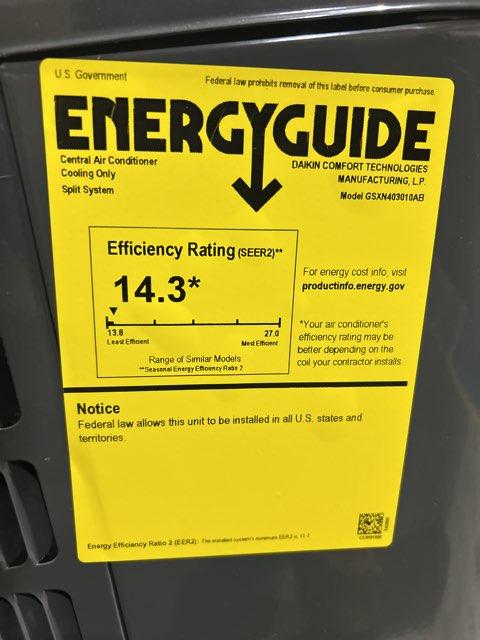

2.5 Ton Split-System Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department Of Energy Guide Seer2: 14.3, Stage: Single, Refrigerant: R410A, Connection Size: 3/8"X7/8", Connection Type: Sweat, Factory Charge: 4 Lbs 15 Oz, Dimensions: 39-1/2''H X 29''W X 29''D, Weight: 156 Lbs.
***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:

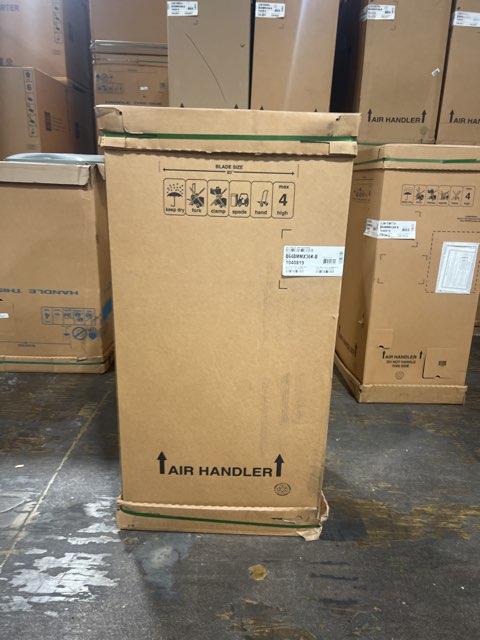

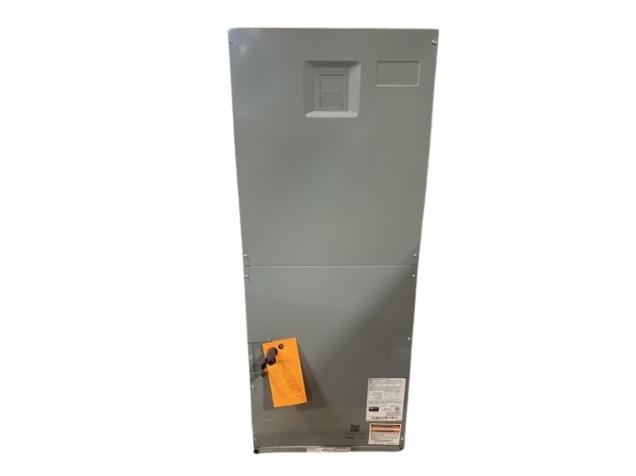

3 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1628, Refrigerant: R-410A, Motor Type: PSC, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 49-5/16''H X 19-11/16''W X 22''D, Weight: 133 lbs ***Compatible Heat Kits: H8HK(005-015)H-XX (not included)*** Paired with:

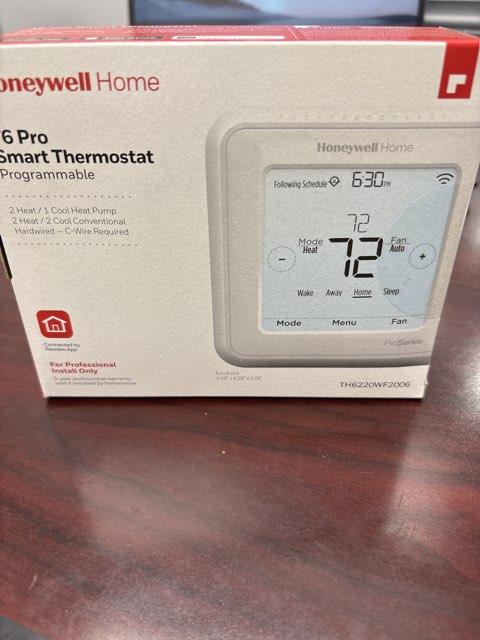

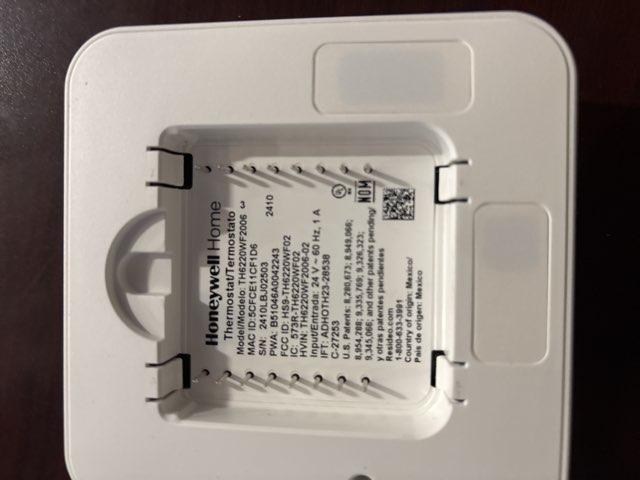

7-Day Programmable Digital Touch Screen Thermostat, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: R & C Wire, Color: White, Applications: Heat Pumps, Conventional system, Dimensions: 4-1/16''H X 4-1/16''W X 1-5/32''D
***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
3 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1628, Refrigerant: R-410A, Motor Type: PSC, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 49-5/16''H X 19-11/16''W X 22''D, Weight: 133 lbs ***Compatible Heat Kits: H8HK(005-015)H-XX (not included)*** Paired with:
7-Day Programmable Digital Touch Screen Thermostat, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: R & C Wire, Color: White, Applications: Heat Pumps, Conventional system, Dimensions: 4-1/16''H X 4-1/16''W X 1-5/32''D
Product Details
Product Details
SCL # :220823
Manufacturer Item # :GSXN403010/B64BMMX36K-B/TH6220WF2006/U
Alternate Part # :215705,219347,219754
2.5 Ton Split-System Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department Of Energy Guide Seer2: 14.3, Stage: Single, Refrigerant: R410A, Connection Size: 3/8"X7/8", Connection Type: Sweat, Factory Charge: 4 Lbs 15 Oz, Dimensions: 39-1/2''H X 29''W X 29''D, Weight: 156 Lbs.
***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
3 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1628, Refrigerant: R-410A, Motor Type: PSC, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 49-5/16''H X 19-11/16''W X 22''D, Weight: 133 lbs ***Compatible Heat Kits: H8HK(005-015)H-XX (not included)*** Paired with:
7-Day Programmable Digital Touch Screen Thermostat, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: R & C Wire, Color: White, Applications: Heat Pumps, Conventional system, Dimensions: 4-1/16''H X 4-1/16''W X 1-5/32''D
***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
3 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1628, Refrigerant: R-410A, Motor Type: PSC, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 49-5/16''H X 19-11/16''W X 22''D, Weight: 133 lbs ***Compatible Heat Kits: H8HK(005-015)H-XX (not included)*** Paired with:
7-Day Programmable Digital Touch Screen Thermostat, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: R & C Wire, Color: White, Applications: Heat Pumps, Conventional system, Dimensions: 4-1/16''H X 4-1/16''W X 1-5/32''D
Specifications
Specifications
Cabinet Size:29
Capacity:2.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
