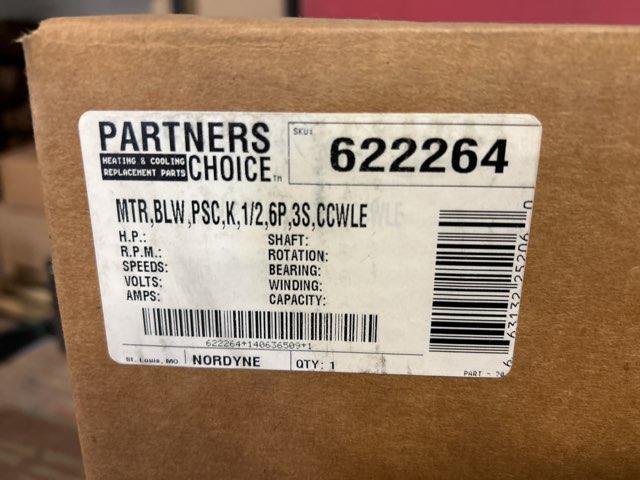

SCL # :222360
Manufacturer Item # :622264
Alternate Part # :Y7S023D01
1/2 HP Blower Motor, Volts: 208-230, Hertz: 60, Phase: 1, Amps: 2.5, Rpm: 1100, Speed: 3, Motor Type: PSC, Frame: 48, Body: Open-Air Over, Rotation: CCWLE , Shaft: Single, Shaft Length: 4.02'', Shaft Diameter: 1/2'', Height: 7-3/20'', Width: 14-17/20'', Length: 8-13/20'', Motor Diameter: 1/2'', Mounting: Belly Band/Stud, Weight: 16.04 Lbs
Product Details
Product Details
SCL # :222360
Manufacturer Item # :622264
Alternate Part # :Y7S023D01
1/2 HP Blower Motor, Volts: 208-230, Hertz: 60, Phase: 1, Amps: 2.5, Rpm: 1100, Speed: 3, Motor Type: PSC, Frame: 48, Body: Open-Air Over, Rotation: CCWLE , Shaft: Single, Shaft Length: 4.02'', Shaft Diameter: 1/2'', Height: 7-3/20'', Width: 14-17/20'', Length: 8-13/20'', Motor Diameter: 1/2'', Mounting: Belly Band/Stud, Weight: 16.04 Lbs
Specifications
Specifications
Cabinet Size:14.85
Capacity:2
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
