SCL # :220289
Manufacturer Item # :UA1724AJ2CB/RH2T2417SEACJA
Alternate Part # :198488,201678

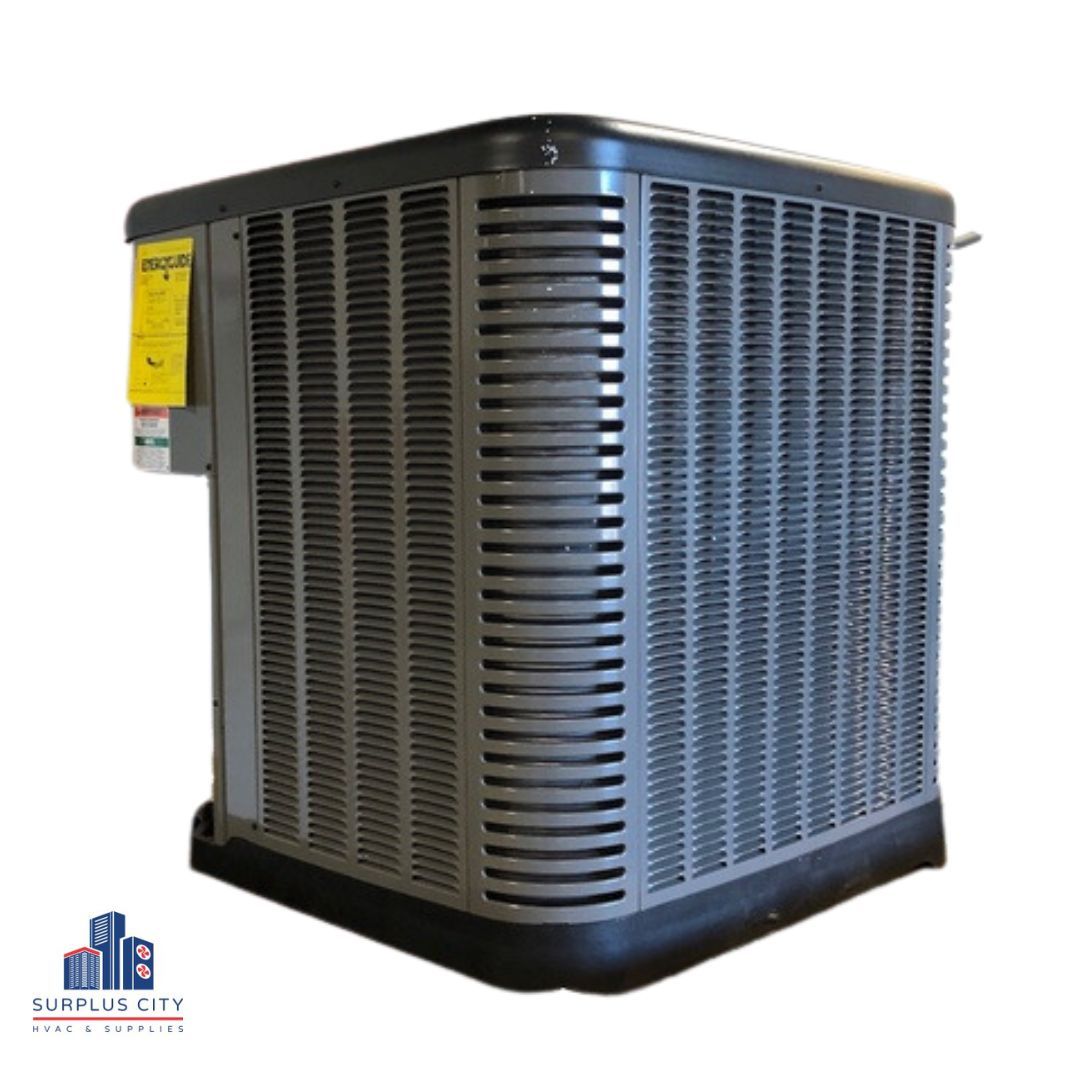

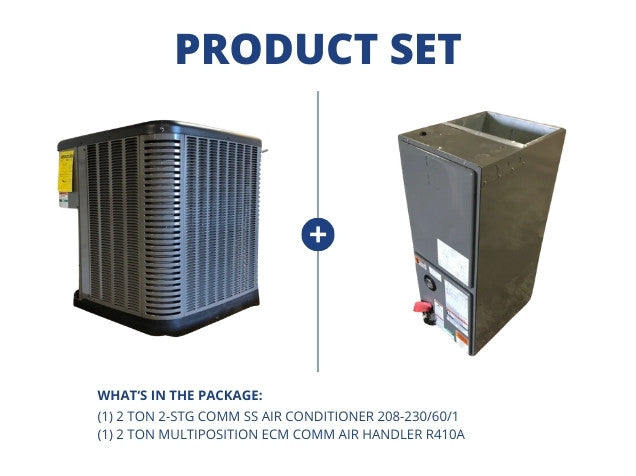

2 Ton Achiever Plus Series Two-Stage Communicating Split-System Air Conditioner, Volts:208/230, Hertz:60, Phase:1, SEER:17, Refrigerant:R-410A, Metering Device:TXV, Design Hi/Lo Pressure:450/250, Type:Air Source, Connection Size:3/8" X 3/4" Sweat, Dims:35"H X 33-3/4"W X 33-3/4"D, Weight:205 Lbs, In Mfg Box, Made In Mexico. **Compatible With Econet Enabled Units** Paired with:

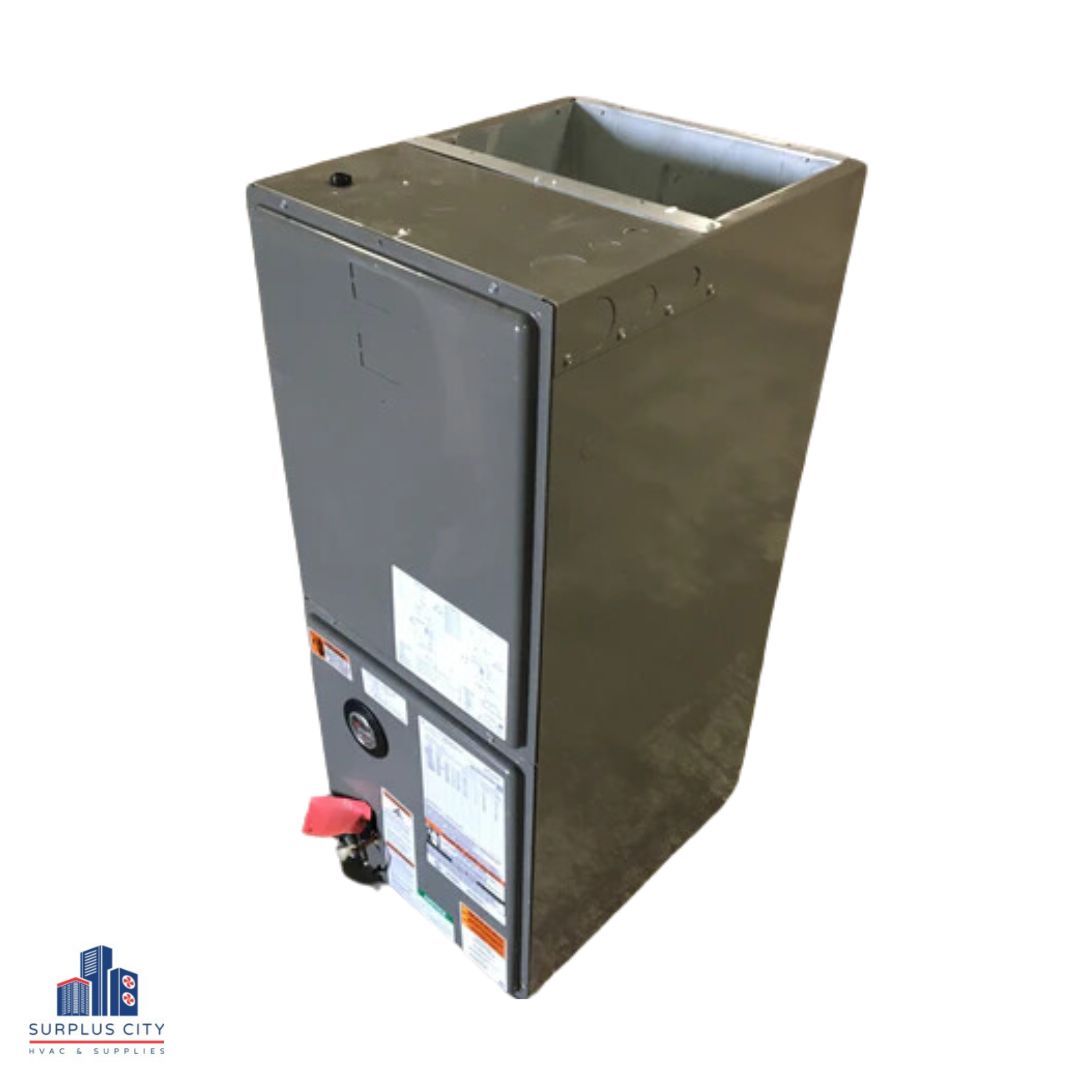

2 Ton AC/HP 2 Stage Communicating Air Handlers, Volt:208/240, Hertz:60, Phase:1, Refrigerant:R-410A, CFM:800, Airflow:Multi-Position, Type:Air Source, Connection Size:3/8" X 3/4", Connection Type:Sweat, Metering Device:EEV, Motor Type:ECM, SEER:16, Overall Dims:42-1/2"H X 17-1/2"W X 21-11/16"D, Weight:92Lbs, Origin:Mexico. Approved Electric Heat Kits:RXBH24A05J, RXBH24A010J, RXBH24A15J(Not Included)
2 Ton AC/HP 2 Stage Communicating Air Handlers, Volt:208/240, Hertz:60, Phase:1, Refrigerant:R-410A, CFM:800, Airflow:Multi-Position, Type:Air Source, Connection Size:3/8" X 3/4", Connection Type:Sweat, Metering Device:EEV, Motor Type:ECM, SEER:16, Overall Dims:42-1/2"H X 17-1/2"W X 21-11/16"D, Weight:92Lbs, Origin:Mexico. Approved Electric Heat Kits:RXBH24A05J, RXBH24A010J, RXBH24A15J(Not Included)
Product Details
Product Details
SCL # :220289
Manufacturer Item # :UA1724AJ2CB/RH2T2417SEACJA
Alternate Part # :198488,201678
2 Ton Achiever Plus Series Two-Stage Communicating Split-System Air Conditioner, Volts:208/230, Hertz:60, Phase:1, SEER:17, Refrigerant:R-410A, Metering Device:TXV, Design Hi/Lo Pressure:450/250, Type:Air Source, Connection Size:3/8" X 3/4" Sweat, Dims:35"H X 33-3/4"W X 33-3/4"D, Weight:205 Lbs, In Mfg Box, Made In Mexico. **Compatible With Econet Enabled Units** Paired with:
2 Ton AC/HP 2 Stage Communicating Air Handlers, Volt:208/240, Hertz:60, Phase:1, Refrigerant:R-410A, CFM:800, Airflow:Multi-Position, Type:Air Source, Connection Size:3/8" X 3/4", Connection Type:Sweat, Metering Device:EEV, Motor Type:ECM, SEER:16, Overall Dims:42-1/2"H X 17-1/2"W X 21-11/16"D, Weight:92Lbs, Origin:Mexico. Approved Electric Heat Kits:RXBH24A05J, RXBH24A010J, RXBH24A15J(Not Included)
2 Ton AC/HP 2 Stage Communicating Air Handlers, Volt:208/240, Hertz:60, Phase:1, Refrigerant:R-410A, CFM:800, Airflow:Multi-Position, Type:Air Source, Connection Size:3/8" X 3/4", Connection Type:Sweat, Metering Device:EEV, Motor Type:ECM, SEER:16, Overall Dims:42-1/2"H X 17-1/2"W X 21-11/16"D, Weight:92Lbs, Origin:Mexico. Approved Electric Heat Kits:RXBH24A05J, RXBH24A010J, RXBH24A15J(Not Included)
Specifications
Specifications
Cabinet Size:33.75
Capacity:2
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:2
System Controls:COMMUNICATING
