SCL # :219784
Manufacturer Item # :AWUF251016

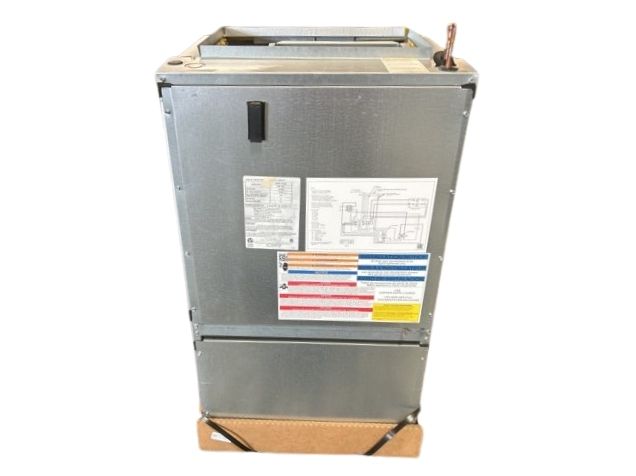

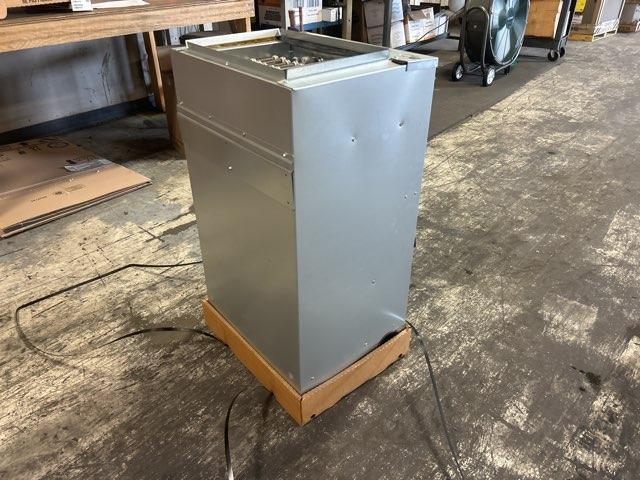

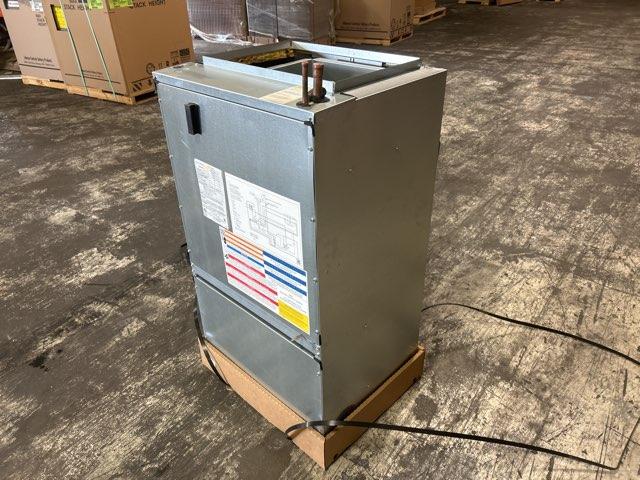

2 Ton AC/HP Air Handler With 10 KW Heat, Airflow: Wall Mounted, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 899, Refrigerant: R22/R-410A, Motor Type: PSC, Metering Device: Piston, Connection Size:
Suction-5/8", Liquid-3/8", Type: Air Source, Dimensions: 36''H X 20-3/16''W X 16-1/8''D, Weight:
84 lbs
Suction-5/8", Liquid-3/8", Type: Air Source, Dimensions: 36''H X 20-3/16''W X 16-1/8''D, Weight:
84 lbs
Product Details
Product Details
SCL # :219784
Manufacturer Item # :AWUF251016
2 Ton AC/HP Air Handler With 10 KW Heat, Airflow: Wall Mounted, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 899, Refrigerant: R22/R-410A, Motor Type: PSC, Metering Device: Piston, Connection Size:
Suction-5/8", Liquid-3/8", Type: Air Source, Dimensions: 36''H X 20-3/16''W X 16-1/8''D, Weight:
84 lbs
Suction-5/8", Liquid-3/8", Type: Air Source, Dimensions: 36''H X 20-3/16''W X 16-1/8''D, Weight:
84 lbs
Specifications
Specifications
Cabinet Size:20.1875
Capacity:2
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:No Manufacture Packaging
System Controls:NON-COMMUNICATING
