SCL # :222697-7735057659
Manufacturer Item # :SM024-1VTC-FLTADB-7735057659
Alternate Part # :SM024-1VTC-FLTADB-2940-819-000001-7735057659-S/N

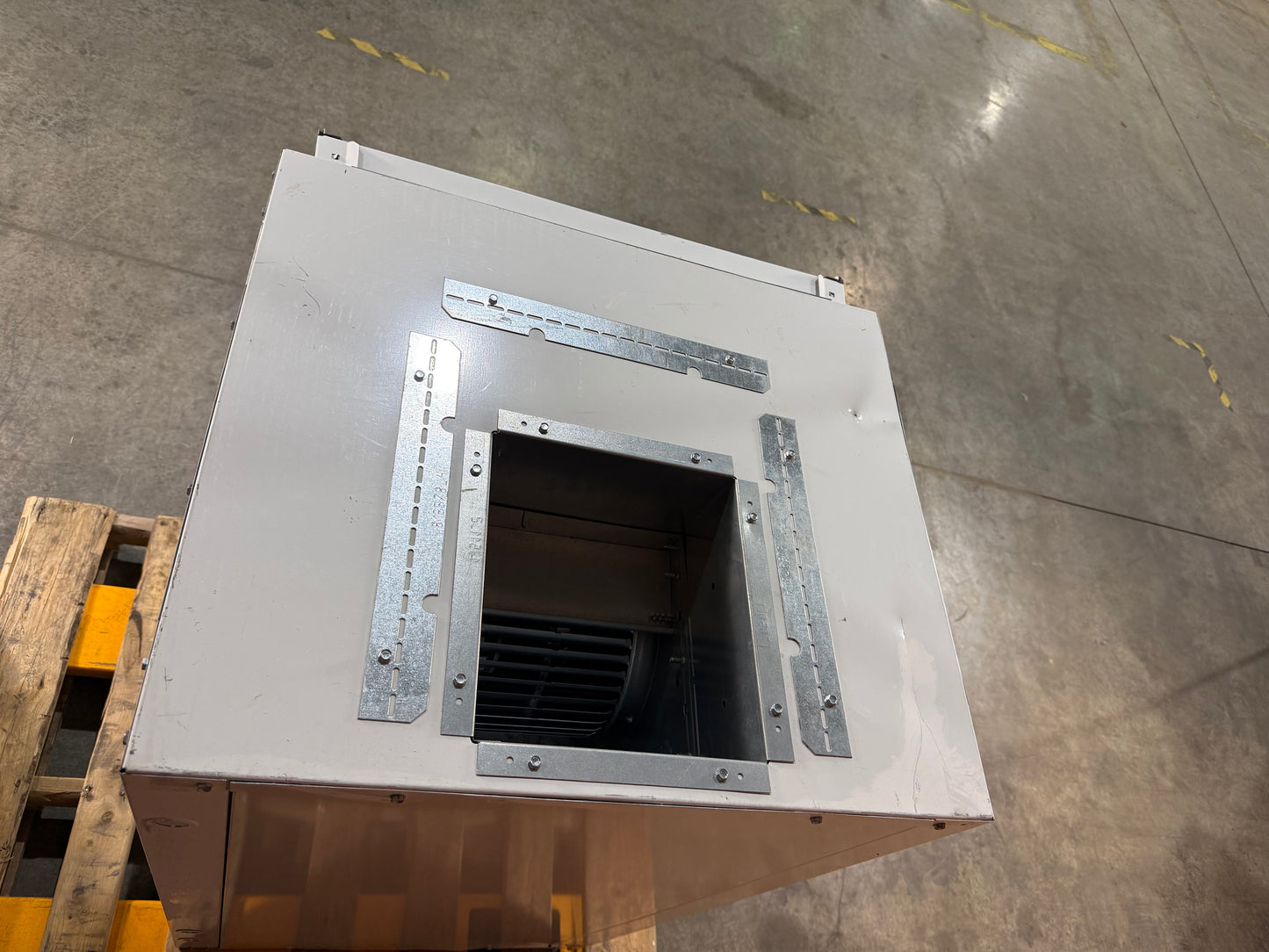

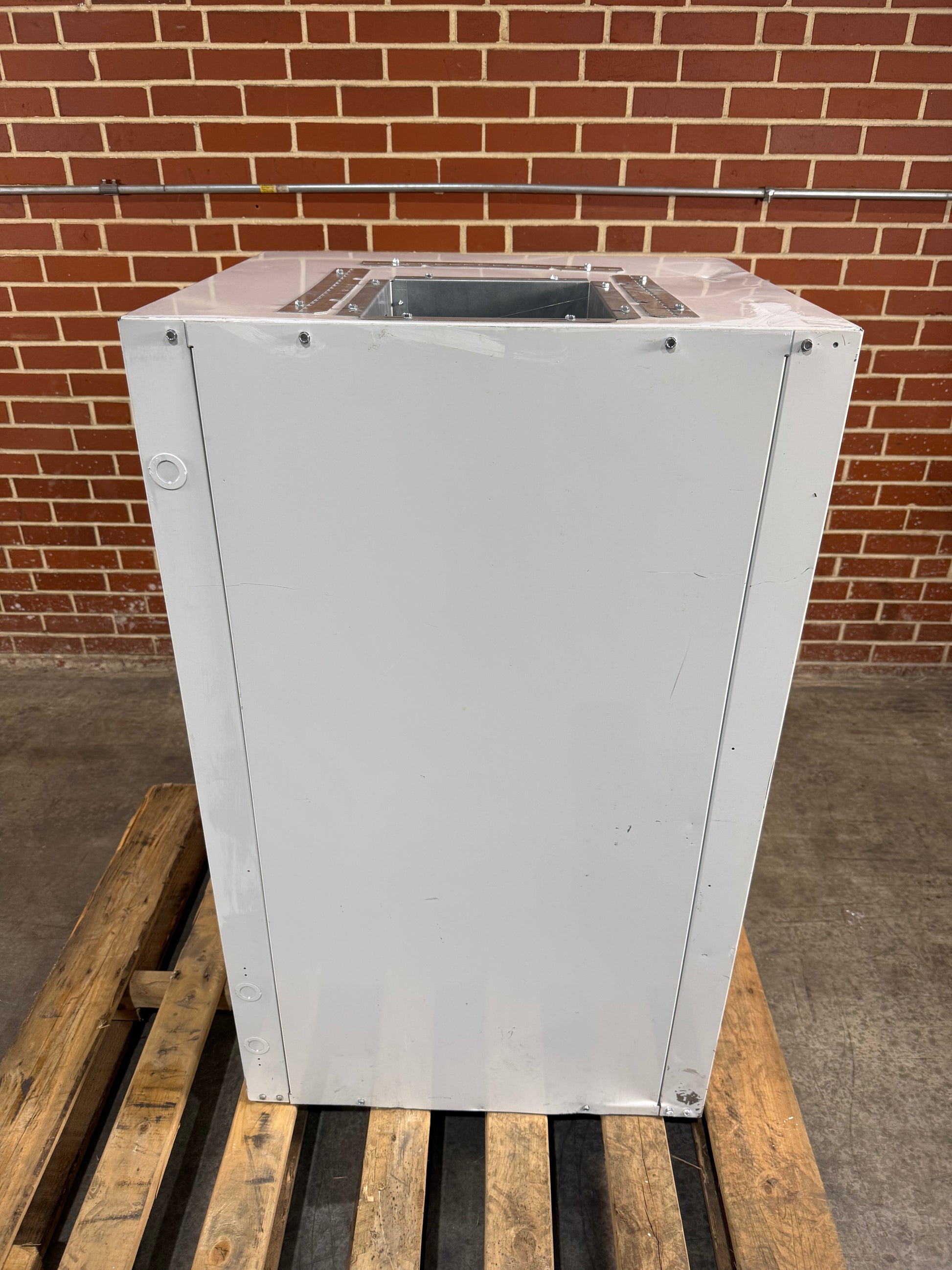

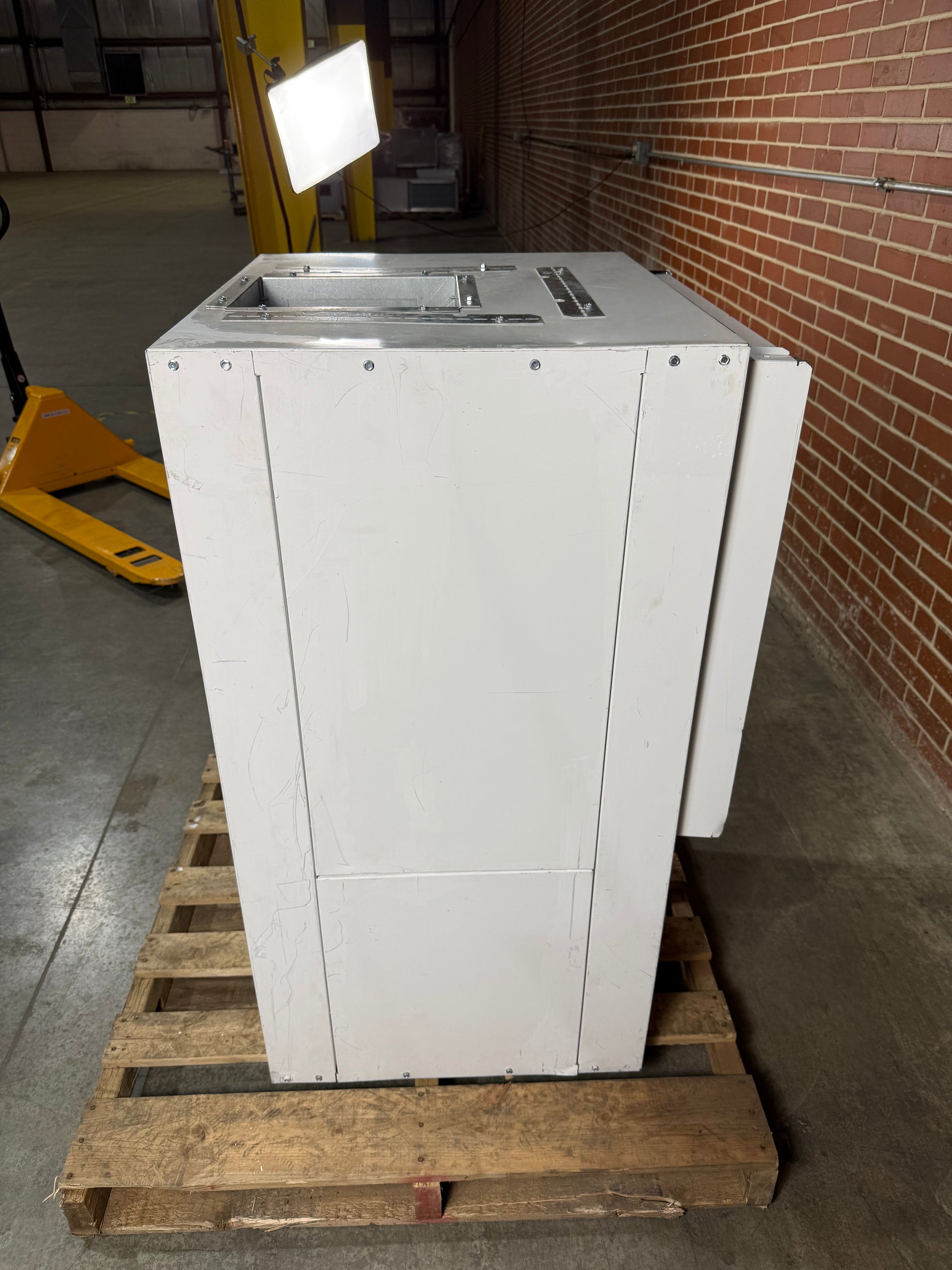

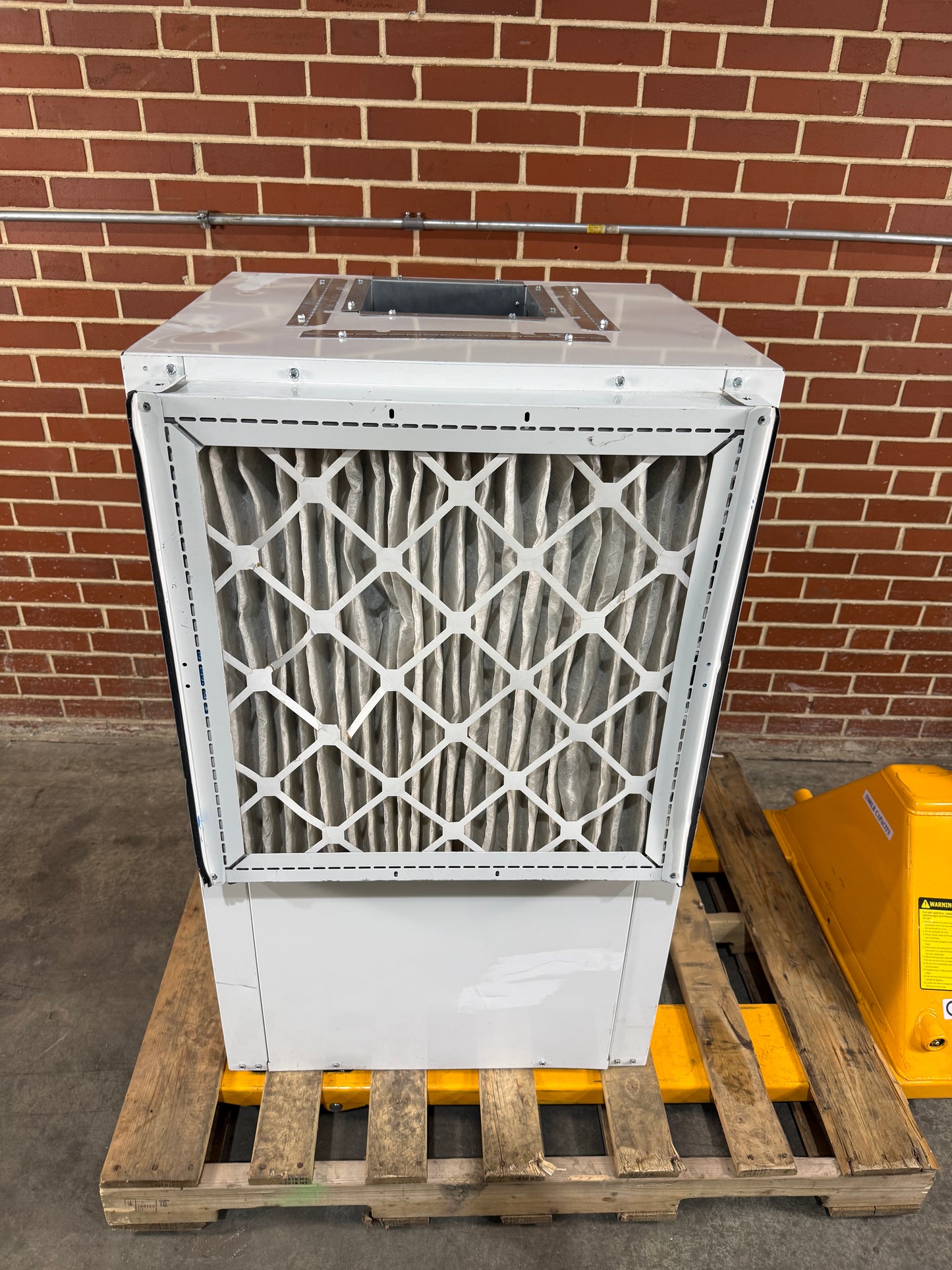

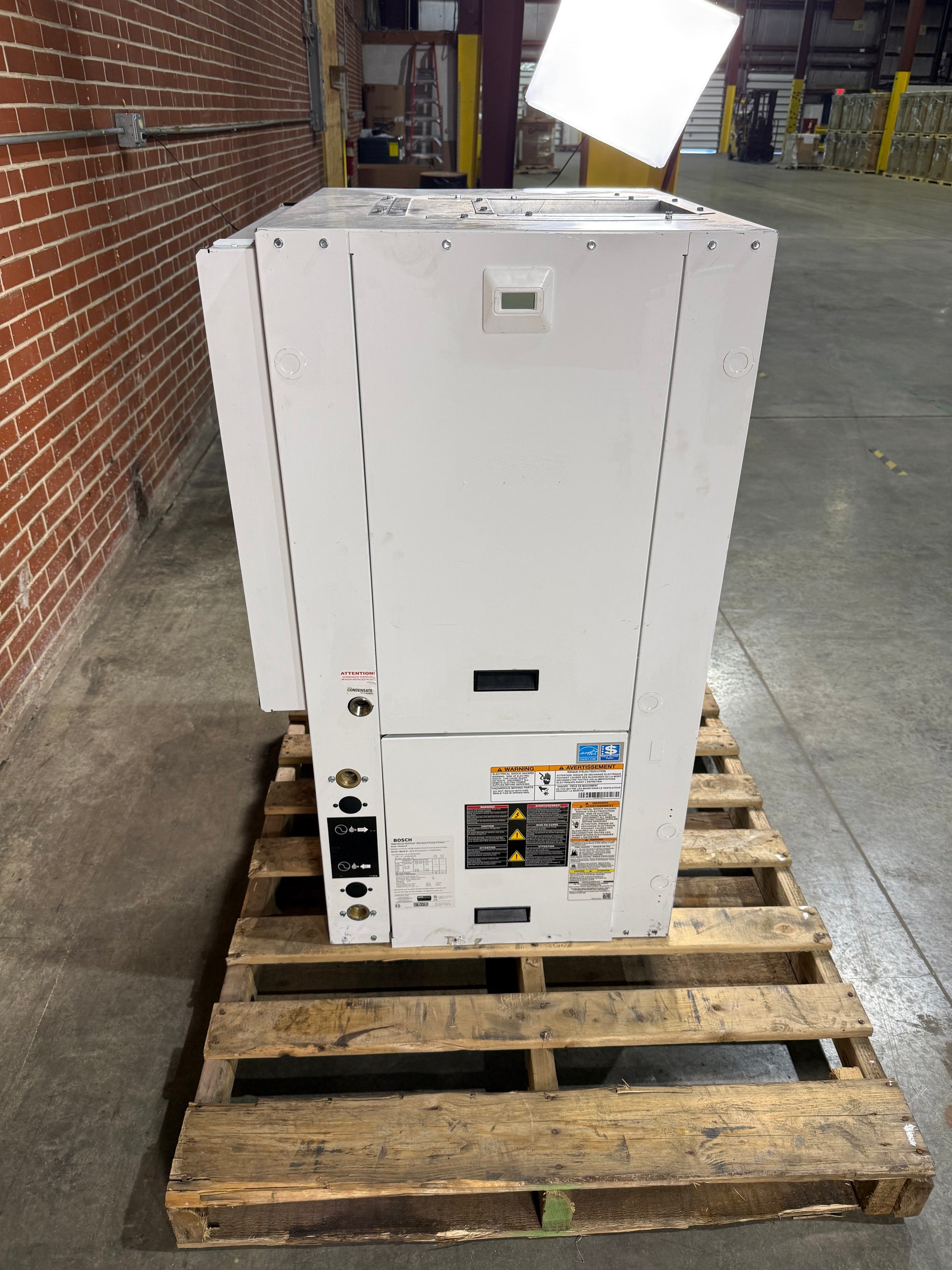

2 Ton Single Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Left Return, EER: 26.4, Stage: Single, Motor Type: ECM, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 45 oz, Water Loop - Cooling BTU: 26,200/Heating BTU: 30,300, Ground Water - Cooling BTU: 29,400/Heating BTU: 24,700, Ground Loop - Cooling BTU: 26,900/Heating BTU: 18,700, Connection Size: 1", Dimensions: 43-3/10''H x 22-1/2''W x 26''D, Weight: 220 lbs ***Minor dents and scratches to top panel, other misc small scratches to bottom panel below coil***
Product Details
Product Details
SCL # :222697-7735057659
Manufacturer Item # :SM024-1VTC-FLTADB-7735057659
Alternate Part # :SM024-1VTC-FLTADB-2940-819-000001-7735057659-S/N
2 Ton Single Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Left Return, EER: 26.4, Stage: Single, Motor Type: ECM, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 45 oz, Water Loop - Cooling BTU: 26,200/Heating BTU: 30,300, Ground Water - Cooling BTU: 29,400/Heating BTU: 24,700, Ground Loop - Cooling BTU: 26,900/Heating BTU: 18,700, Connection Size: 1", Dimensions: 43-3/10''H x 22-1/2''W x 26''D, Weight: 220 lbs ***Minor dents and scratches to top panel, other misc small scratches to bottom panel below coil***
Specifications
Specifications
Cabinet Size:22.5
Capacity:2
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:No Manufacture Packaging
