SCL # :220527
Manufacturer Item # :R104HD-X24K060C

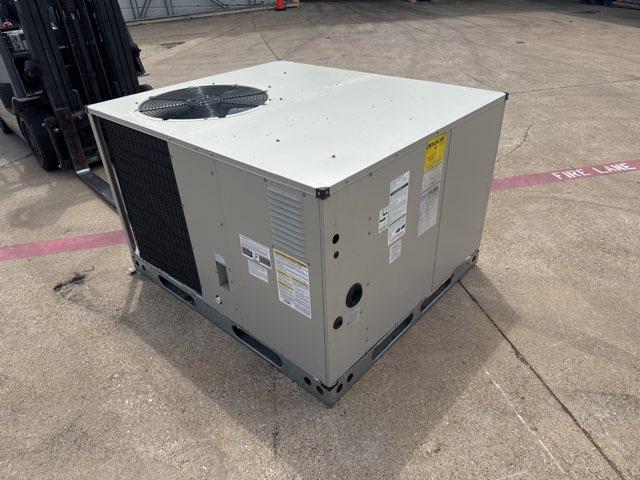

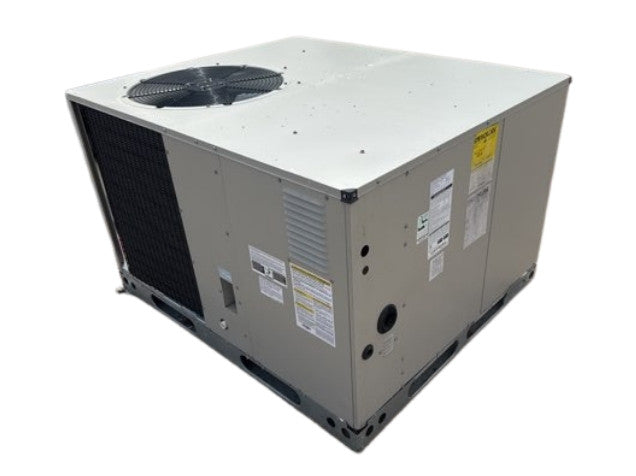

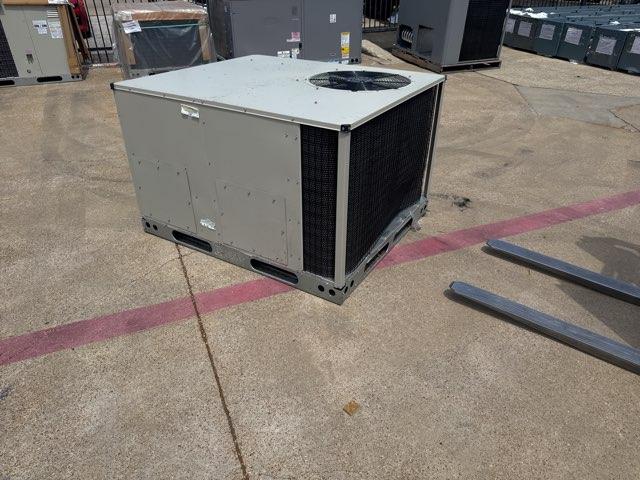

2 Ton Single Stage Horizontal Natural Gas/Electric Packaged Unit, Volts: 208-230, Hertz: 60, Phase:

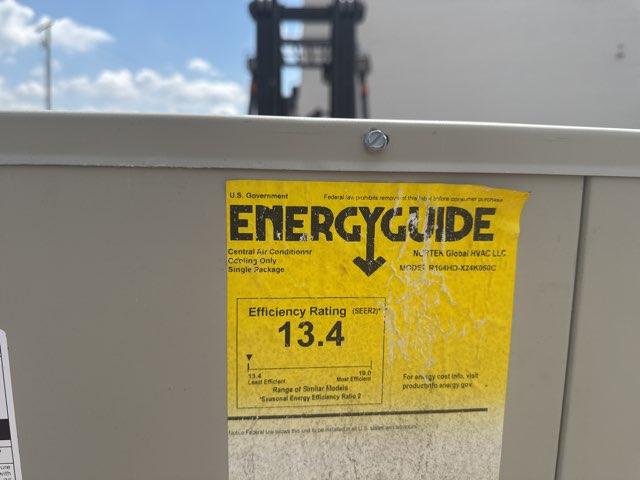

1, Refrigerant: R410A, Factory Charge: 55 oz, EER2: 10.6, Department of Energy Guide SEER2 (Range): 13.4, CFM: 1600, BTU Input: 60,000, BTU Output: 57,000, Cooling BTU: 24,000, Heating BTU:
60,000, Overall Dims: 35''H X 47-1/2''W X 55-4/5''D, Weight: 411 lbs
1, Refrigerant: R410A, Factory Charge: 55 oz, EER2: 10.6, Department of Energy Guide SEER2 (Range): 13.4, CFM: 1600, BTU Input: 60,000, BTU Output: 57,000, Cooling BTU: 24,000, Heating BTU:
60,000, Overall Dims: 35''H X 47-1/2''W X 55-4/5''D, Weight: 411 lbs
Product Details
Product Details
SCL # :220527
Manufacturer Item # :R104HD-X24K060C
2 Ton Single Stage Horizontal Natural Gas/Electric Packaged Unit, Volts: 208-230, Hertz: 60, Phase:
1, Refrigerant: R410A, Factory Charge: 55 oz, EER2: 10.6, Department of Energy Guide SEER2 (Range): 13.4, CFM: 1600, BTU Input: 60,000, BTU Output: 57,000, Cooling BTU: 24,000, Heating BTU:
60,000, Overall Dims: 35''H X 47-1/2''W X 55-4/5''D, Weight: 411 lbs
1, Refrigerant: R410A, Factory Charge: 55 oz, EER2: 10.6, Department of Energy Guide SEER2 (Range): 13.4, CFM: 1600, BTU Input: 60,000, BTU Output: 57,000, Cooling BTU: 24,000, Heating BTU:
60,000, Overall Dims: 35''H X 47-1/2''W X 55-4/5''D, Weight: 411 lbs
Specifications
Specifications
Application:PACKAGED GAS/ELEC UNIT
Cabinet Size:47.5
Capacity:2
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:No Manufacture Packaging
Stage:1
