SCL # :219208

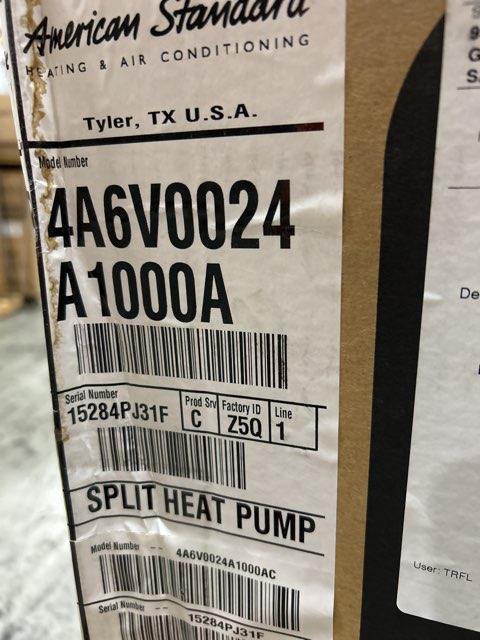

Manufacturer Item # :4A6V0024A1000A

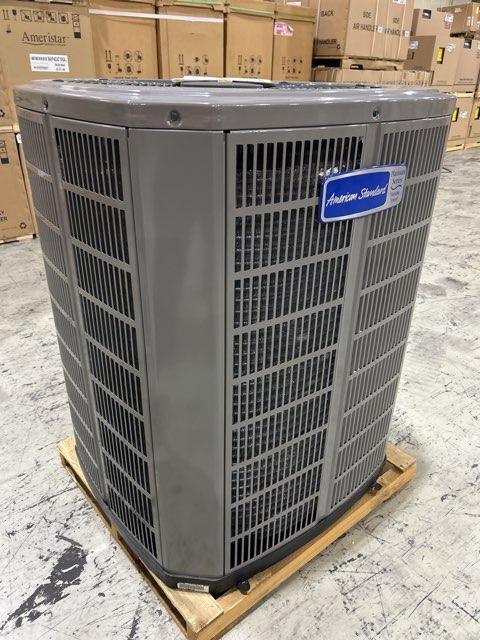

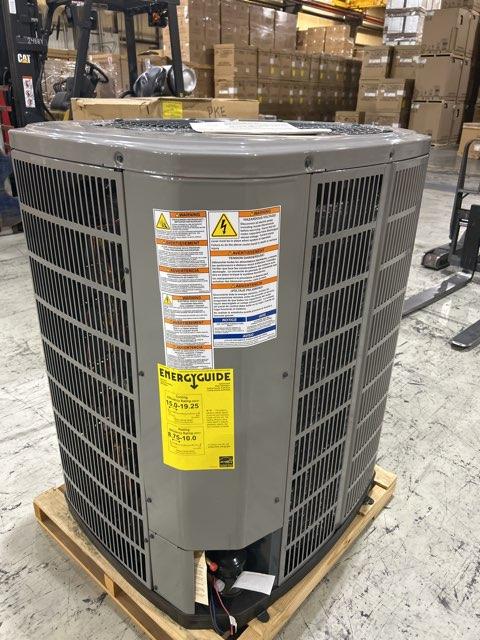

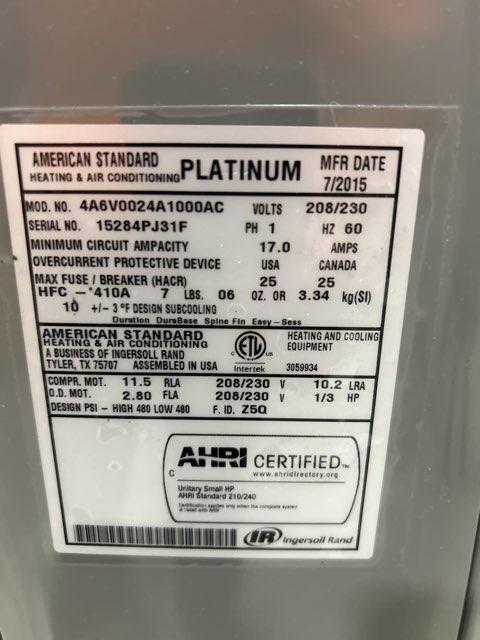

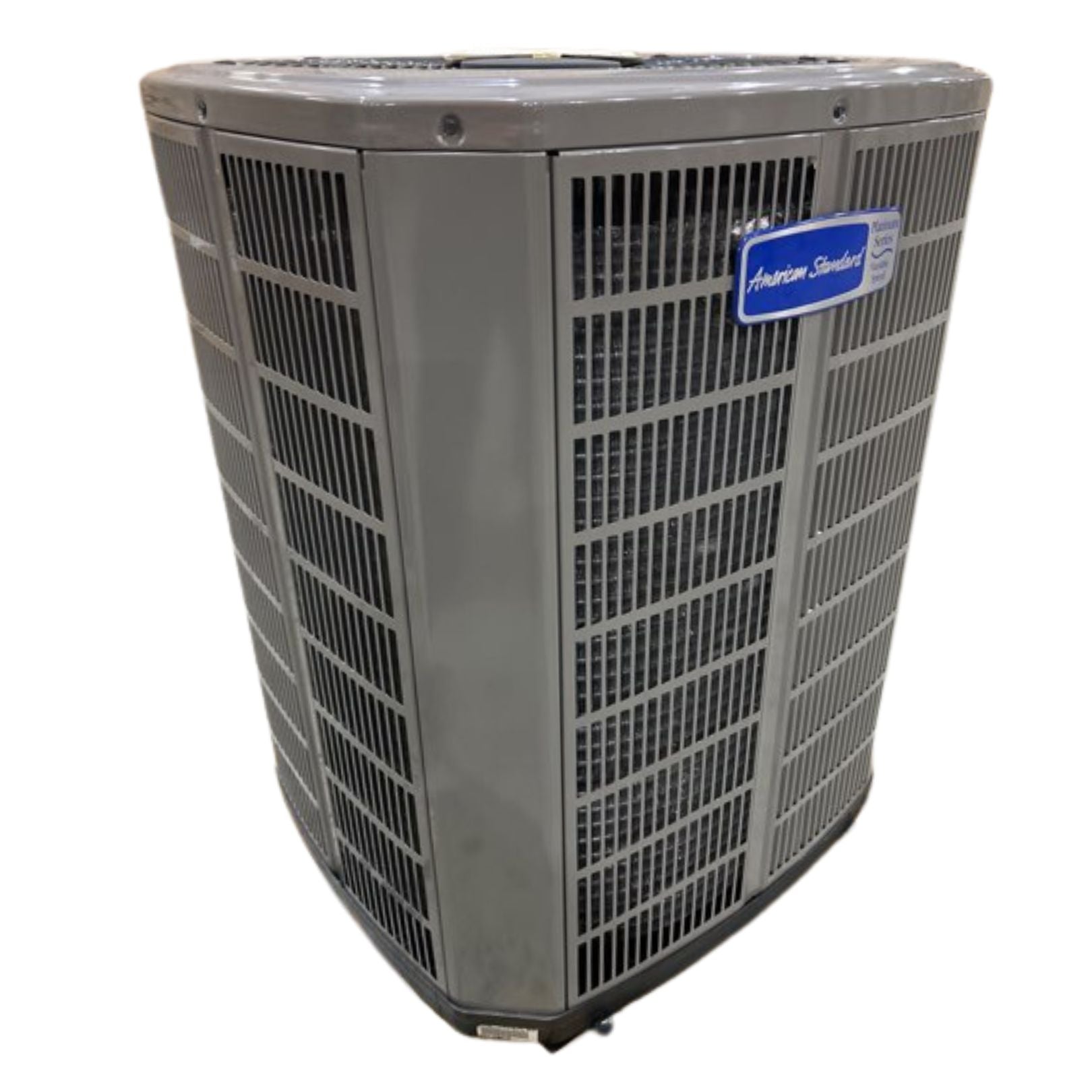

2 Ton Variable Speed Split-System Communicating Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER: 20, Speed: Variable, Refrigerant: R410A, Connection Size:
3/8"X5/8", Connection Type: Sweat, Factory Charge: 7 lbs 6 oz, Type: Air, Dimensions: 40-3/4''H x 32-5/8''W x 29-3/4''D, Weight: 204 lbs **Mfg Date: 7/2015**
3/8"X5/8", Connection Type: Sweat, Factory Charge: 7 lbs 6 oz, Type: Air, Dimensions: 40-3/4''H x 32-5/8''W x 29-3/4''D, Weight: 204 lbs **Mfg Date: 7/2015**
Product Details
Product Details
SCL # :219208
Manufacturer Item # :4A6V0024A1000A
2 Ton Variable Speed Split-System Communicating Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER: 20, Speed: Variable, Refrigerant: R410A, Connection Size:
3/8"X5/8", Connection Type: Sweat, Factory Charge: 7 lbs 6 oz, Type: Air, Dimensions: 40-3/4''H x 32-5/8''W x 29-3/4''D, Weight: 204 lbs **Mfg Date: 7/2015**
3/8"X5/8", Connection Type: Sweat, Factory Charge: 7 lbs 6 oz, Type: Air, Dimensions: 40-3/4''H x 32-5/8''W x 29-3/4''D, Weight: 204 lbs **Mfg Date: 7/2015**
Specifications
Specifications
Cabinet Size:32.625
Capacity:2
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:3
System Controls:COMMUNICATING
