SCL # :220456
Manufacturer Item # :JCH024AGRP0CC2C

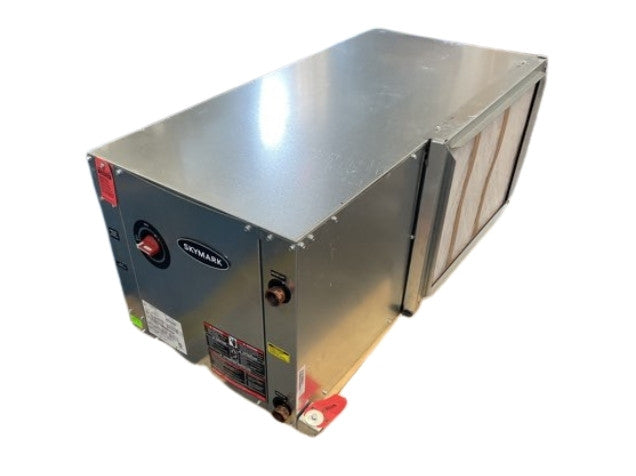

2 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration:
Horizontal, Return Air Option: Right Return, EER: 21.5, Stage: Two, Motor Type: ECM, Refrigerant:
R410A, Metering Device: TXV, Factory Charge: - lbs 40 oz, Water Loop - Cooling BTU: 23,500/Heating BTU: 27,500, Ground Water - Cooling BTU: 27,000/Heating BTU: 23,500, Ground Loop - Cooling BTU:

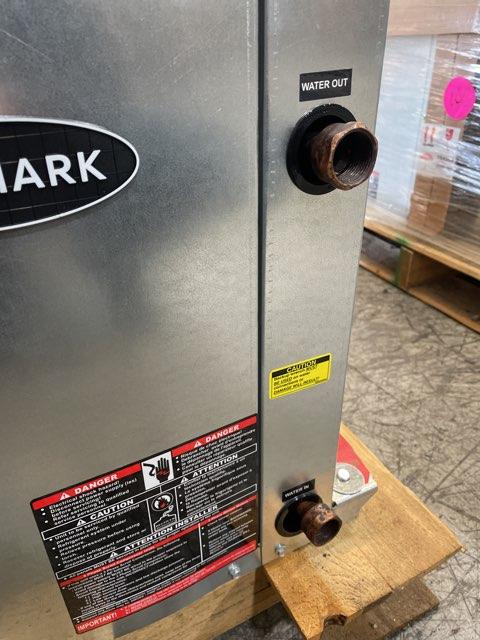

24,500/Heating BTU: 18,600, Connection Size: 3/4", Dimensions: 7-1/10''H x 27-1/5''W x 43-1/10''D, Weight: 174 lbs
Horizontal, Return Air Option: Right Return, EER: 21.5, Stage: Two, Motor Type: ECM, Refrigerant:
R410A, Metering Device: TXV, Factory Charge: - lbs 40 oz, Water Loop - Cooling BTU: 23,500/Heating BTU: 27,500, Ground Water - Cooling BTU: 27,000/Heating BTU: 23,500, Ground Loop - Cooling BTU:
24,500/Heating BTU: 18,600, Connection Size: 3/4", Dimensions: 7-1/10''H x 27-1/5''W x 43-1/10''D, Weight: 174 lbs
Product Details
Product Details
SCL # :220456
Manufacturer Item # :JCH024AGRP0CC2C
2 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration:
Horizontal, Return Air Option: Right Return, EER: 21.5, Stage: Two, Motor Type: ECM, Refrigerant:
R410A, Metering Device: TXV, Factory Charge: - lbs 40 oz, Water Loop - Cooling BTU: 23,500/Heating BTU: 27,500, Ground Water - Cooling BTU: 27,000/Heating BTU: 23,500, Ground Loop - Cooling BTU:
24,500/Heating BTU: 18,600, Connection Size: 3/4", Dimensions: 7-1/10''H x 27-1/5''W x 43-1/10''D, Weight: 174 lbs
Horizontal, Return Air Option: Right Return, EER: 21.5, Stage: Two, Motor Type: ECM, Refrigerant:
R410A, Metering Device: TXV, Factory Charge: - lbs 40 oz, Water Loop - Cooling BTU: 23,500/Heating BTU: 27,500, Ground Water - Cooling BTU: 27,000/Heating BTU: 23,500, Ground Loop - Cooling BTU:
24,500/Heating BTU: 18,600, Connection Size: 3/4", Dimensions: 7-1/10''H x 27-1/5''W x 43-1/10''D, Weight: 174 lbs
Specifications
Specifications
Cabinet Size:27.2
Capacity:2
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:No Manufacture Packaging
