SCL # :181694-DAMAGED
Manufacturer Item # :44YU13-DAMAGED

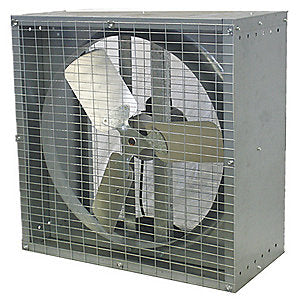

Agricultural Exhaust Fan, Type: Assembled Direct Drive ,Propeller Dia. (In.): 24, CFM 0.000-In. SP:
5618, CFM 0.050-In. SP: 5192, CFM 0.100-In. SP: 4845, CFM 0.150-In. SP: 4505, CFM/Watt 0.000-In.
SP: 11.3, CFM/Watt 0.050-In. SP: 10.2, CFM/Watt 0.100-In. SP: 9.3, CFM/Watt 0.150-In. SP: 8.4, Fan RPM: 1143, Voltage: 115/230, Hz: 60, Phase: 1, Full Load Amps: 5.6/2.8, HP: Frac12;, Motor RPM:
1100 ,Motor Type: Permanent Split Capacitor,Motor: Enclosure TEAO,Motor Insulation: Class B ,Height (In.): 29-5/16, Width (In.): 29-5/16, Max. Depth (In.): 12.5 ,Opening Required H (In.):
30, Opening Required W (In.): 30, Venturi Clearance Dia. (In.): 5/16, Venturi Depth (In.): 3-1/2, Mounting Location: Vertical ,Max. Ambient Temp. (F): 104, Shaft Dia. (In.):5/8 ,Bearing Type:
Sealed Ball, Number Of Blades: 3,Propeller Material: Galvanized Steel ,Frame Material: Galvanized Steel, Frame Finish: Galvanized Steel, Mesh Size: 1 X 2, Agency Compliance Motor Is UL Recognized For USA & Canada. ,Includes :1 X 2 Mesh Screen, Made In USA.
Has Minor Damage To The Metal Mesh And Minor Sheet Metal Damage
5618, CFM 0.050-In. SP: 5192, CFM 0.100-In. SP: 4845, CFM 0.150-In. SP: 4505, CFM/Watt 0.000-In.
SP: 11.3, CFM/Watt 0.050-In. SP: 10.2, CFM/Watt 0.100-In. SP: 9.3, CFM/Watt 0.150-In. SP: 8.4, Fan RPM: 1143, Voltage: 115/230, Hz: 60, Phase: 1, Full Load Amps: 5.6/2.8, HP: Frac12;, Motor RPM:
1100 ,Motor Type: Permanent Split Capacitor,Motor: Enclosure TEAO,Motor Insulation: Class B ,Height (In.): 29-5/16, Width (In.): 29-5/16, Max. Depth (In.): 12.5 ,Opening Required H (In.):
30, Opening Required W (In.): 30, Venturi Clearance Dia. (In.): 5/16, Venturi Depth (In.): 3-1/2, Mounting Location: Vertical ,Max. Ambient Temp. (F): 104, Shaft Dia. (In.):5/8 ,Bearing Type:
Sealed Ball, Number Of Blades: 3,Propeller Material: Galvanized Steel ,Frame Material: Galvanized Steel, Frame Finish: Galvanized Steel, Mesh Size: 1 X 2, Agency Compliance Motor Is UL Recognized For USA & Canada. ,Includes :1 X 2 Mesh Screen, Made In USA.
Has Minor Damage To The Metal Mesh And Minor Sheet Metal Damage
Product Details
Product Details
SCL # :181694-DAMAGED
Manufacturer Item # :44YU13-DAMAGED
Agricultural Exhaust Fan, Type: Assembled Direct Drive ,Propeller Dia. (In.): 24, CFM 0.000-In. SP:
5618, CFM 0.050-In. SP: 5192, CFM 0.100-In. SP: 4845, CFM 0.150-In. SP: 4505, CFM/Watt 0.000-In.
SP: 11.3, CFM/Watt 0.050-In. SP: 10.2, CFM/Watt 0.100-In. SP: 9.3, CFM/Watt 0.150-In. SP: 8.4, Fan RPM: 1143, Voltage: 115/230, Hz: 60, Phase: 1, Full Load Amps: 5.6/2.8, HP: Frac12;, Motor RPM:
1100 ,Motor Type: Permanent Split Capacitor,Motor: Enclosure TEAO,Motor Insulation: Class B ,Height (In.): 29-5/16, Width (In.): 29-5/16, Max. Depth (In.): 12.5 ,Opening Required H (In.):
30, Opening Required W (In.): 30, Venturi Clearance Dia. (In.): 5/16, Venturi Depth (In.): 3-1/2, Mounting Location: Vertical ,Max. Ambient Temp. (F): 104, Shaft Dia. (In.):5/8 ,Bearing Type:
Sealed Ball, Number Of Blades: 3,Propeller Material: Galvanized Steel ,Frame Material: Galvanized Steel, Frame Finish: Galvanized Steel, Mesh Size: 1 X 2, Agency Compliance Motor Is UL Recognized For USA & Canada. ,Includes :1 X 2 Mesh Screen, Made In USA.
Has Minor Damage To The Metal Mesh And Minor Sheet Metal Damage
5618, CFM 0.050-In. SP: 5192, CFM 0.100-In. SP: 4845, CFM 0.150-In. SP: 4505, CFM/Watt 0.000-In.
SP: 11.3, CFM/Watt 0.050-In. SP: 10.2, CFM/Watt 0.100-In. SP: 9.3, CFM/Watt 0.150-In. SP: 8.4, Fan RPM: 1143, Voltage: 115/230, Hz: 60, Phase: 1, Full Load Amps: 5.6/2.8, HP: Frac12;, Motor RPM:
1100 ,Motor Type: Permanent Split Capacitor,Motor: Enclosure TEAO,Motor Insulation: Class B ,Height (In.): 29-5/16, Width (In.): 29-5/16, Max. Depth (In.): 12.5 ,Opening Required H (In.):
30, Opening Required W (In.): 30, Venturi Clearance Dia. (In.): 5/16, Venturi Depth (In.): 3-1/2, Mounting Location: Vertical ,Max. Ambient Temp. (F): 104, Shaft Dia. (In.):5/8 ,Bearing Type:
Sealed Ball, Number Of Blades: 3,Propeller Material: Galvanized Steel ,Frame Material: Galvanized Steel, Frame Finish: Galvanized Steel, Mesh Size: 1 X 2, Agency Compliance Motor Is UL Recognized For USA & Canada. ,Includes :1 X 2 Mesh Screen, Made In USA.
Has Minor Damage To The Metal Mesh And Minor Sheet Metal Damage
Specifications
Specifications
Cabinet Size:40
Packaging:No Manufacture Packaging
