SCL # :220095
Manufacturer Item # :RHP15042B21S/TH4210U2002
Alternate Part # :218092,219760

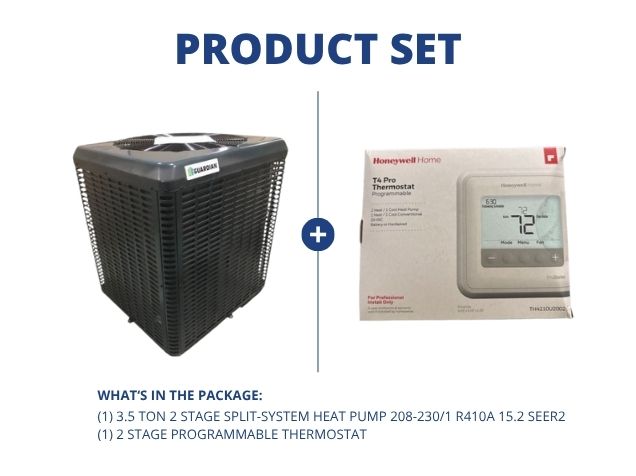

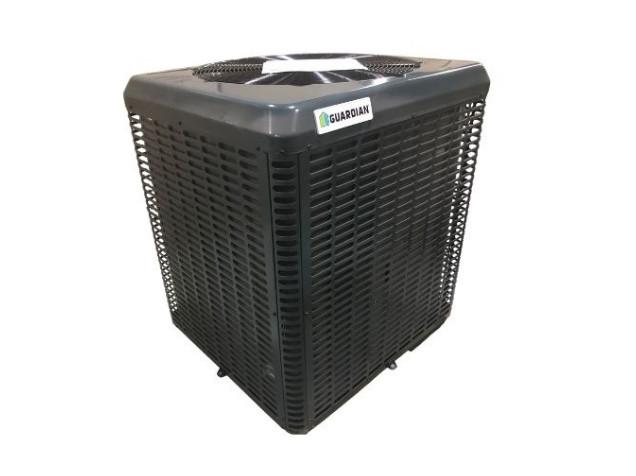

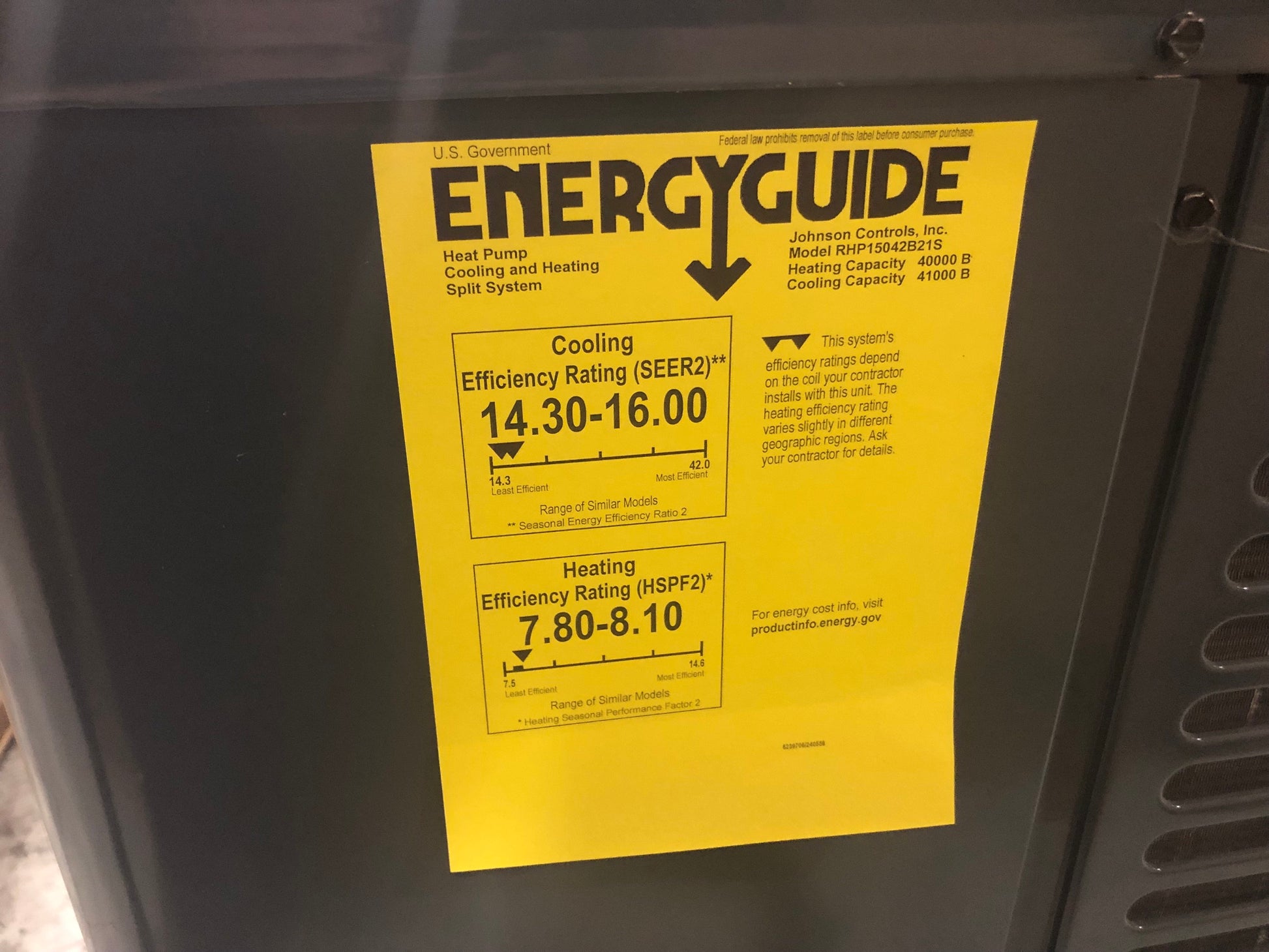

3.5 Ton Split-System Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department Of Energy Guide SEER2: 15.2, Stage: Two, Refrigerant: R410A, Connection Size: 3/8"X7/8", Connection Type:

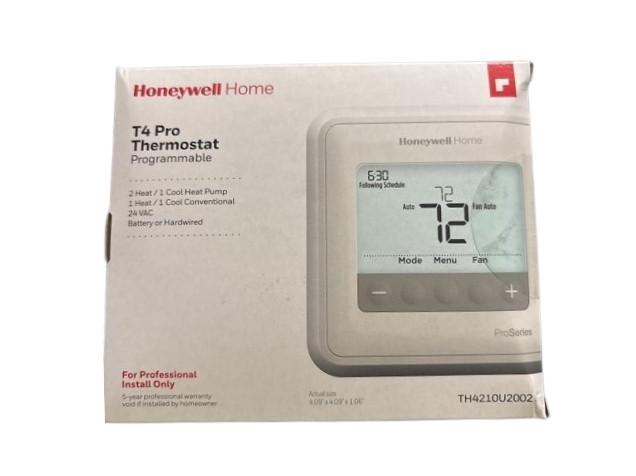

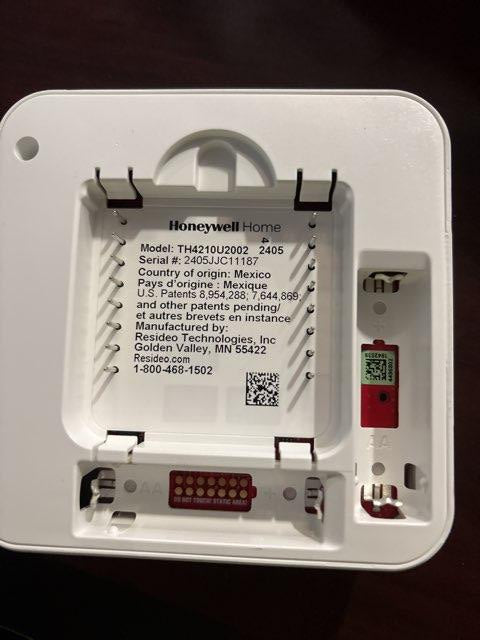

Sweat, Factory Charge: 9 Lbs, Type: Air, Dimensions: 39-1/2''H X 35-1/4''W X 35-1/4''D, Weight: 213 Lbs Paired with 7-Day Programmable Digital Simple Push Button Thermostat, 1-Heat/1-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: Hardwired, Battery, Color: White, Applications: Heat Pumps, Conventional system, Dimensions:
4-1/16''H x 4-1/16''W x 1-5/32''D
Sweat, Factory Charge: 9 Lbs, Type: Air, Dimensions: 39-1/2''H X 35-1/4''W X 35-1/4''D, Weight: 213 Lbs Paired with 7-Day Programmable Digital Simple Push Button Thermostat, 1-Heat/1-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: Hardwired, Battery, Color: White, Applications: Heat Pumps, Conventional system, Dimensions:
4-1/16''H x 4-1/16''W x 1-5/32''D
Product Details
Product Details
SCL # :220095
Manufacturer Item # :RHP15042B21S/TH4210U2002
Alternate Part # :218092,219760
3.5 Ton Split-System Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department Of Energy Guide SEER2: 15.2, Stage: Two, Refrigerant: R410A, Connection Size: 3/8"X7/8", Connection Type:
Sweat, Factory Charge: 9 Lbs, Type: Air, Dimensions: 39-1/2''H X 35-1/4''W X 35-1/4''D, Weight: 213 Lbs Paired with 7-Day Programmable Digital Simple Push Button Thermostat, 1-Heat/1-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: Hardwired, Battery, Color: White, Applications: Heat Pumps, Conventional system, Dimensions:
4-1/16''H x 4-1/16''W x 1-5/32''D
Sweat, Factory Charge: 9 Lbs, Type: Air, Dimensions: 39-1/2''H X 35-1/4''W X 35-1/4''D, Weight: 213 Lbs Paired with 7-Day Programmable Digital Simple Push Button Thermostat, 1-Heat/1-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: Hardwired, Battery, Color: White, Applications: Heat Pumps, Conventional system, Dimensions:
4-1/16''H x 4-1/16''W x 1-5/32''D
Specifications
Specifications
Cabinet Size:35.25
Capacity:3.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:2
System Controls:NON-COMMUNICATING
