SCL # :223259
Manufacturer Item # :LV041-1VTC-FRTPUD

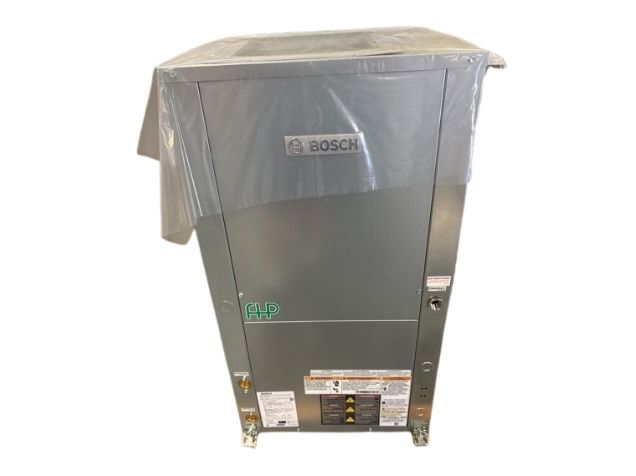

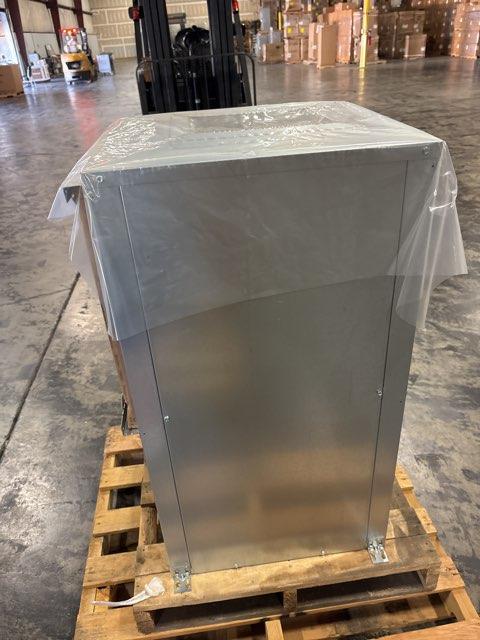

3.5 Ton Single Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Right Return, EER: 16.2, Stage: Single, Motor Type: PSC, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 41 oz, Water Loop - Cooling BTU: 35,600/Heating BTU: 39,100, Ground Loop - Cooling BTU: 37,300/Heating BTU: 27,400, Connection Size: 3/4", Dimensions: 39-1/4''H x 21-1/2''W x 21-1/2''D, Weight: 217 lbs
Product Details
Product Details
SCL # :223259
Manufacturer Item # :LV041-1VTC-FRTPUD
3.5 Ton Single Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Right Return, EER: 16.2, Stage: Single, Motor Type: PSC, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 41 oz, Water Loop - Cooling BTU: 35,600/Heating BTU: 39,100, Ground Loop - Cooling BTU: 37,300/Heating BTU: 27,400, Connection Size: 3/4", Dimensions: 39-1/4''H x 21-1/2''W x 21-1/2''D, Weight: 217 lbs
Specifications
Specifications
Cabinet Size:21.5
Capacity:3.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
