SCL # :219777
Manufacturer Item # :4AC13L42P-11A/FF75214TS80M
Alternate Part # :189009,217589

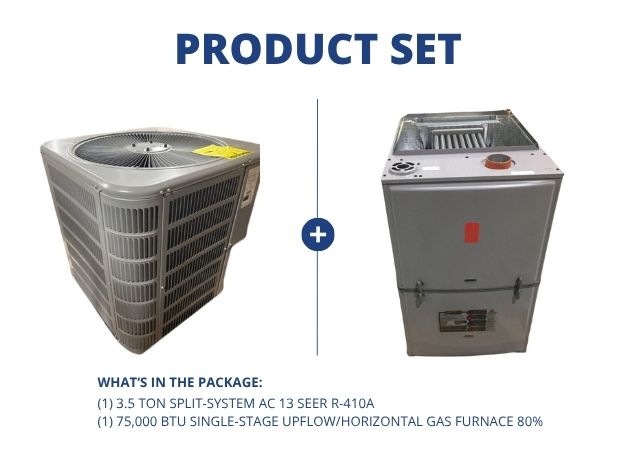

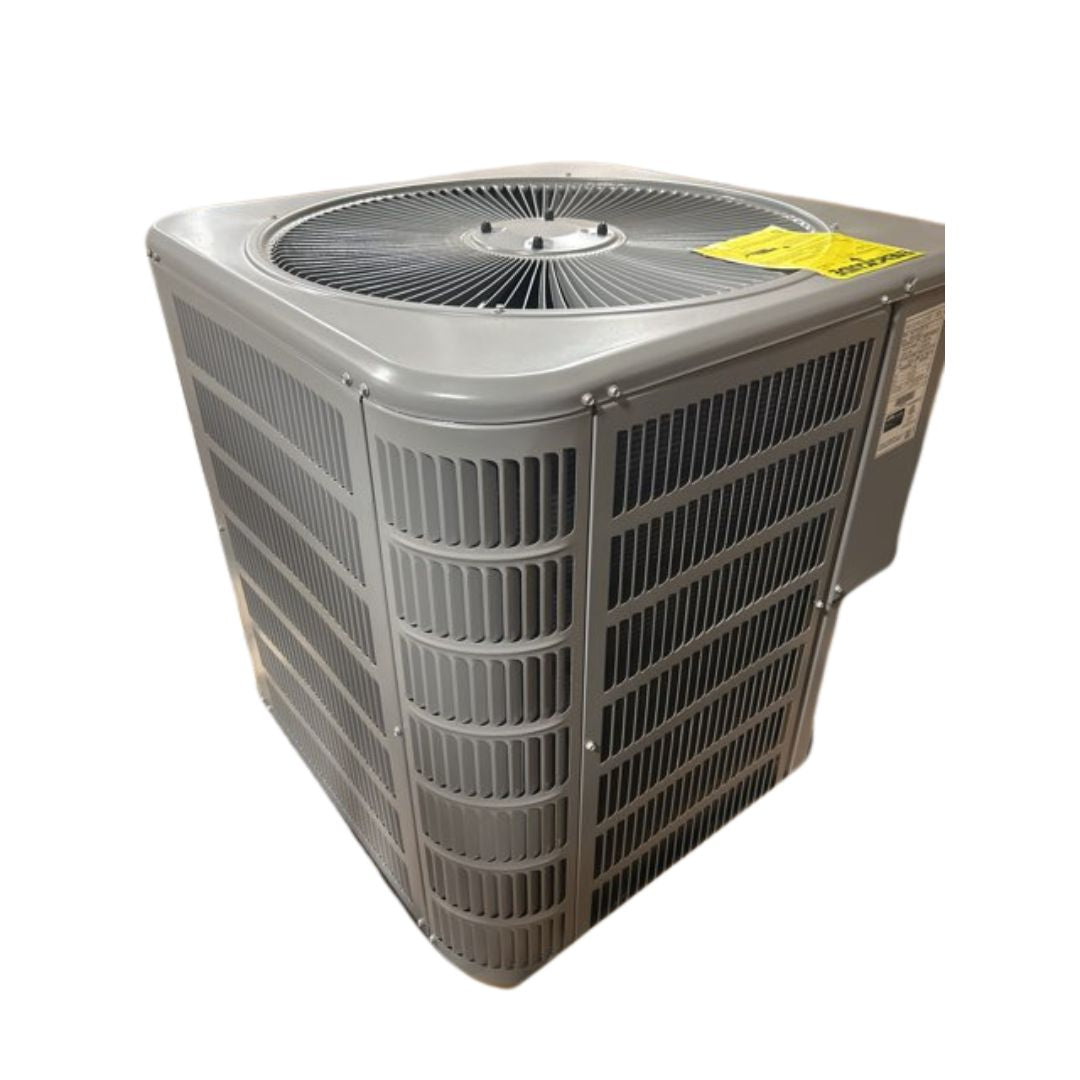

3.5 Ton Split-System Air Conditioner, Volts:208/230, Hertz:60, Phase:1, RLA:18.8, LRA:112, FLA:1.7, SEER:13, Refrigerant:R-410A, SEER: 13, Type:Air Source, Design Pressure:(HI/LO) 446 PSIG/236 PSIG, Connections:3/8" X 7/8", Connection Type:Sweat, Dims:29"H X 28-1/4"W X 28-1/4"D, Weight:195 Lbs, In Mfg Box, Made In Mexico Paired with 75,000 BTU Upflow/Horizontal Gas Furnace, Efficiency: 80, Volts: 115, Hertz: 60, Phase:
1, CFM: 1608, Stage: Single, Speed: Multi, Motor Type: ECM, BTU Input: 75000, BTU Output: 60,000, Dimensions: 34"H X 21"W X 29-19/32"D **Unit includes a Manufacture Warranty through June of 2029, No Registration Required**
1, CFM: 1608, Stage: Single, Speed: Multi, Motor Type: ECM, BTU Input: 75000, BTU Output: 60,000, Dimensions: 34"H X 21"W X 29-19/32"D **Unit includes a Manufacture Warranty through June of 2029, No Registration Required**
Product Details
Product Details
SCL # :219777
Manufacturer Item # :4AC13L42P-11A/FF75214TS80M
Alternate Part # :189009,217589
3.5 Ton Split-System Air Conditioner, Volts:208/230, Hertz:60, Phase:1, RLA:18.8, LRA:112, FLA:1.7, SEER:13, Refrigerant:R-410A, SEER: 13, Type:Air Source, Design Pressure:(HI/LO) 446 PSIG/236 PSIG, Connections:3/8" X 7/8", Connection Type:Sweat, Dims:29"H X 28-1/4"W X 28-1/4"D, Weight:195 Lbs, In Mfg Box, Made In Mexico Paired with 75,000 BTU Upflow/Horizontal Gas Furnace, Efficiency: 80, Volts: 115, Hertz: 60, Phase:
1, CFM: 1608, Stage: Single, Speed: Multi, Motor Type: ECM, BTU Input: 75000, BTU Output: 60,000, Dimensions: 34"H X 21"W X 29-19/32"D **Unit includes a Manufacture Warranty through June of 2029, No Registration Required**
1, CFM: 1608, Stage: Single, Speed: Multi, Motor Type: ECM, BTU Input: 75000, BTU Output: 60,000, Dimensions: 34"H X 21"W X 29-19/32"D **Unit includes a Manufacture Warranty through June of 2029, No Registration Required**
Specifications
Specifications
Cabinet Size:28.25
Capacity:3.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
