SCL # :221050
Manufacturer Item # :YCD42B23SA/AVPTC49D14
Alternate Part # :198765,218624

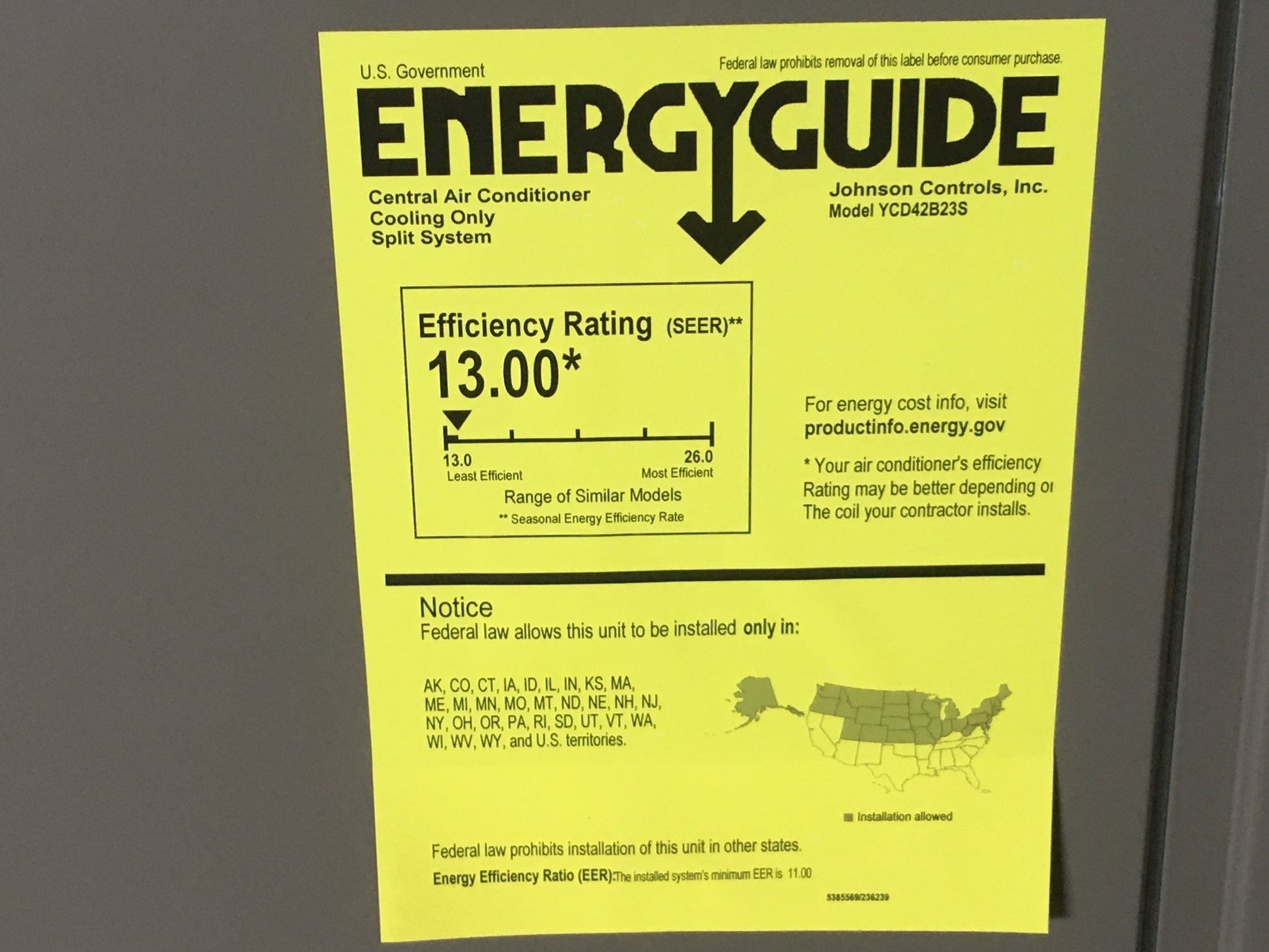

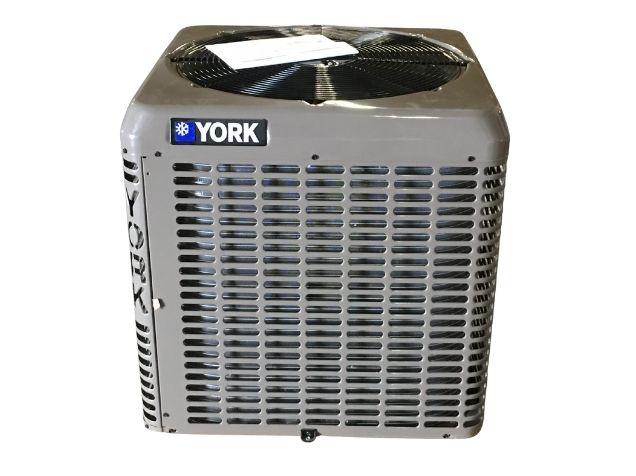

3.5 ton LX series split-system air conditioner; Volts: 208-230, Hertz: 60, Phase: 1, SEER: 13, Refrigerant: R-410A, Design Pressure High/Low: 448 PSIG/236 PSIG, Factory Charge: 4 lbs 6 oz, Connections: 3/8" x 7/8" sweat, Type: air source, small footprint, Dims: 30"H x 29-1/4"W x 29-1/4"D, Weight: 165 lbs, in mfg box, made in USA
paired with:

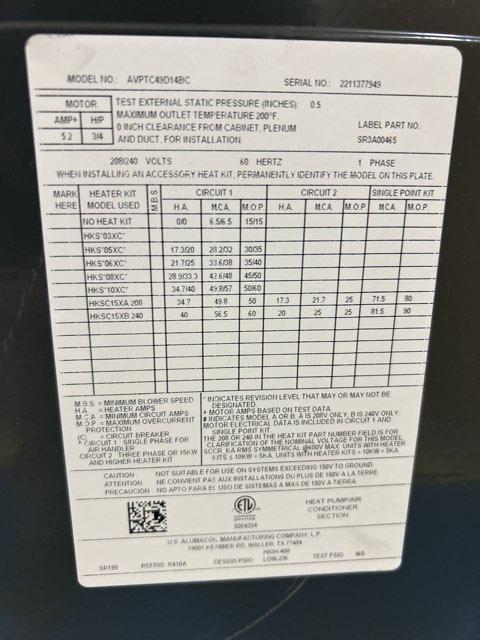

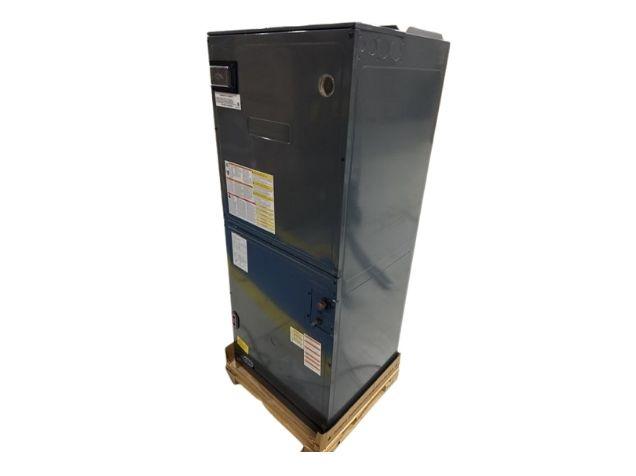

4 ton AC/HP communicating compatible air handler; Airflow: multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1530, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 58"H x 24-1/2"W x 21"D
Note: Requires a DFK-D Kit if using in downflow position (not included)
**COMPATIBLE HEAT KIT IS NOT INCLUDED (Model#s HKSX03-10 KW and HKSC05-25 KW)**
**COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:
4 ton AC/HP communicating compatible air handler; Airflow: multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1530, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 58"H x 24-1/2"W x 21"D
Note: Requires a DFK-D Kit if using in downflow position (not included)
**COMPATIBLE HEAT KIT IS NOT INCLUDED (Model#s HKSX03-10 KW and HKSC05-25 KW)**
**COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
Product Details
Product Details
SCL # :221050
Manufacturer Item # :YCD42B23SA/AVPTC49D14
Alternate Part # :198765,218624
3.5 ton LX series split-system air conditioner; Volts: 208-230, Hertz: 60, Phase: 1, SEER: 13, Refrigerant: R-410A, Design Pressure High/Low: 448 PSIG/236 PSIG, Factory Charge: 4 lbs 6 oz, Connections: 3/8" x 7/8" sweat, Type: air source, small footprint, Dims: 30"H x 29-1/4"W x 29-1/4"D, Weight: 165 lbs, in mfg box, made in USA
paired with:
4 ton AC/HP communicating compatible air handler; Airflow: multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1530, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 58"H x 24-1/2"W x 21"D
Note: Requires a DFK-D Kit if using in downflow position (not included)
**COMPATIBLE HEAT KIT IS NOT INCLUDED (Model#s HKSX03-10 KW and HKSC05-25 KW)**
**COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:
4 ton AC/HP communicating compatible air handler; Airflow: multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1530, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 58"H x 24-1/2"W x 21"D
Note: Requires a DFK-D Kit if using in downflow position (not included)
**COMPATIBLE HEAT KIT IS NOT INCLUDED (Model#s HKSX03-10 KW and HKSC05-25 KW)**
**COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
Specifications
Specifications
Cabinet Size:29.25
Capacity:3.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
