SCL # :221046
Manufacturer Item # :TC3B4223S-CHAMPION/DRAH2TA4821ASTANJ
Alternate Part # :218208,220135

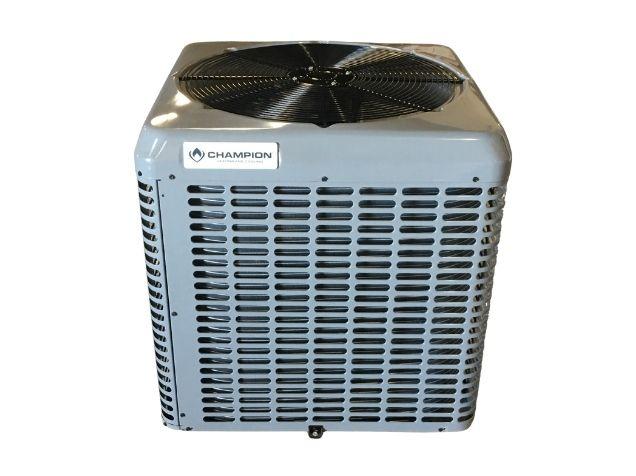

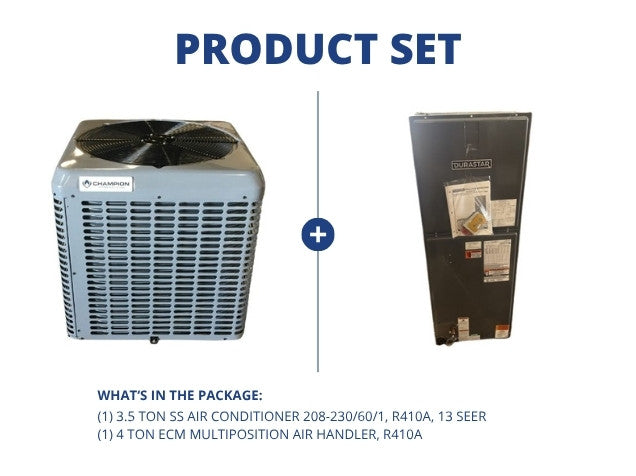

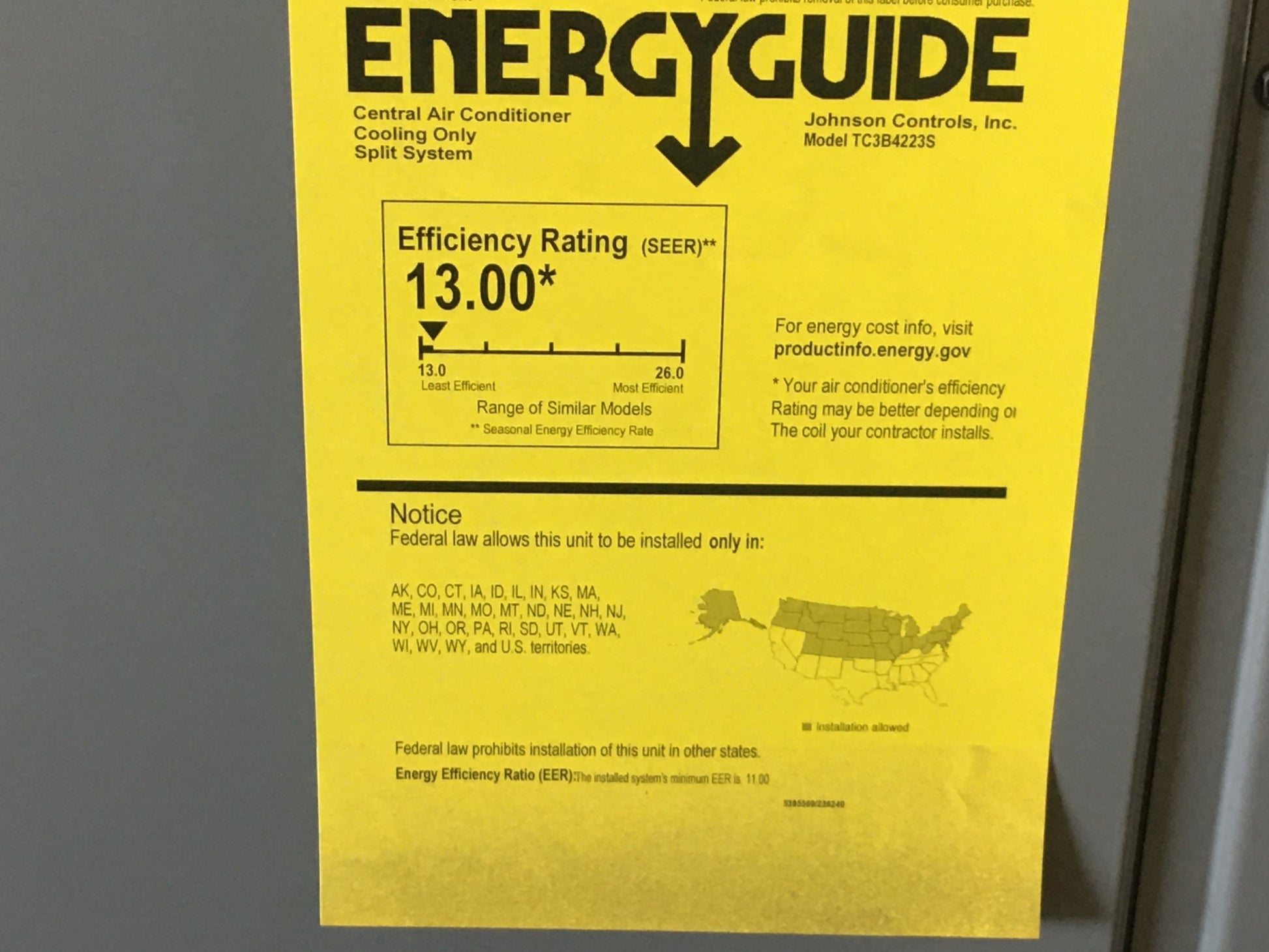

3.5 Ton Split-System Air Conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER: 13, Stage: Single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 6 oz, Type: air, Dimensions: 26-3/4"H x 29-1/4"W x 29-1/4"D, Weight: 175 lbs, in mfg box, made in USA.
Paired with:

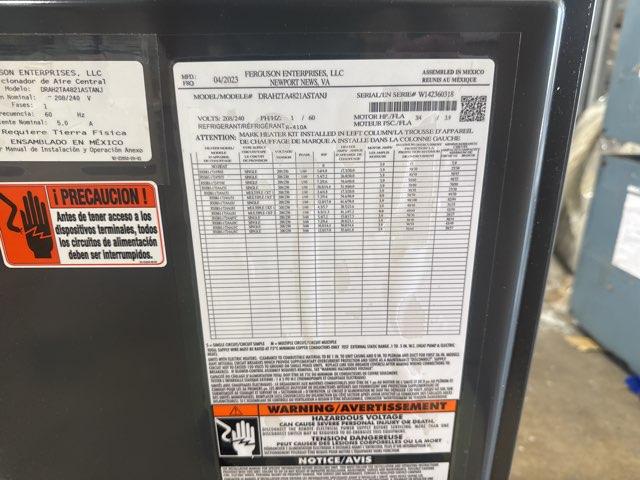

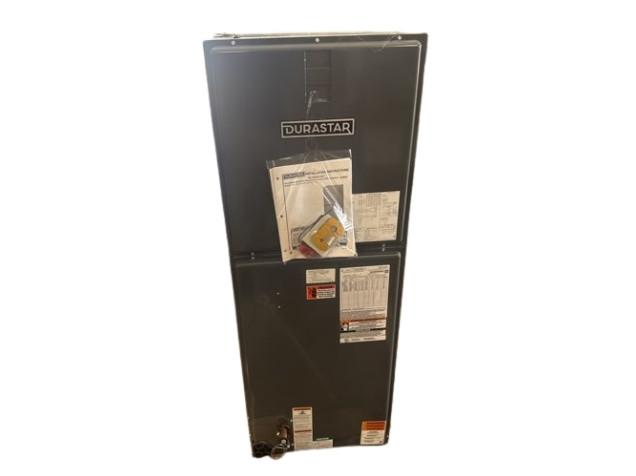

4 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8", Liquid-3/8", Type: Air Source, Dimensions: 57''H X 21''W X 21-11/16''D, Weight: 139 lbs ***Compatible Heat Kits: RXBH-1724?(05-10)J-1, RXBH-1724A(15-18)J-1, RXBH-24A(20-25)J-1,WRX (not included)***
Paired with:
4 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8", Liquid-3/8", Type: Air Source, Dimensions: 57''H X 21''W X 21-11/16''D, Weight: 139 lbs ***Compatible Heat Kits: RXBH-1724?(05-10)J-1, RXBH-1724A(15-18)J-1, RXBH-24A(20-25)J-1,WRX (not included)***
Product Details
Product Details
SCL # :221046
Manufacturer Item # :TC3B4223S-CHAMPION/DRAH2TA4821ASTANJ
Alternate Part # :218208,220135
3.5 Ton Split-System Air Conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER: 13, Stage: Single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 6 oz, Type: air, Dimensions: 26-3/4"H x 29-1/4"W x 29-1/4"D, Weight: 175 lbs, in mfg box, made in USA.
Paired with:
4 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8", Liquid-3/8", Type: Air Source, Dimensions: 57''H X 21''W X 21-11/16''D, Weight: 139 lbs ***Compatible Heat Kits: RXBH-1724?(05-10)J-1, RXBH-1724A(15-18)J-1, RXBH-24A(20-25)J-1,WRX (not included)***
Paired with:
4 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8", Liquid-3/8", Type: Air Source, Dimensions: 57''H X 21''W X 21-11/16''D, Weight: 139 lbs ***Compatible Heat Kits: RXBH-1724?(05-10)J-1, RXBH-1724A(15-18)J-1, RXBH-24A(20-25)J-1,WRX (not included)***
Specifications
Specifications
Cabinet Size:29.25
Capacity:3.5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
