SCL # :218119
Manufacturer Item # :AC21B3621S/AVV37CE221/W6K1002B
Alternate Part # :2.17883214735196E+17
3 Ton Split-System Communicating Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department Of Energy Guide SEER: 20, Stage: Three, Refrigerant: R-410A, Connection Size:
3/8"X3/4", Connection Type: Sweat, Factory Charge: 7 Lbs 6 Oz, Type: Air, Dimensions: 40-1/4''H X 32''W X 35-1/2''D, Weight: 205 Lbs Paired With:3 Ton AC/HP Multiposition Communicating Air Handler With 10 KW Heat Kit, Volts: 208-230, Hertz:60, Phase: 1, CFM: 1825, Motor Type: ECM, Metering Device: EEV, Connection Size: Suction-3/8",Liquid-3/4", Source Type: Air, Dimensions:

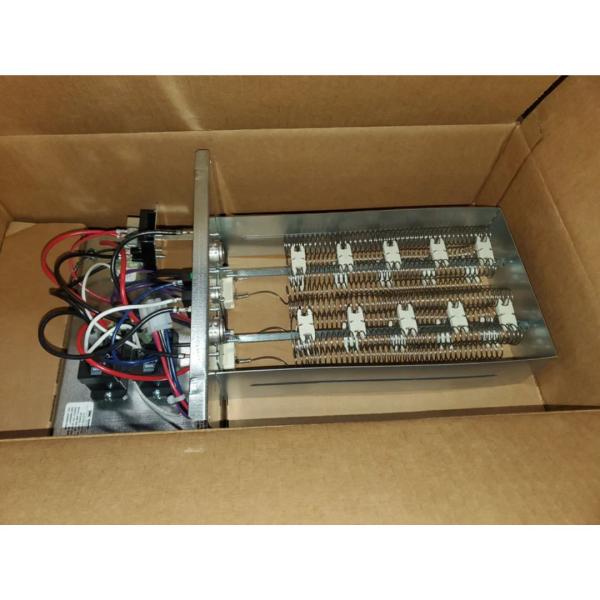

51-1/2''H X 21''W X 21-7/16''D, Weight: 114 Lbs **Includes 10 KW Heat Kit**
3/8"X3/4", Connection Type: Sweat, Factory Charge: 7 Lbs 6 Oz, Type: Air, Dimensions: 40-1/4''H X 32''W X 35-1/2''D, Weight: 205 Lbs Paired With:3 Ton AC/HP Multiposition Communicating Air Handler With 10 KW Heat Kit, Volts: 208-230, Hertz:60, Phase: 1, CFM: 1825, Motor Type: ECM, Metering Device: EEV, Connection Size: Suction-3/8",Liquid-3/4", Source Type: Air, Dimensions:
51-1/2''H X 21''W X 21-7/16''D, Weight: 114 Lbs **Includes 10 KW Heat Kit**
Product Details
Product Details
SCL # :218119
Manufacturer Item # :AC21B3621S/AVV37CE221/W6K1002B
Alternate Part # :2.17883214735196E+17
3 Ton Split-System Communicating Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department Of Energy Guide SEER: 20, Stage: Three, Refrigerant: R-410A, Connection Size:
3/8"X3/4", Connection Type: Sweat, Factory Charge: 7 Lbs 6 Oz, Type: Air, Dimensions: 40-1/4''H X 32''W X 35-1/2''D, Weight: 205 Lbs Paired With:3 Ton AC/HP Multiposition Communicating Air Handler With 10 KW Heat Kit, Volts: 208-230, Hertz:60, Phase: 1, CFM: 1825, Motor Type: ECM, Metering Device: EEV, Connection Size: Suction-3/8",Liquid-3/4", Source Type: Air, Dimensions:
51-1/2''H X 21''W X 21-7/16''D, Weight: 114 Lbs **Includes 10 KW Heat Kit**
3/8"X3/4", Connection Type: Sweat, Factory Charge: 7 Lbs 6 Oz, Type: Air, Dimensions: 40-1/4''H X 32''W X 35-1/2''D, Weight: 205 Lbs Paired With:3 Ton AC/HP Multiposition Communicating Air Handler With 10 KW Heat Kit, Volts: 208-230, Hertz:60, Phase: 1, CFM: 1825, Motor Type: ECM, Metering Device: EEV, Connection Size: Suction-3/8",Liquid-3/4", Source Type: Air, Dimensions:
51-1/2''H X 21''W X 21-7/16''D, Weight: 114 Lbs **Includes 10 KW Heat Kit**
Specifications
Specifications
Cabinet Size:40
Capacity:3
Category:AIR SOURCE
Circuit Phase:1
Circuit Voltage:208-230
Efficiency:17+ SEER/EFFICIENCY
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:3
System Controls:COMMUNICATING
