SCL # :M000475
Manufacturer Item # :FJ4DNXB36L00/WKF0802BX
Alternate Part # :221431,220294

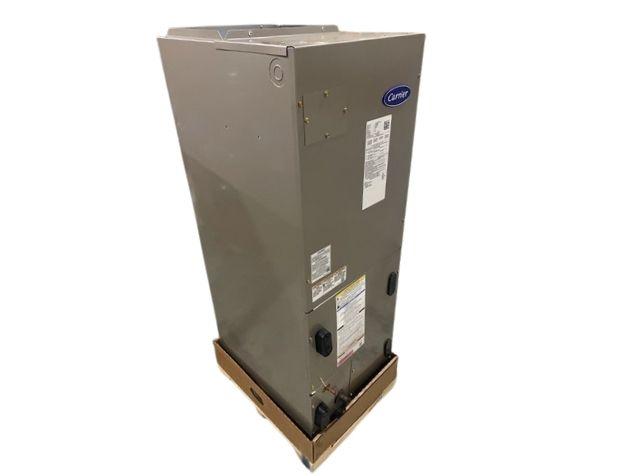

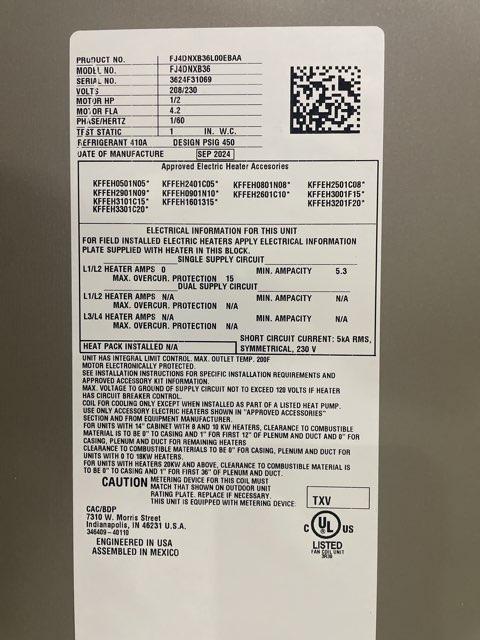

3 Ton AC/HP Fan Coil, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1433, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 49-5/8''H X 17-5/8''W X 22-1/16''D, Weight: 148 lbs Paired with:

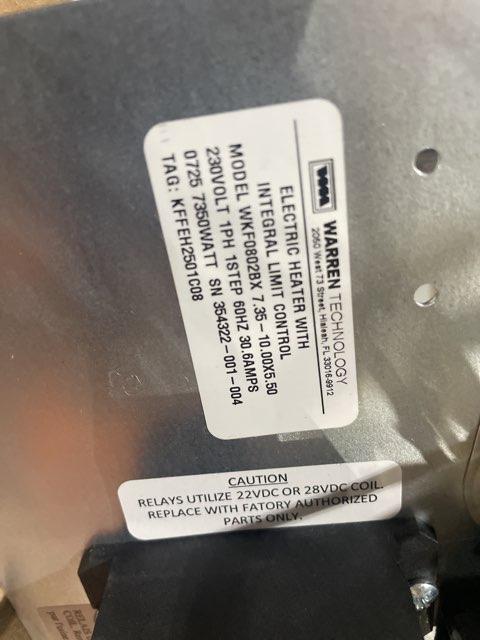

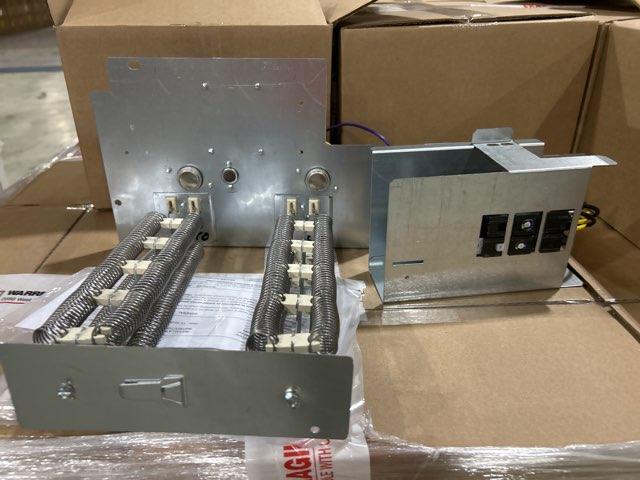

8 KW Electric Heat Kit with Breaker, Volts: 208/230, Hertz: 60, Phase: 1, Breaker Amps: 32, Kilowatts: 7.35, Dimensions: 7-3/8''H x 10-5/8''W x 14''D, Weight: 4.5 lbs **For use with: FE4A/5A, 40FKA, FV4A/B/C 002-006, FA4A/B, FB4A/B/C, FC4B/C, FB5A 018-070, PF1MN, PF4MN 018-061, FZ4A 024-061, FC4D, FY4A, FY4B, FY5B, FA4C, FX4B/C 018-060, FH4A/B/C 001-004, FX4A 030-060, FK4C/D 001-006, FX4D 019-061 Model Air Handlers**
8 KW Electric Heat Kit with Breaker, Volts: 208/230, Hertz: 60, Phase: 1, Breaker Amps: 32, Kilowatts: 7.35, Dimensions: 7-3/8''H x 10-5/8''W x 14''D, Weight: 4.5 lbs **For use with: FE4A/5A, 40FKA, FV4A/B/C 002-006, FA4A/B, FB4A/B/C, FC4B/C, FB5A 018-070, PF1MN, PF4MN 018-061, FZ4A 024-061, FC4D, FY4A, FY4B, FY5B, FA4C, FX4B/C 018-060, FH4A/B/C 001-004, FX4A 030-060, FK4C/D 001-006, FX4D 019-061 Model Air Handlers**
Product Details
Product Details
SCL # :M000475
Manufacturer Item # :FJ4DNXB36L00/WKF0802BX
Alternate Part # :221431,220294
3 Ton AC/HP Fan Coil, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1433, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-3/4", Liquid-3/8", Type: Air Source, Dimensions: 49-5/8''H X 17-5/8''W X 22-1/16''D, Weight: 148 lbs Paired with:
8 KW Electric Heat Kit with Breaker, Volts: 208/230, Hertz: 60, Phase: 1, Breaker Amps: 32, Kilowatts: 7.35, Dimensions: 7-3/8''H x 10-5/8''W x 14''D, Weight: 4.5 lbs **For use with: FE4A/5A, 40FKA, FV4A/B/C 002-006, FA4A/B, FB4A/B/C, FC4B/C, FB5A 018-070, PF1MN, PF4MN 018-061, FZ4A 024-061, FC4D, FY4A, FY4B, FY5B, FA4C, FX4B/C 018-060, FH4A/B/C 001-004, FX4A 030-060, FK4C/D 001-006, FX4D 019-061 Model Air Handlers**
8 KW Electric Heat Kit with Breaker, Volts: 208/230, Hertz: 60, Phase: 1, Breaker Amps: 32, Kilowatts: 7.35, Dimensions: 7-3/8''H x 10-5/8''W x 14''D, Weight: 4.5 lbs **For use with: FE4A/5A, 40FKA, FV4A/B/C 002-006, FA4A/B, FB4A/B/C, FC4B/C, FB5A 018-070, PF1MN, PF4MN 018-061, FZ4A 024-061, FC4D, FY4A, FY4B, FY5B, FA4C, FX4B/C 018-060, FH4A/B/C 001-004, FX4A 030-060, FK4C/D 001-006, FX4D 019-061 Model Air Handlers**
Specifications
Specifications
Cabinet Size:17.625
Capacity:3
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
System Controls:NON-COMMUNICATING
