SCL # :193465-DAMAGED
Manufacturer Item # :YCJD36S43S3A-DAMAGED
Alternate Part # :YCJD36S43S3

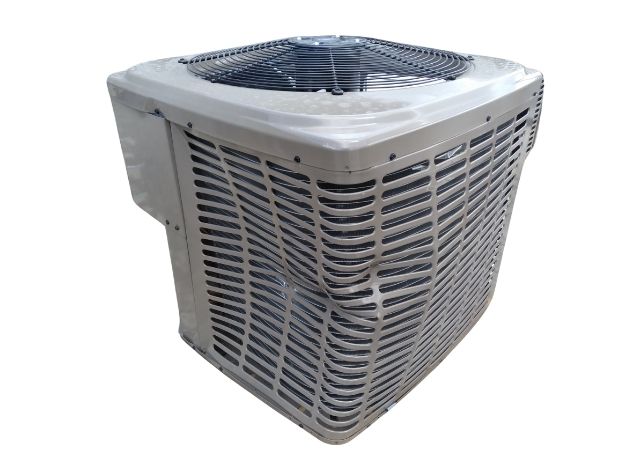

3 Ton LX Series Split-System Air Conditioner, Volts:208/230, Hertz: 60, Phase: 3, SEER: 13, Cooling Capacity BTU: 36,000, Normal Volt Range: 187-252, Min Circuit Ampacity:12.3, Max Overcurrent Devise Amps:20, Min Overcurrent Device Amps:15, Compressor Type: Recip, Compressor Amps: 8.6, Fan Motor HP: 1/4, Fan Motor Amps: 1.5, RPM: 850, CFM: 3,200, Refrigerant: R-410A, Factory Charge: 4 Lbs 9 Oz, Fan Diameter: 22", Connection Size - Liquid: 3/8", Suction: 3/4", Height: 301/4", Width:
291/2", Depth: 291/2", In Manufacturers Box, Weight: 145 Lbs, Made In USA. (Johnson Control / Inc With Guardian Logo), Refer To Policies/Terms & Conditions For 2015 Federal Regional Standards For 13 SEER Heating And Cooling Products
Minor cosmetic dent and scratches on sides (may include front, back, top, bottom and other sides)
291/2", Depth: 291/2", In Manufacturers Box, Weight: 145 Lbs, Made In USA. (Johnson Control / Inc With Guardian Logo), Refer To Policies/Terms & Conditions For 2015 Federal Regional Standards For 13 SEER Heating And Cooling Products
Minor cosmetic dent and scratches on sides (may include front, back, top, bottom and other sides)
Product Details
Product Details
SCL # :193465-DAMAGED
Manufacturer Item # :YCJD36S43S3A-DAMAGED
Alternate Part # :YCJD36S43S3
3 Ton LX Series Split-System Air Conditioner, Volts:208/230, Hertz: 60, Phase: 3, SEER: 13, Cooling Capacity BTU: 36,000, Normal Volt Range: 187-252, Min Circuit Ampacity:12.3, Max Overcurrent Devise Amps:20, Min Overcurrent Device Amps:15, Compressor Type: Recip, Compressor Amps: 8.6, Fan Motor HP: 1/4, Fan Motor Amps: 1.5, RPM: 850, CFM: 3,200, Refrigerant: R-410A, Factory Charge: 4 Lbs 9 Oz, Fan Diameter: 22", Connection Size - Liquid: 3/8", Suction: 3/4", Height: 301/4", Width:
291/2", Depth: 291/2", In Manufacturers Box, Weight: 145 Lbs, Made In USA. (Johnson Control / Inc With Guardian Logo), Refer To Policies/Terms & Conditions For 2015 Federal Regional Standards For 13 SEER Heating And Cooling Products
Minor cosmetic dent and scratches on sides (may include front, back, top, bottom and other sides)
291/2", Depth: 291/2", In Manufacturers Box, Weight: 145 Lbs, Made In USA. (Johnson Control / Inc With Guardian Logo), Refer To Policies/Terms & Conditions For 2015 Federal Regional Standards For 13 SEER Heating And Cooling Products
Minor cosmetic dent and scratches on sides (may include front, back, top, bottom and other sides)
Specifications
Specifications
Cabinet Size:40
Capacity:3
Circuit Phase:3
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
