SCL # :193465
Manufacturer Item # :YCJD36S43S3A
Alternate Part # :YCJD36S43S3

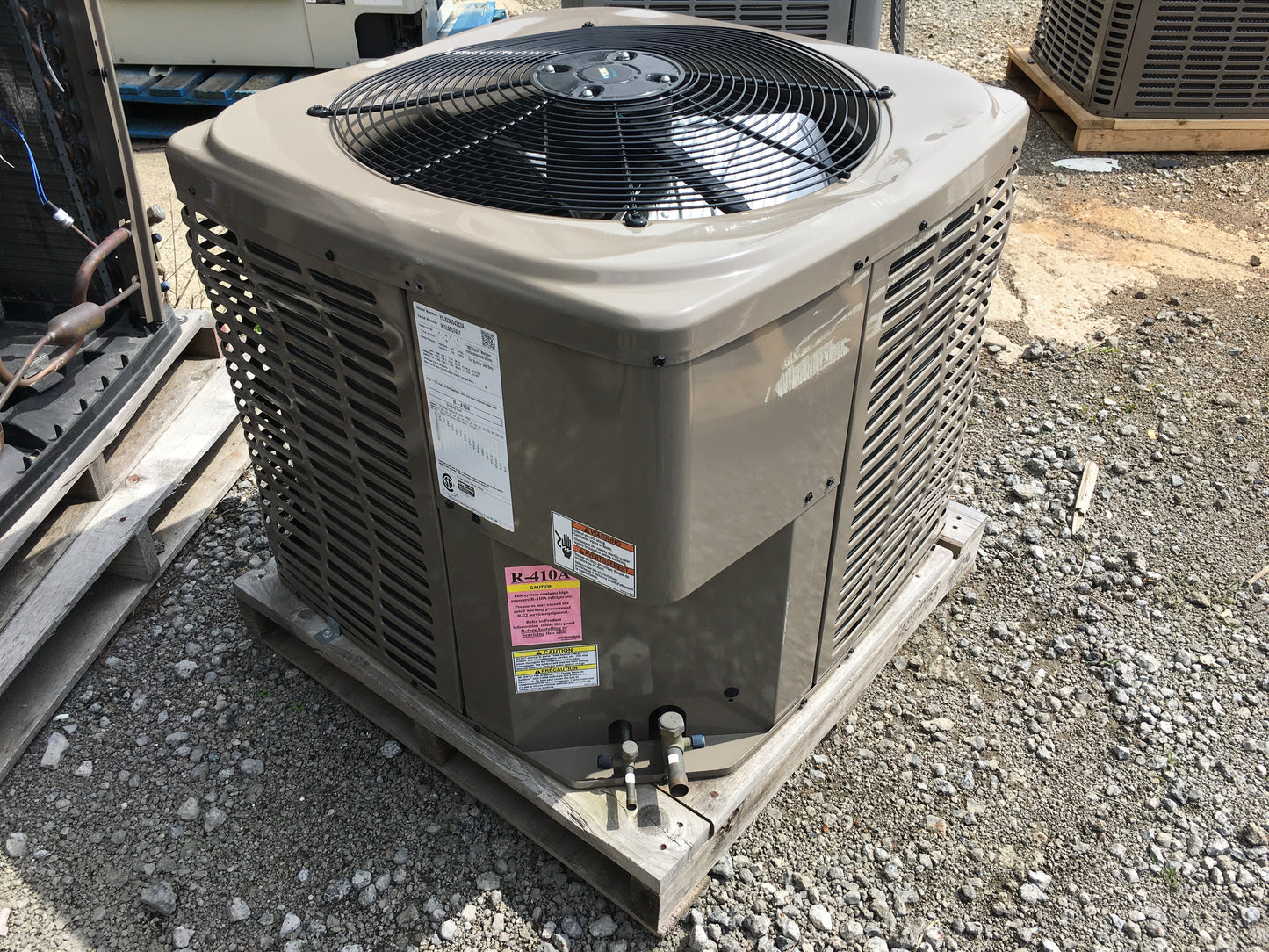

3 Ton LX Series Split-System Air Conditioner, Volts:208/230, Hertz: 60, Phase: 3, SEER: 13, Cooling Capacity BTU: 36,000, Normal Volt Range: 187-252, Min Circuit Ampacity:12.3, Max Overcurrent Devise Amps:20, Min Overcurrent Device Amps:15, Compressor Type: Recip, Compressor Amps: 8.6, Fan Motor HP: 1/4, Fan Motor Amps: 1.5, RPM: 850, CFM: 3,200, Refrigerant: R-410A, Factory Charge: 4 Lbs 9 Oz, Fan Diameter: 22", Connection Size - Liquid: 3/8", Suction: 3/4", Height: 301/4", Width:
291/2", Depth: 291/2", In Manufacturers Box, Weight: 145 Lbs, Made In USA. (Johnson Control / Inc With Guardian Logo), Refer To Policies/Terms & Conditions For 2015 Federal Regional Standards For 13 SEER Heating And Cooling Products

Product Details
SCL # :193465
Manufacturer Item # :YCJD36S43S3A
Alternate Part # :YCJD36S43S3
3 Ton LX Series Split-System Air Conditioner, Volts:208/230, Hertz: 60, Phase: 3, SEER: 13, Cooling Capacity BTU: 36,000, Normal Volt Range: 187-252, Min Circuit Ampacity:12.3, Max Overcurrent Devise Amps:20, Min Overcurrent Device Amps:15, Compressor Type: Recip, Compressor Amps: 8.6, Fan Motor HP: 1/4, Fan Motor Amps: 1.5, RPM: 850, CFM: 3,200, Refrigerant: R-410A, Factory Charge: 4 Lbs 9 Oz, Fan Diameter: 22", Connection Size - Liquid: 3/8", Suction: 3/4", Height: 301/4", Width:
291/2", Depth: 291/2", In Manufacturers Box, Weight: 145 Lbs, Made In USA. (Johnson Control / Inc With Guardian Logo), Refer To Policies/Terms & Conditions For 2015 Federal Regional Standards For 13 SEER Heating And Cooling Products

Specifications
Cabinet Size:40
Capacity:3
Category:AIR SOURCE
Circuit Phase:3
Circuit Voltage:208-230
Efficiency:13 SEER/EFFICIENCY
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING

York International

3 Ton Split System Air Conditioner, 13 Seer 208-230/60/3 R-410A

3 Ton Split System Air Conditioner, 13 Seer 208-230/60/3 R-410A

Out of stock
$768.00
$0.00 $768.00
Shipping calculated at checkout.
View Product Details
