SCL # :220186
Manufacturer Item # :HS036SXXNXXX1XX2

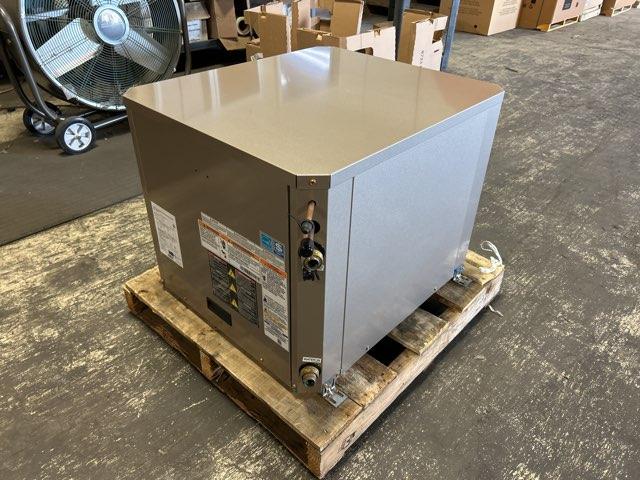

3 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration:
Split-System, Return Air Option/Piping Connection: None, EER: 22.7, Stage: Two, Motor Type: None, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 86 oz, Water Loop - Cooling BTU:
35,600/Heating BTU: 45,700, Ground Water - Cooling BTU: 40,600/Heating BTU: 36,700, Ground Loop - Cooling BTU: 37,600/Heating BTU: 26,900, Connection Size: 1", Dimensions: 21-1/2''H x 24''W x 27-2/5''D, Weight: 172 lbs, **Compatible Units: FVM4X36 and EAM4X36 Not Included**
Split-System, Return Air Option/Piping Connection: None, EER: 22.7, Stage: Two, Motor Type: None, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 86 oz, Water Loop - Cooling BTU:
35,600/Heating BTU: 45,700, Ground Water - Cooling BTU: 40,600/Heating BTU: 36,700, Ground Loop - Cooling BTU: 37,600/Heating BTU: 26,900, Connection Size: 1", Dimensions: 21-1/2''H x 24''W x 27-2/5''D, Weight: 172 lbs, **Compatible Units: FVM4X36 and EAM4X36 Not Included**
Product Details
Product Details
SCL # :220186
Manufacturer Item # :HS036SXXNXXX1XX2
3 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration:
Split-System, Return Air Option/Piping Connection: None, EER: 22.7, Stage: Two, Motor Type: None, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 86 oz, Water Loop - Cooling BTU:
35,600/Heating BTU: 45,700, Ground Water - Cooling BTU: 40,600/Heating BTU: 36,700, Ground Loop - Cooling BTU: 37,600/Heating BTU: 26,900, Connection Size: 1", Dimensions: 21-1/2''H x 24''W x 27-2/5''D, Weight: 172 lbs, **Compatible Units: FVM4X36 and EAM4X36 Not Included**
Split-System, Return Air Option/Piping Connection: None, EER: 22.7, Stage: Two, Motor Type: None, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 86 oz, Water Loop - Cooling BTU:
35,600/Heating BTU: 45,700, Ground Water - Cooling BTU: 40,600/Heating BTU: 36,700, Ground Loop - Cooling BTU: 37,600/Heating BTU: 26,900, Connection Size: 1", Dimensions: 21-1/2''H x 24''W x 27-2/5''D, Weight: 172 lbs, **Compatible Units: FVM4X36 and EAM4X36 Not Included**
Specifications
Specifications
Cabinet Size:24
Capacity:3
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
