SCL # :183138-DAMAGED
Manufacturer Item # :1AHD1-DAMAGED

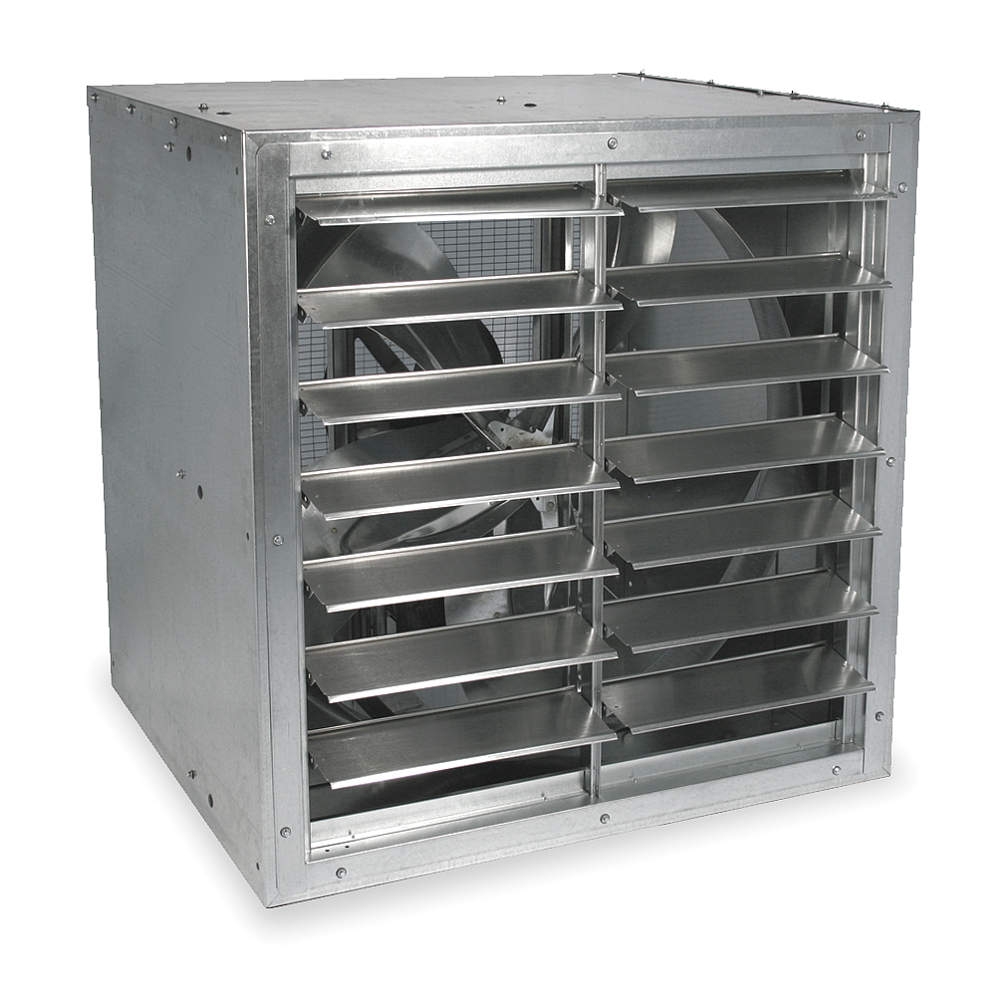

Item: Cabinet Exhaust Fan, Drive Type: Belt, Blade Dia.: 36", Assembled/Unassembled: Assembled, CFM 0.000-In. SP 12,365, CFM 0.125-In. SP 10,512, CFM 0.250-In. SP 7712, Sones 0.125-In. SP 5 Ft.
16.3, Fan RPM: 534, Max. Ambient Temp.: 104 Degrees F, Max. Inlet Temp.: 104 Degrees F, Fan Voltage: 115/208-230,Drive Package Included: No, Exhaust/Supply Fan Item: Exhaust Fan, Hz: 60, Phase :1, Full Load Amps: 13.0/7.0-7.0 Exhaust/Supply Fan Motor Hp: 1, Max. BHP: 1.16, Bearing Type: Regreasable Cast Pillow Block, Motor RPM: 1725, Motor Type: Capacitor-Start, Motor Enclosure: Totally Enclosed Air-Over, Motor Insulation Class: B ,Height: 40-1/4", Width: 40-1/4", Max. Depth: 34-5/8", Mounting Position: Horizontal, Housing Material: Galvanized Steel, Frame Material: Galvanized Steel,Propeller Material: Fabricated Steel, Number Of Blades: 5, Origin: Mexico
Shutter Damage
16.3, Fan RPM: 534, Max. Ambient Temp.: 104 Degrees F, Max. Inlet Temp.: 104 Degrees F, Fan Voltage: 115/208-230,Drive Package Included: No, Exhaust/Supply Fan Item: Exhaust Fan, Hz: 60, Phase :1, Full Load Amps: 13.0/7.0-7.0 Exhaust/Supply Fan Motor Hp: 1, Max. BHP: 1.16, Bearing Type: Regreasable Cast Pillow Block, Motor RPM: 1725, Motor Type: Capacitor-Start, Motor Enclosure: Totally Enclosed Air-Over, Motor Insulation Class: B ,Height: 40-1/4", Width: 40-1/4", Max. Depth: 34-5/8", Mounting Position: Horizontal, Housing Material: Galvanized Steel, Frame Material: Galvanized Steel,Propeller Material: Fabricated Steel, Number Of Blades: 5, Origin: Mexico
Shutter Damage
Product Details
Product Details
SCL # :183138-DAMAGED
Manufacturer Item # :1AHD1-DAMAGED
Item: Cabinet Exhaust Fan, Drive Type: Belt, Blade Dia.: 36", Assembled/Unassembled: Assembled, CFM 0.000-In. SP 12,365, CFM 0.125-In. SP 10,512, CFM 0.250-In. SP 7712, Sones 0.125-In. SP 5 Ft.
16.3, Fan RPM: 534, Max. Ambient Temp.: 104 Degrees F, Max. Inlet Temp.: 104 Degrees F, Fan Voltage: 115/208-230,Drive Package Included: No, Exhaust/Supply Fan Item: Exhaust Fan, Hz: 60, Phase :1, Full Load Amps: 13.0/7.0-7.0 Exhaust/Supply Fan Motor Hp: 1, Max. BHP: 1.16, Bearing Type: Regreasable Cast Pillow Block, Motor RPM: 1725, Motor Type: Capacitor-Start, Motor Enclosure: Totally Enclosed Air-Over, Motor Insulation Class: B ,Height: 40-1/4", Width: 40-1/4", Max. Depth: 34-5/8", Mounting Position: Horizontal, Housing Material: Galvanized Steel, Frame Material: Galvanized Steel,Propeller Material: Fabricated Steel, Number Of Blades: 5, Origin: Mexico
Shutter Damage
16.3, Fan RPM: 534, Max. Ambient Temp.: 104 Degrees F, Max. Inlet Temp.: 104 Degrees F, Fan Voltage: 115/208-230,Drive Package Included: No, Exhaust/Supply Fan Item: Exhaust Fan, Hz: 60, Phase :1, Full Load Amps: 13.0/7.0-7.0 Exhaust/Supply Fan Motor Hp: 1, Max. BHP: 1.16, Bearing Type: Regreasable Cast Pillow Block, Motor RPM: 1725, Motor Type: Capacitor-Start, Motor Enclosure: Totally Enclosed Air-Over, Motor Insulation Class: B ,Height: 40-1/4", Width: 40-1/4", Max. Depth: 34-5/8", Mounting Position: Horizontal, Housing Material: Galvanized Steel, Frame Material: Galvanized Steel,Propeller Material: Fabricated Steel, Number Of Blades: 5, Origin: Mexico
Shutter Damage
Specifications
Specifications
Cabinet Size:44
Packaging:No Manufacture Packaging
