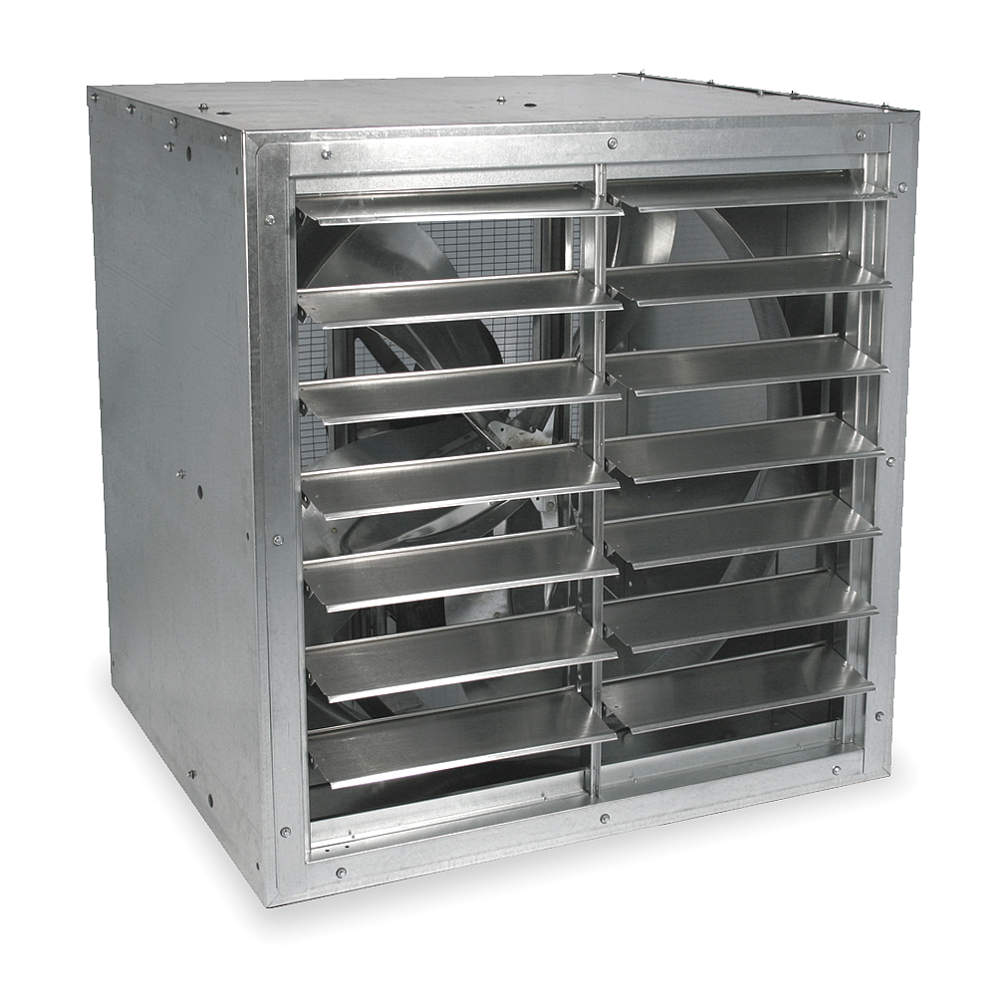

36"-DIA. CAPACITOR-START 115/208-230V CABINET EXHAUST FAN

ITEM: CABINET EXHAUST FAN, DRIVE TYPE: BELT, BLADE DIA.: 36", ASSEMBLED/UNASSEMBLED: ASSEMBLED, CFM @ 0.000-IN. SP 12,365, CFM @ 0.125-IN. SP 10,512, CFM @ 0.250-IN. SP 7712, SONES @ 0.125-IN. SP @ 5 FT. 16.3, FAN RPM: 534, MAX. AMBIENT TEMP.: 104 DEGREES F, MAX. INLET TEMP.: 104 DEGREES F, FAN VOLTAGE: 115/208-230,DRIVE PACKAGE INCLUDED: NO, EXHAUST/SUPPLY FAN ITEM: EXHAUST FAN, HZ: 60, PHASE :1, FULL LOAD AMPS: 13.0/7.0-7.0 EXHAUST/SUPPLY FAN MOTOR HP: 1, MAX. BHP: 1.16, BEARING TYPE: REGREASABLE CAST PILLOW BLOCK, MOTOR RPM: 1725, MOTOR TYPE: CAPACITOR-START, MOTOR ENCLOSURE: TOTALLY ENCLOSED AIR-OVER, MOTOR INSULATION CLASS: B ,HEIGHT: 40-1/4", WIDTH: 40-1/4", MAX. DEPTH: 34-5/8", MOUNTING POSITION: HORIZONTAL, HOUSING MATERIAL: GALVANIZED STEEL, FRAME MATERIAL: GALVANIZED STEEL,PROPELLER MATERIAL: FABRICATED STEEL, NUMBER OF BLADES: 5, ORIGIN: MEXICO
