SCL # :217488
Manufacturer Item # :DFG0483DL00001S
Alternate Part # :GDFG0483DL00001S

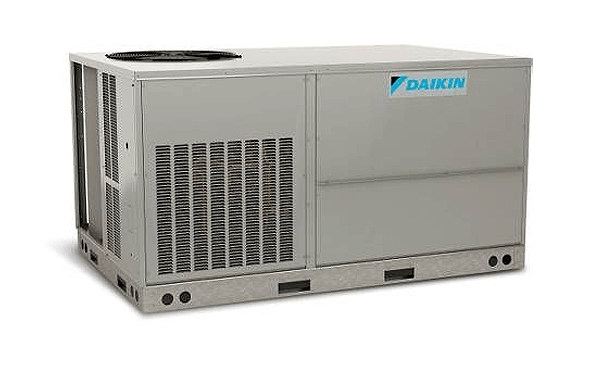

4 Ton Convertible Natural Gas/Electric Packaged Unit, Volts:208-230, Hertz:60, Phase:3, Refrigerant:R410A, Factory Charge:4 Lbs 15 Oz, EER:11.5, Department Of Energy Guide SEER (Range):14, CFM:1570, BTU Input:70,000, BTU Output:56,000, Cooling BTU:47,000, Heating BTU:70,000, Return Dims:25"H X 11"W, Supply Dims:12"H X 17"W, Overall Dims:39-7/8"H x 48-5/16"W x 73-3/8"D, Weight:532 Lbs
Product Details
Product Details
SCL # :217488
Manufacturer Item # :DFG0483DL00001S
Alternate Part # :GDFG0483DL00001S
4 Ton Convertible Natural Gas/Electric Packaged Unit, Volts:208-230, Hertz:60, Phase:3, Refrigerant:R410A, Factory Charge:4 Lbs 15 Oz, EER:11.5, Department Of Energy Guide SEER (Range):14, CFM:1570, BTU Input:70,000, BTU Output:56,000, Cooling BTU:47,000, Heating BTU:70,000, Return Dims:25"H X 11"W, Supply Dims:12"H X 17"W, Overall Dims:39-7/8"H x 48-5/16"W x 73-3/8"D, Weight:532 Lbs
Specifications
Specifications
Application:PACKAGED GAS/ELEC UNIT
Cabinet Size:48.3125
Capacity:4
Circuit Phase:3
Circuit Voltage:208-230
Maximum Hertz:60
Stage:2
