SCL # :M001193
Manufacturer Item # :NS22H48MA4-51A/NCDC60DT4
Alternate Part # :222669,222628

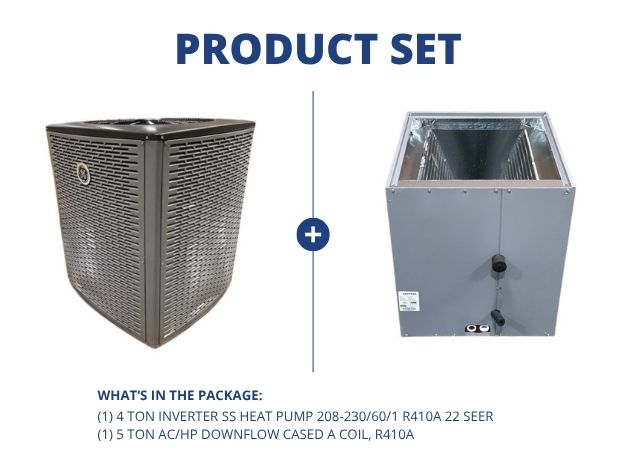

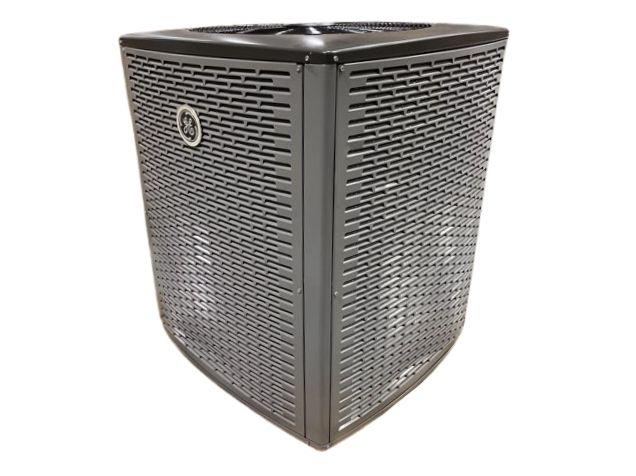

4 Ton Inverter Stage Split-System Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER: 22, Stage: Inverter, Refrigerant: R410A, Connection Size: 3/8"X7/8", Connection Type: Sweat, Factory Charge: 173 oz, Type: Air, Dimensions: 43-3/4''H x 38-22/25''W x 36-22/25''D, Weight: 358 lbs Paired with:

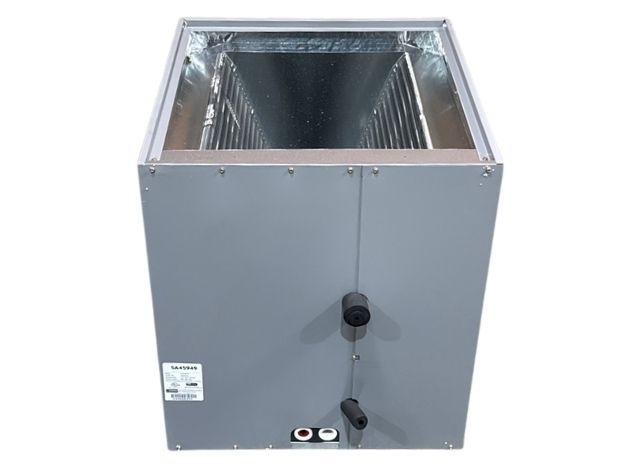

5 Ton AC/HP Cased A Coil, Airflow: Downflow, CFM: 2000, Metering Device: TXV, Connection Type: Sweat, Refrigerant: R410A, Connection Size: 3/8"X7/8", Drain Pan: Plastic, Dimensions: 27-1/2''H X 24-1/2''W X 26-1/2''D, Weight: 69 lbs ***Units include a Manufacture Warranty, register your units with the Manufacturer for details***
5 Ton AC/HP Cased A Coil, Airflow: Downflow, CFM: 2000, Metering Device: TXV, Connection Type: Sweat, Refrigerant: R410A, Connection Size: 3/8"X7/8", Drain Pan: Plastic, Dimensions: 27-1/2''H X 24-1/2''W X 26-1/2''D, Weight: 69 lbs ***Units include a Manufacture Warranty, register your units with the Manufacturer for details***
Product Details
Product Details
SCL # :M001193
Manufacturer Item # :NS22H48MA4-51A/NCDC60DT4
Alternate Part # :222669,222628
4 Ton Inverter Stage Split-System Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER: 22, Stage: Inverter, Refrigerant: R410A, Connection Size: 3/8"X7/8", Connection Type: Sweat, Factory Charge: 173 oz, Type: Air, Dimensions: 43-3/4''H x 38-22/25''W x 36-22/25''D, Weight: 358 lbs Paired with:
5 Ton AC/HP Cased A Coil, Airflow: Downflow, CFM: 2000, Metering Device: TXV, Connection Type: Sweat, Refrigerant: R410A, Connection Size: 3/8"X7/8", Drain Pan: Plastic, Dimensions: 27-1/2''H X 24-1/2''W X 26-1/2''D, Weight: 69 lbs ***Units include a Manufacture Warranty, register your units with the Manufacturer for details***
5 Ton AC/HP Cased A Coil, Airflow: Downflow, CFM: 2000, Metering Device: TXV, Connection Type: Sweat, Refrigerant: R410A, Connection Size: 3/8"X7/8", Drain Pan: Plastic, Dimensions: 27-1/2''H X 24-1/2''W X 26-1/2''D, Weight: 69 lbs ***Units include a Manufacture Warranty, register your units with the Manufacturer for details***
Specifications
Specifications
Cabinet Size:38.88
Capacity:4
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:Inverter
System Controls:NON-COMMUNICATING
