SCL # :220681
Manufacturer Item # :4AC13L48P/DRAH2TA4821ASTANJ
Alternate Part # :184827,220135

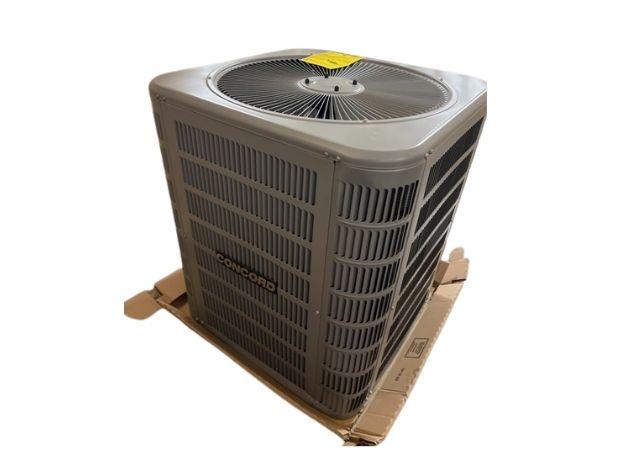

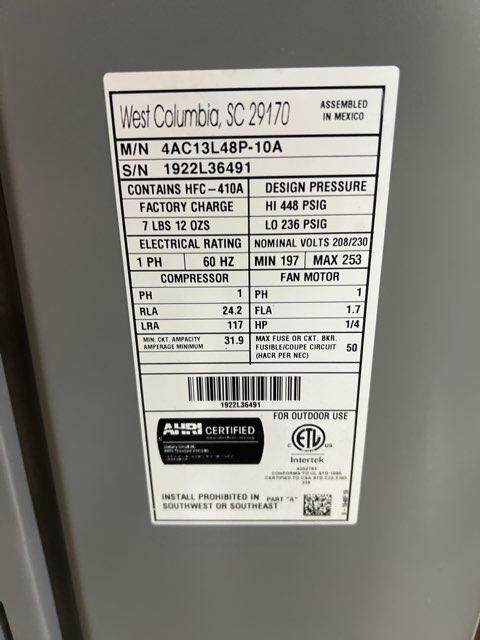

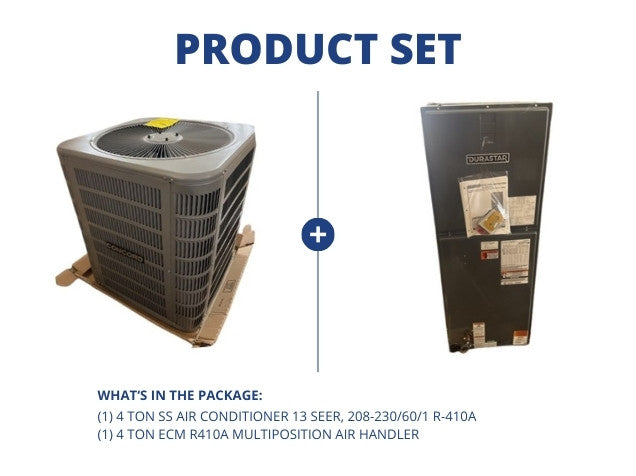

4 ton split-system air conditioner; Volts: 208/230, Hertz: 60, Phase: 1, Seer: 13, Refrigerant: R-410A (factory charged with 7.12 lbs), Design Pressure Lo/Hi: 236/446 PSIG, Type: air source, Connections: 3/8" x 7/8" sweat, Dims: 33"H x 28-1/4"W x 28-1/4"D, Weight: 192 lbs, in mfg box, made in Mexico Paired with:

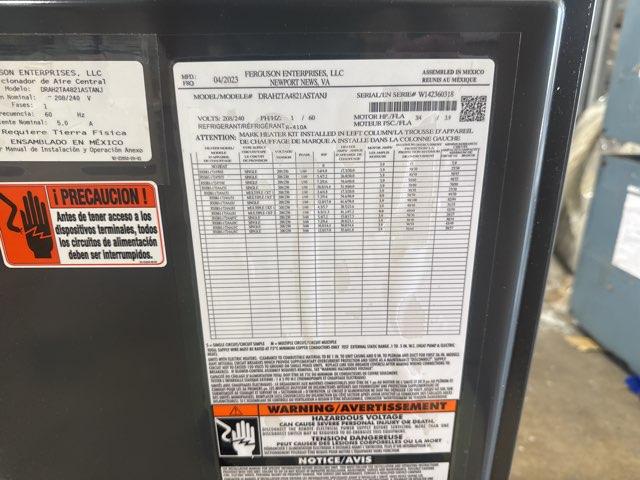

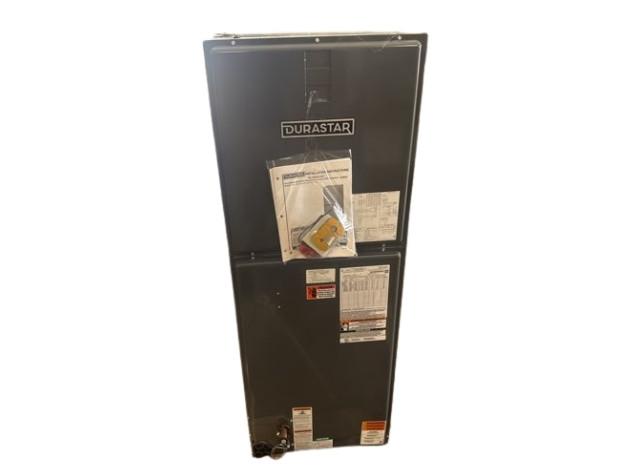

4 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8", Liquid-3/8", Type: Air Source, Dimensions: 57''H X 21''W X 21-11/16''D, Weight: 139 lbs ***Compatible Heat Kits: RXBH-1724?(05-10)J-1, RXBH-1724A(15-18)J-1, RXBH-24A(20-25)J-1,WRX (not included)***
4 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8", Liquid-3/8", Type: Air Source, Dimensions: 57''H X 21''W X 21-11/16''D, Weight: 139 lbs ***Compatible Heat Kits: RXBH-1724?(05-10)J-1, RXBH-1724A(15-18)J-1, RXBH-24A(20-25)J-1,WRX (not included)***
Product Details
Product Details
SCL # :220681
Manufacturer Item # :4AC13L48P/DRAH2TA4821ASTANJ
Alternate Part # :184827,220135
4 ton split-system air conditioner; Volts: 208/230, Hertz: 60, Phase: 1, Seer: 13, Refrigerant: R-410A (factory charged with 7.12 lbs), Design Pressure Lo/Hi: 236/446 PSIG, Type: air source, Connections: 3/8" x 7/8" sweat, Dims: 33"H x 28-1/4"W x 28-1/4"D, Weight: 192 lbs, in mfg box, made in Mexico Paired with:
4 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8", Liquid-3/8", Type: Air Source, Dimensions: 57''H X 21''W X 21-11/16''D, Weight: 139 lbs ***Compatible Heat Kits: RXBH-1724?(05-10)J-1, RXBH-1724A(15-18)J-1, RXBH-24A(20-25)J-1,WRX (not included)***
4 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8", Liquid-3/8", Type: Air Source, Dimensions: 57''H X 21''W X 21-11/16''D, Weight: 139 lbs ***Compatible Heat Kits: RXBH-1724?(05-10)J-1, RXBH-1724A(15-18)J-1, RXBH-24A(20-25)J-1,WRX (not included)***
Specifications
Specifications
Cabinet Size:28.25
Capacity:4
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
