SCL # :220811
Manufacturer Item # :ASXC704810/DRAEF4821STANMC/0130M00485/TH6220
Alternate Part # :220471,220133,219847,219754-TH6220WF2006/U

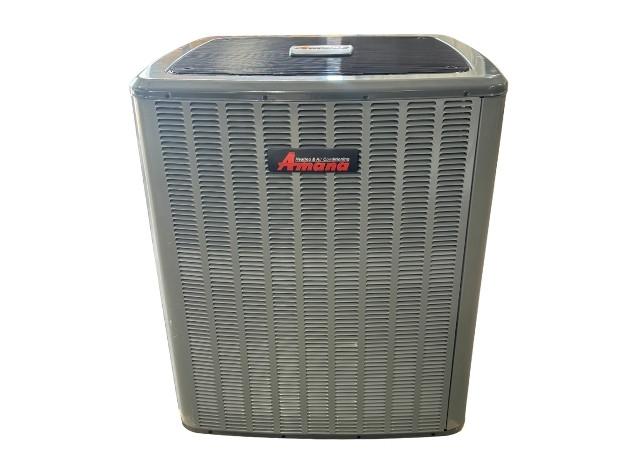

4 Ton Two Stage Split-System Communicating Compatible Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, SEER2: 17- In Communicating Mode, Stage: Two, Refrigerant: R410A, Connection Size: 3/8"X7/8", Connection Type: Sweat, Factory Charge: 195 oz, Type: Air, Dimensions:
41-5/8''H x 35-1/2''W x 35-1/2''D, Weight: 276 lbs **Compatible With Comfortbridge Technology Units** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:

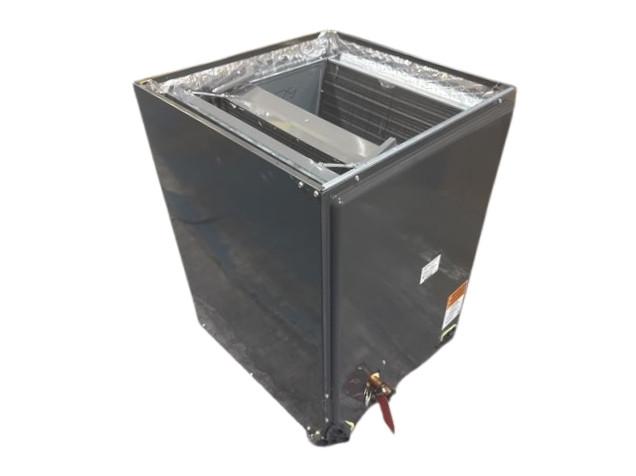

4 Ton Cased N Coil, Airflow: Multiposition, CFM: 1800, Metering Device: TXV, Connection Type:
Sweat, Refrigerant: R410A, Connection Size: 3/8" X 7/8", Drain Pan: Plastic, Dimensions: 28''H X 21''W X 21-11/16''D, Weight: 71 lbs **Compatible with Gas or Oil Furnaces** Paired with:

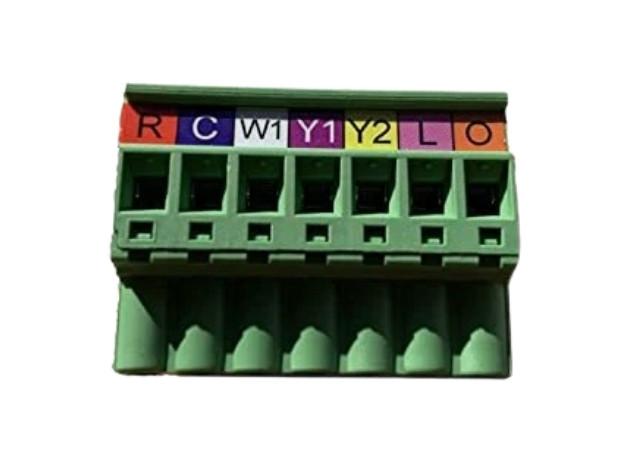

7 Pin Connector, Used for Legacy Wiring of Communicating Amana Condensers. Required When The Outdoor Unit Is Paired With Non-Communicating Indoor Units. Dimensions: 1/2" H x 1-1/2" W x 2" D, Weight: 0.02 lbs Paired with:

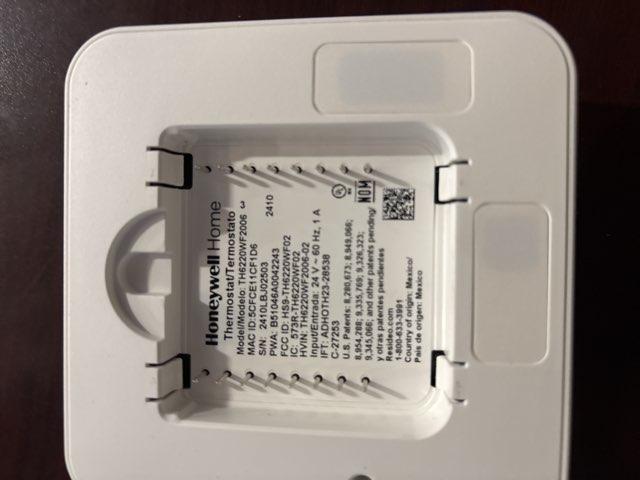

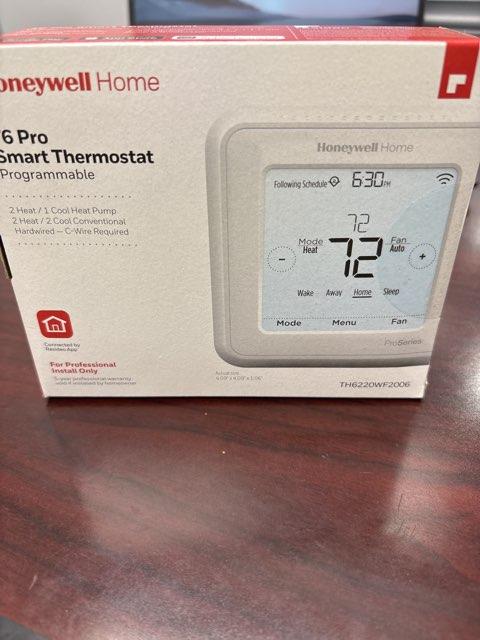

7-Day Programmable Digital Touch Screen Thermostat, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: R & C Wire, Color: White, Applications: Heat Pumps, Conventional system, Dimensions: 4-1/16''H X 4-1/16''W X 1-5/32''D
41-5/8''H x 35-1/2''W x 35-1/2''D, Weight: 276 lbs **Compatible With Comfortbridge Technology Units** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
4 Ton Cased N Coil, Airflow: Multiposition, CFM: 1800, Metering Device: TXV, Connection Type:
Sweat, Refrigerant: R410A, Connection Size: 3/8" X 7/8", Drain Pan: Plastic, Dimensions: 28''H X 21''W X 21-11/16''D, Weight: 71 lbs **Compatible with Gas or Oil Furnaces** Paired with:
7 Pin Connector, Used for Legacy Wiring of Communicating Amana Condensers. Required When The Outdoor Unit Is Paired With Non-Communicating Indoor Units. Dimensions: 1/2" H x 1-1/2" W x 2" D, Weight: 0.02 lbs Paired with:
7-Day Programmable Digital Touch Screen Thermostat, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: R & C Wire, Color: White, Applications: Heat Pumps, Conventional system, Dimensions: 4-1/16''H X 4-1/16''W X 1-5/32''D
Product Details
Product Details
SCL # :220811
Manufacturer Item # :ASXC704810/DRAEF4821STANMC/0130M00485/TH6220
Alternate Part # :220471,220133,219847,219754-TH6220WF2006/U
4 Ton Two Stage Split-System Communicating Compatible Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, SEER2: 17- In Communicating Mode, Stage: Two, Refrigerant: R410A, Connection Size: 3/8"X7/8", Connection Type: Sweat, Factory Charge: 195 oz, Type: Air, Dimensions:
41-5/8''H x 35-1/2''W x 35-1/2''D, Weight: 276 lbs **Compatible With Comfortbridge Technology Units** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
4 Ton Cased N Coil, Airflow: Multiposition, CFM: 1800, Metering Device: TXV, Connection Type:
Sweat, Refrigerant: R410A, Connection Size: 3/8" X 7/8", Drain Pan: Plastic, Dimensions: 28''H X 21''W X 21-11/16''D, Weight: 71 lbs **Compatible with Gas or Oil Furnaces** Paired with:
7 Pin Connector, Used for Legacy Wiring of Communicating Amana Condensers. Required When The Outdoor Unit Is Paired With Non-Communicating Indoor Units. Dimensions: 1/2" H x 1-1/2" W x 2" D, Weight: 0.02 lbs Paired with:
7-Day Programmable Digital Touch Screen Thermostat, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: R & C Wire, Color: White, Applications: Heat Pumps, Conventional system, Dimensions: 4-1/16''H X 4-1/16''W X 1-5/32''D
41-5/8''H x 35-1/2''W x 35-1/2''D, Weight: 276 lbs **Compatible With Comfortbridge Technology Units** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
4 Ton Cased N Coil, Airflow: Multiposition, CFM: 1800, Metering Device: TXV, Connection Type:
Sweat, Refrigerant: R410A, Connection Size: 3/8" X 7/8", Drain Pan: Plastic, Dimensions: 28''H X 21''W X 21-11/16''D, Weight: 71 lbs **Compatible with Gas or Oil Furnaces** Paired with:
7 Pin Connector, Used for Legacy Wiring of Communicating Amana Condensers. Required When The Outdoor Unit Is Paired With Non-Communicating Indoor Units. Dimensions: 1/2" H x 1-1/2" W x 2" D, Weight: 0.02 lbs Paired with:
7-Day Programmable Digital Touch Screen Thermostat, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 40 °F to 90 °F (Heating) and 50°F to 99°F (Cooling), Power: R & C Wire, Color: White, Applications: Heat Pumps, Conventional system, Dimensions: 4-1/16''H X 4-1/16''W X 1-5/32''D
Specifications
Specifications
Cabinet Size:35.5
Capacity:4
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:2
System Controls:NON-COMMUNICATING
