SCL # :220813
Manufacturer Item # :ASXC704810/DRAH2TA4821ASTNNJ/0130M00485/TH6220
Alternate Part # :220471,220136,219847,219754-TH6220WF2006/U

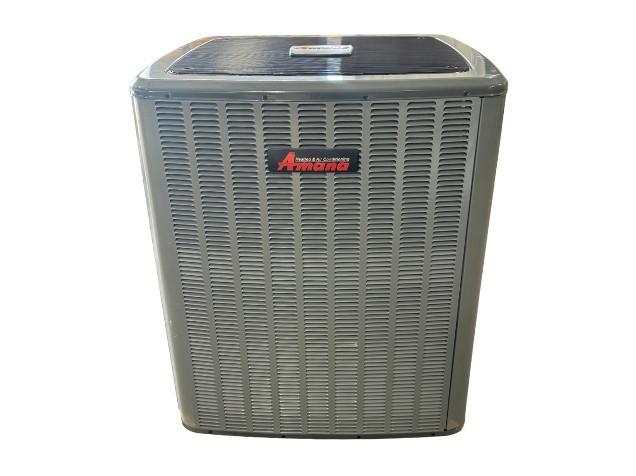

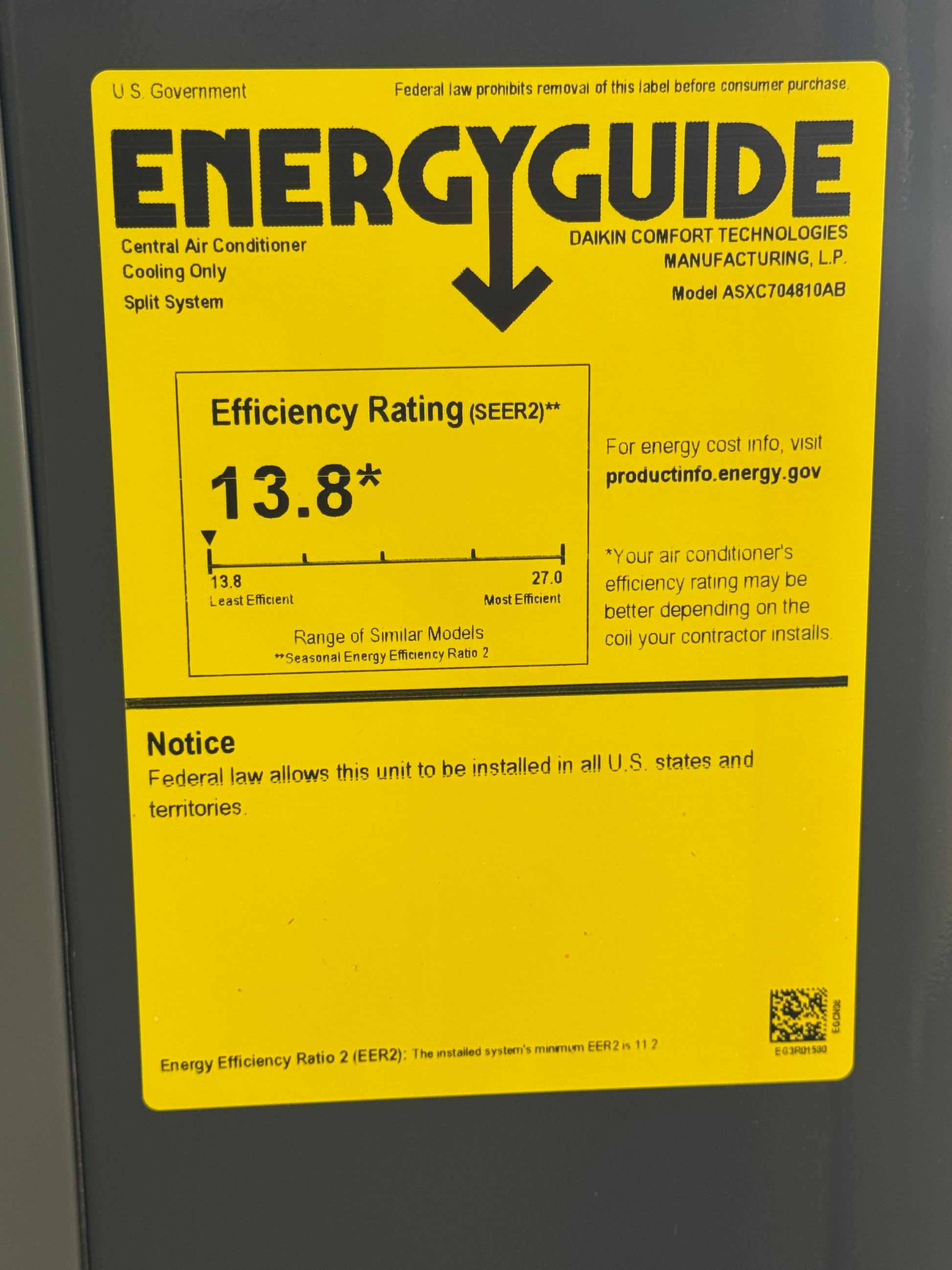

4 ton two-stage split-system communicating compatible air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, SEER2: 17 (in communicating mode), Stage: two, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 195 oz, Type: air, Dimensions: 41-5/8"H x 35-1/2"W x 35-1/2"D, Weight: 276 lbs
***COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:

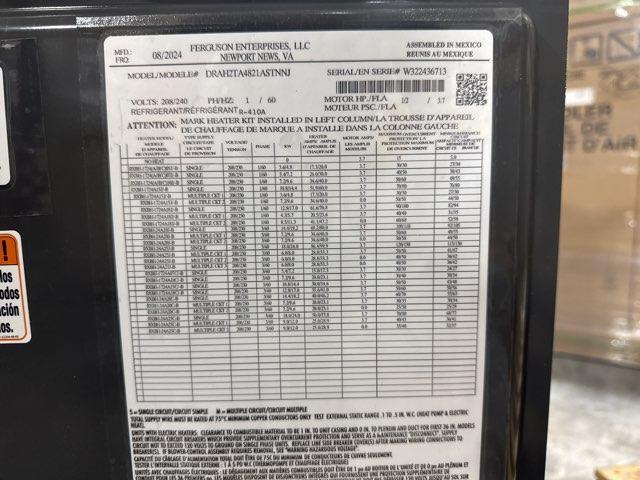

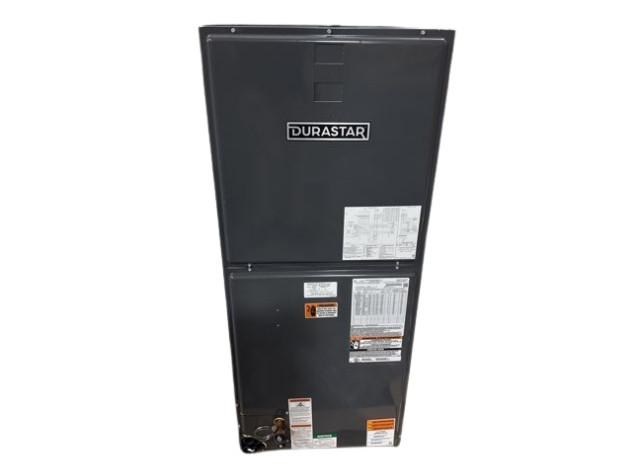

4 ton AC/HP air handler, Airflow: multi-position, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R410A, Motor Type: ECM, Metering Device: TXV, Connections: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 50-1/2"H x 21"W x 21-11/16"D, Weight: 128 lbs
**COMPATIBLE HEAT KIT IS NOT INCLUDED (Model# RXBH-B, WRXI 5-20 Kw - smart plug)**
paired with:

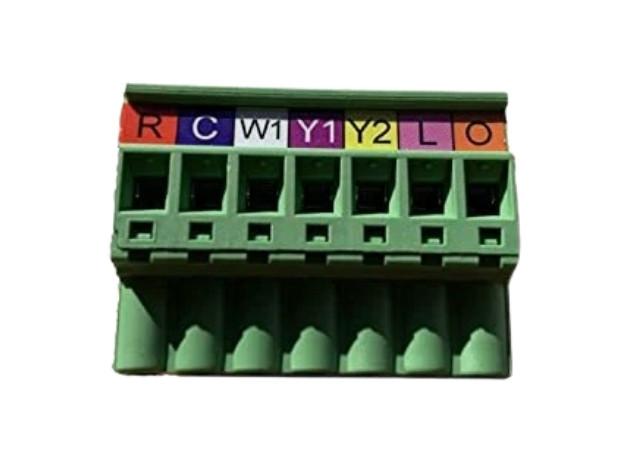

7-pin connector; used for legacy wiring of communicating Amana condensers GSZC16–18, required when the outdoor unit is paired with a non-communicating indoor unit, Dimensions: 1/2"H x 1-1/2"W x 2"D, Weight: 0.02 lbs
paired with:

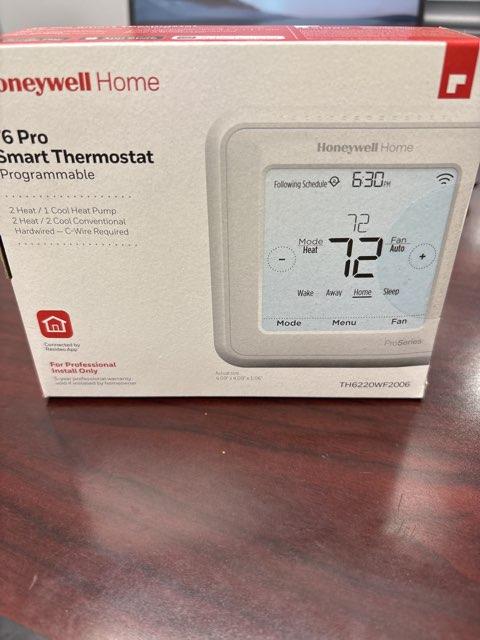

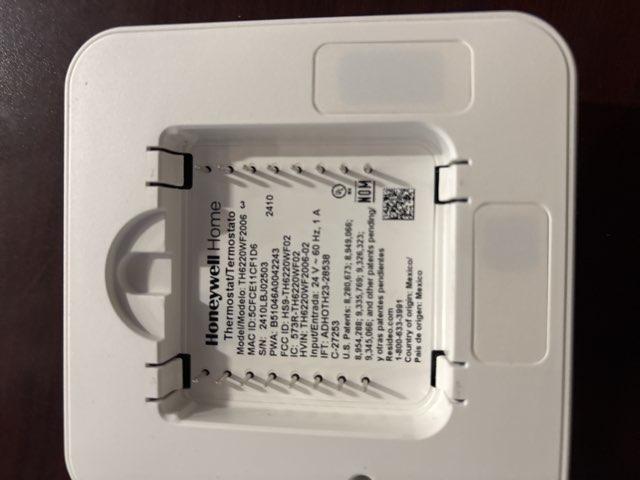

7-day programmable digital touchscreen thermostat; 2-heat/2-cool (conventional system), 2-heat/1-cool (heat pump system), Temperature Range: 40°F - 90°F (heating) & 50°F - 99°F (cooling), Power: R & C wire, Color: white, Applications: heat pump system & conventional system, Dimensions: 4-1/16"H x 4-1/16"W x 1-5/32"D
***COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:
4 ton AC/HP air handler, Airflow: multi-position, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R410A, Motor Type: ECM, Metering Device: TXV, Connections: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 50-1/2"H x 21"W x 21-11/16"D, Weight: 128 lbs
**COMPATIBLE HEAT KIT IS NOT INCLUDED (Model# RXBH-B, WRXI 5-20 Kw - smart plug)**
paired with:
7-pin connector; used for legacy wiring of communicating Amana condensers GSZC16–18, required when the outdoor unit is paired with a non-communicating indoor unit, Dimensions: 1/2"H x 1-1/2"W x 2"D, Weight: 0.02 lbs
paired with:
7-day programmable digital touchscreen thermostat; 2-heat/2-cool (conventional system), 2-heat/1-cool (heat pump system), Temperature Range: 40°F - 90°F (heating) & 50°F - 99°F (cooling), Power: R & C wire, Color: white, Applications: heat pump system & conventional system, Dimensions: 4-1/16"H x 4-1/16"W x 1-5/32"D
Product Details
Product Details
SCL # :220813
Manufacturer Item # :ASXC704810/DRAH2TA4821ASTNNJ/0130M00485/TH6220
Alternate Part # :220471,220136,219847,219754-TH6220WF2006/U
4 ton two-stage split-system communicating compatible air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, SEER2: 17 (in communicating mode), Stage: two, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 195 oz, Type: air, Dimensions: 41-5/8"H x 35-1/2"W x 35-1/2"D, Weight: 276 lbs
***COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:
4 ton AC/HP air handler, Airflow: multi-position, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R410A, Motor Type: ECM, Metering Device: TXV, Connections: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 50-1/2"H x 21"W x 21-11/16"D, Weight: 128 lbs
**COMPATIBLE HEAT KIT IS NOT INCLUDED (Model# RXBH-B, WRXI 5-20 Kw - smart plug)**
paired with:
7-pin connector; used for legacy wiring of communicating Amana condensers GSZC16–18, required when the outdoor unit is paired with a non-communicating indoor unit, Dimensions: 1/2"H x 1-1/2"W x 2"D, Weight: 0.02 lbs
paired with:
7-day programmable digital touchscreen thermostat; 2-heat/2-cool (conventional system), 2-heat/1-cool (heat pump system), Temperature Range: 40°F - 90°F (heating) & 50°F - 99°F (cooling), Power: R & C wire, Color: white, Applications: heat pump system & conventional system, Dimensions: 4-1/16"H x 4-1/16"W x 1-5/32"D
***COMPATIBLE WITH COMFORTBRIDGE TECHNOLOGY UNITS**
**UNIT INCLUDES A MANUFACTURER’S WARRANTY. REGISTER YOUR UNIT WITH THE MANUFACTURER FOR DETAILS**
paired with:
4 ton AC/HP air handler, Airflow: multi-position, Volts: 208-240, Hertz: 60, Phase: 1, CFM: 1472, Refrigerant: R410A, Motor Type: ECM, Metering Device: TXV, Connections: 7/8" suction x 3/8" liquid, Type: air source, Dimensions: 50-1/2"H x 21"W x 21-11/16"D, Weight: 128 lbs
**COMPATIBLE HEAT KIT IS NOT INCLUDED (Model# RXBH-B, WRXI 5-20 Kw - smart plug)**
paired with:
7-pin connector; used for legacy wiring of communicating Amana condensers GSZC16–18, required when the outdoor unit is paired with a non-communicating indoor unit, Dimensions: 1/2"H x 1-1/2"W x 2"D, Weight: 0.02 lbs
paired with:
7-day programmable digital touchscreen thermostat; 2-heat/2-cool (conventional system), 2-heat/1-cool (heat pump system), Temperature Range: 40°F - 90°F (heating) & 50°F - 99°F (cooling), Power: R & C wire, Color: white, Applications: heat pump system & conventional system, Dimensions: 4-1/16"H x 4-1/16"W x 1-5/32"D
Specifications
Specifications
Cabinet Size:35.5
Capacity:4
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:2
System Controls:NON-COMMUNICATING
