SCL # :222693-7735057618
Manufacturer Item # :SM048-1VTC-FLTADB-7735057618-S/N

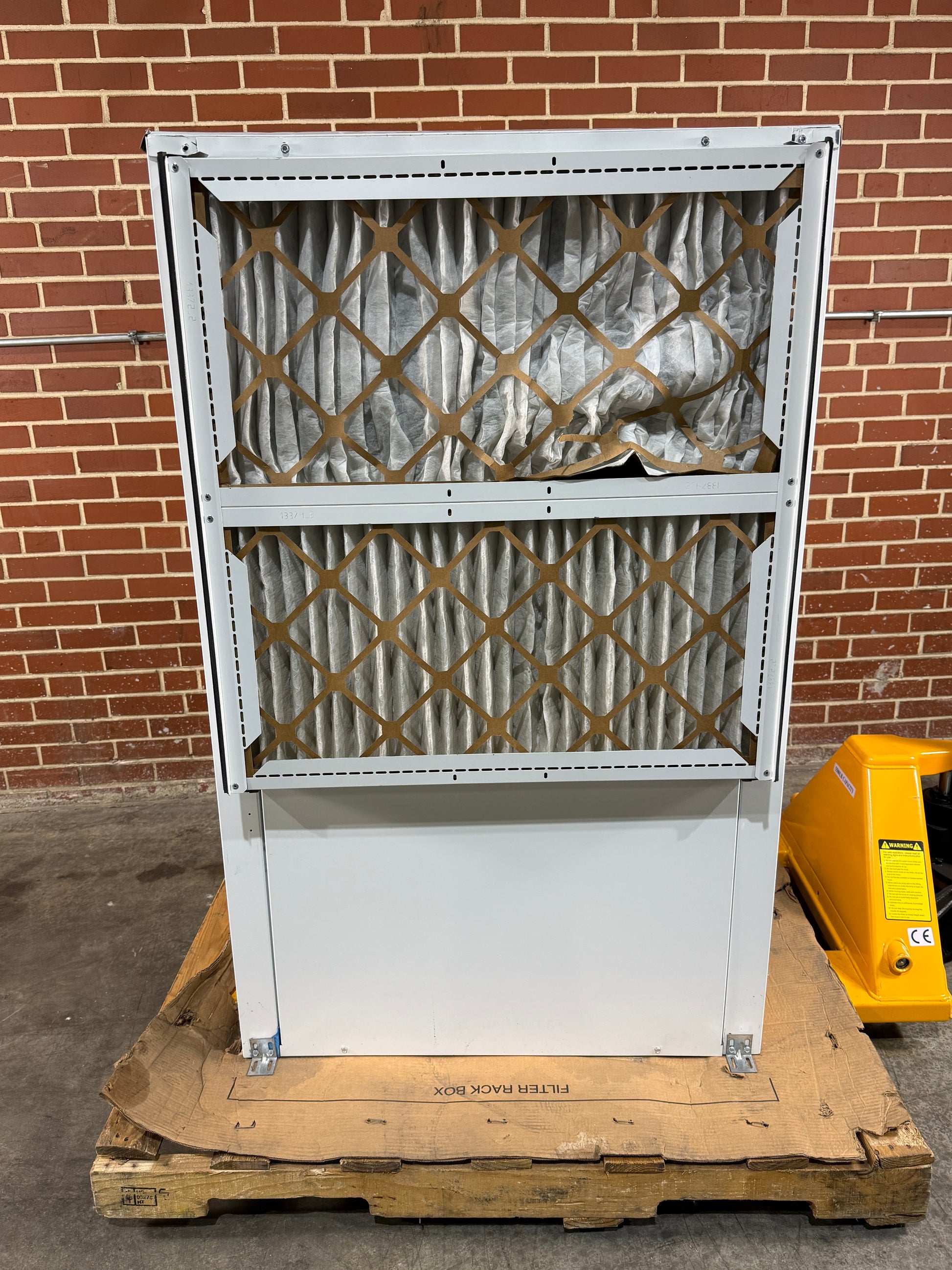

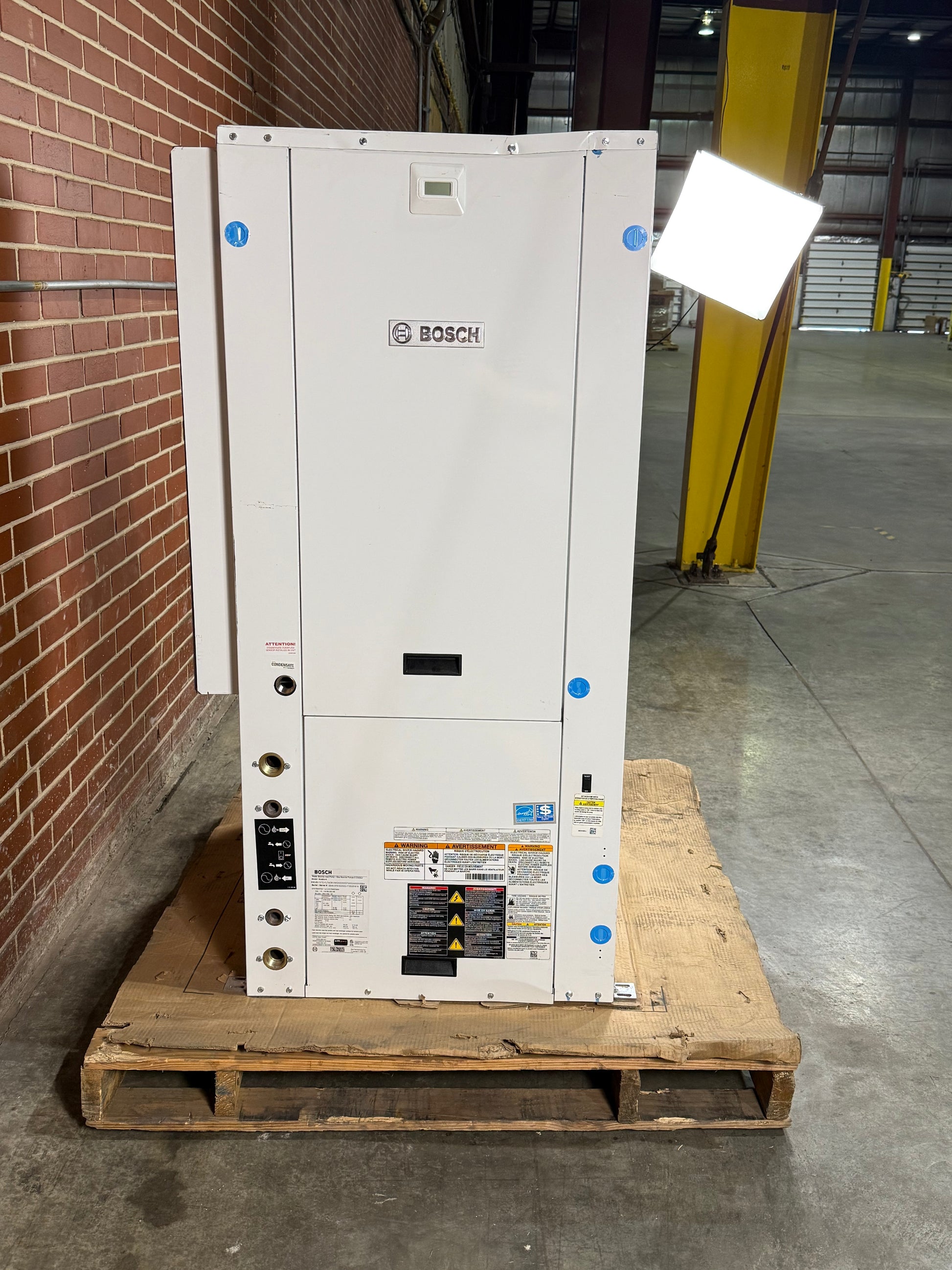

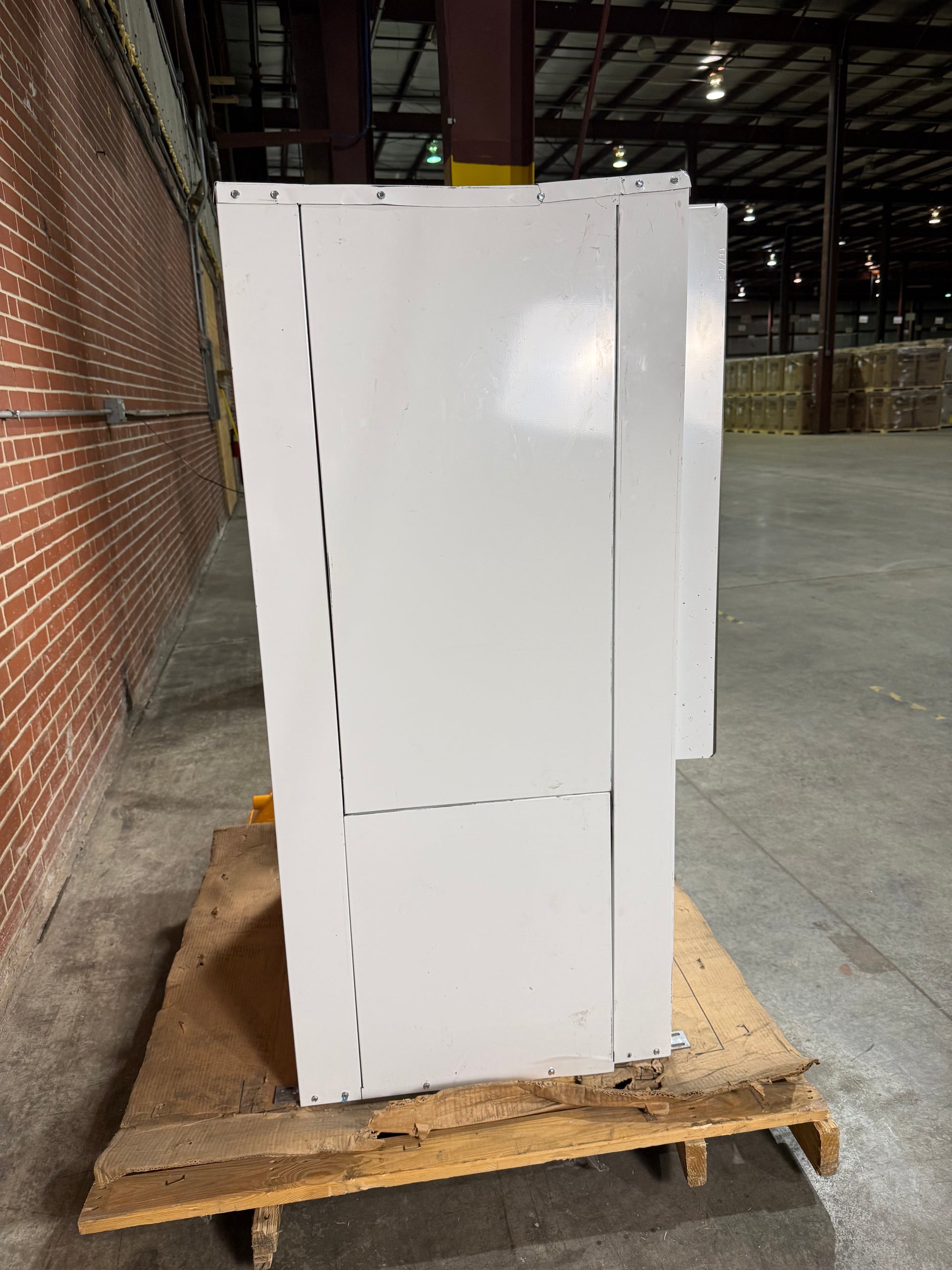

4 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Left Return, EER: 25.2, Stage: Two, Motor Type: ECM, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 75 oz, Water Loop - Cooling BTU: 50,500/Heating BTU: 60,300, Ground Water - Cooling BTU: 56,900/Heating BTU: 49,200, Ground Loop - Cooling BTU: 51,800/Heating BTU: 38,200, Connection Size: 1", Dimensions: 54''H x 24-1/2''W x 33-3/10''D, Weight: 340 lbs ***Large dent to bottom panel on back, front and side of unit. Additional damage to top panel***
Product Details
Product Details
SCL # :222693-7735057618
Manufacturer Item # :SM048-1VTC-FLTADB-7735057618-S/N
4 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Left Return, EER: 25.2, Stage: Two, Motor Type: ECM, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 75 oz, Water Loop - Cooling BTU: 50,500/Heating BTU: 60,300, Ground Water - Cooling BTU: 56,900/Heating BTU: 49,200, Ground Loop - Cooling BTU: 51,800/Heating BTU: 38,200, Connection Size: 1", Dimensions: 54''H x 24-1/2''W x 33-3/10''D, Weight: 340 lbs ***Large dent to bottom panel on back, front and side of unit. Additional damage to top panel***
Specifications
Specifications
Cabinet Size:24.5
Capacity:4
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:No Manufacture Packaging
