SCL # :177762-DAMAGED
Manufacturer Item # :1WDC9-DAMAGED

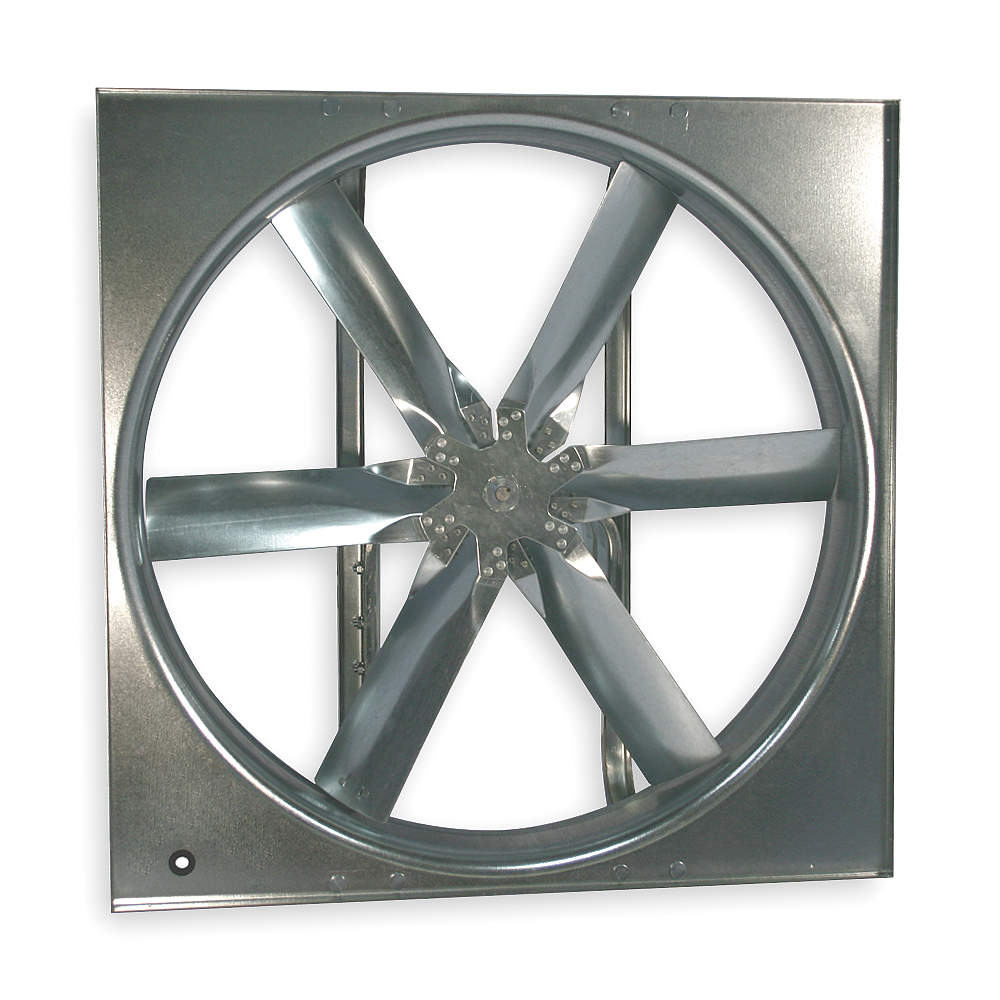

48" Supply Fan Less Drive Package, Drive Type:Belt, Max Inlet Temp:104 Degrees F, Max Ambient Temp:104 Degrees F, Motor HP Range:1/3 To 3, Horsepower And RPM'S, 1/2 HP-341, 3/4 HP-393, 1HP-429 RPM, 1-1/2 HP-491 RPM, 2 HP-540 RPM, 3 HP-618 RPM, Bearing Size:1-1/4", Bearing Type:Regreasable Pillow Block, Number Of Blades:6, Blade Material:Steel, Shaft Dia:1-1/4", Outside Dia:54", Flange Width:2", Mounting Position:Vertical/Horizontal, Frame Material:Galvanized Steel, Dims:54"H X 54"W X 25-1/8"D, Overall Weight:196 Lbs, Origin:Mexico,
Has Minor Damage To Frame And Fan Blade Spins But Catches On The Frame
Has Minor Damage To Frame And Fan Blade Spins But Catches On The Frame
Product Details
Product Details
SCL # :177762-DAMAGED
Manufacturer Item # :1WDC9-DAMAGED
48" Supply Fan Less Drive Package, Drive Type:Belt, Max Inlet Temp:104 Degrees F, Max Ambient Temp:104 Degrees F, Motor HP Range:1/3 To 3, Horsepower And RPM'S, 1/2 HP-341, 3/4 HP-393, 1HP-429 RPM, 1-1/2 HP-491 RPM, 2 HP-540 RPM, 3 HP-618 RPM, Bearing Size:1-1/4", Bearing Type:Regreasable Pillow Block, Number Of Blades:6, Blade Material:Steel, Shaft Dia:1-1/4", Outside Dia:54", Flange Width:2", Mounting Position:Vertical/Horizontal, Frame Material:Galvanized Steel, Dims:54"H X 54"W X 25-1/8"D, Overall Weight:196 Lbs, Origin:Mexico,
Has Minor Damage To Frame And Fan Blade Spins But Catches On The Frame
Has Minor Damage To Frame And Fan Blade Spins But Catches On The Frame
Specifications
Specifications
Cabinet Size:56
Packaging:No Manufacture Packaging
