SCL # :219832
Manufacturer Item # :RHP15060B21S/WH2TZ6024STANNJ/WRX2002BI
Alternate Part # :218094,219727,218781

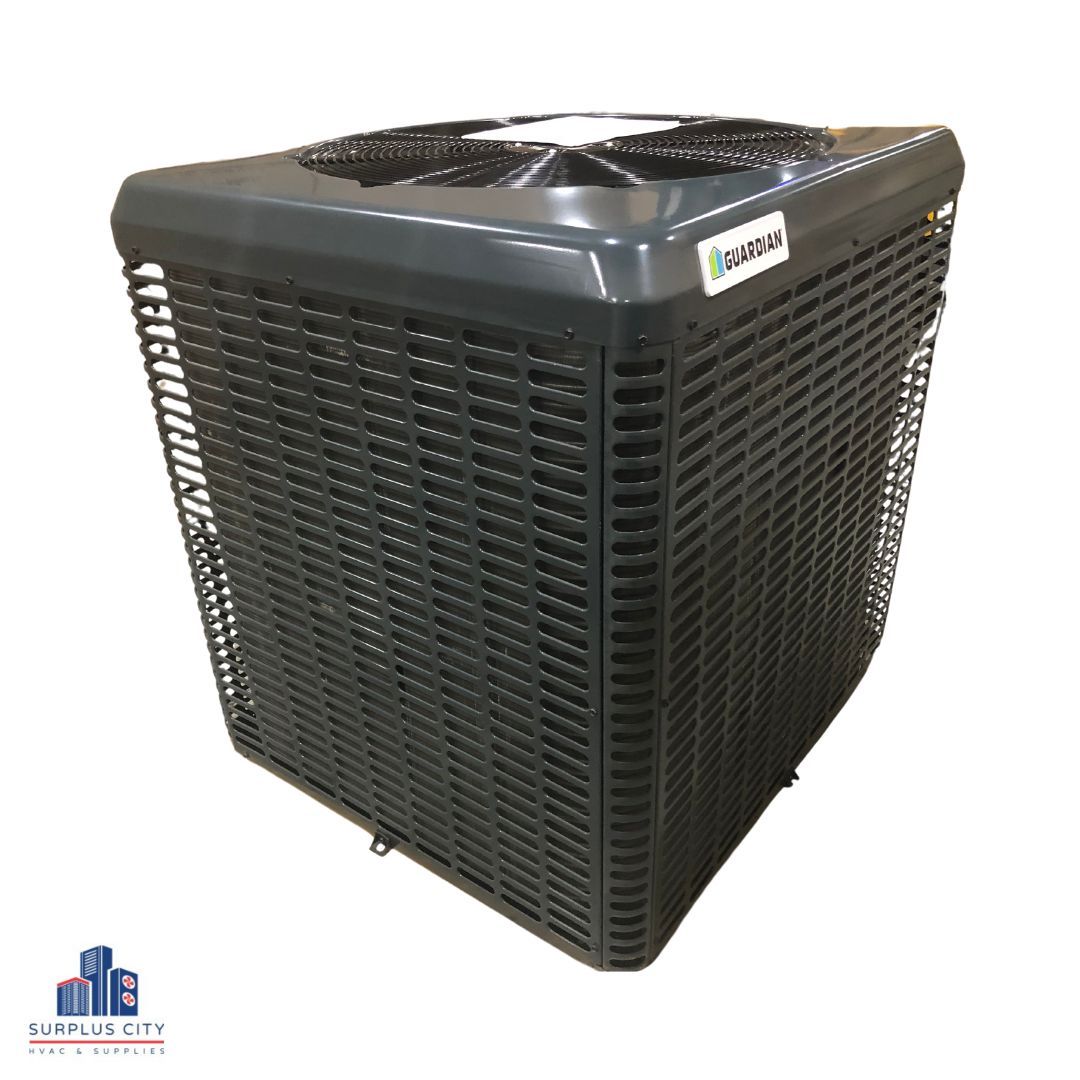

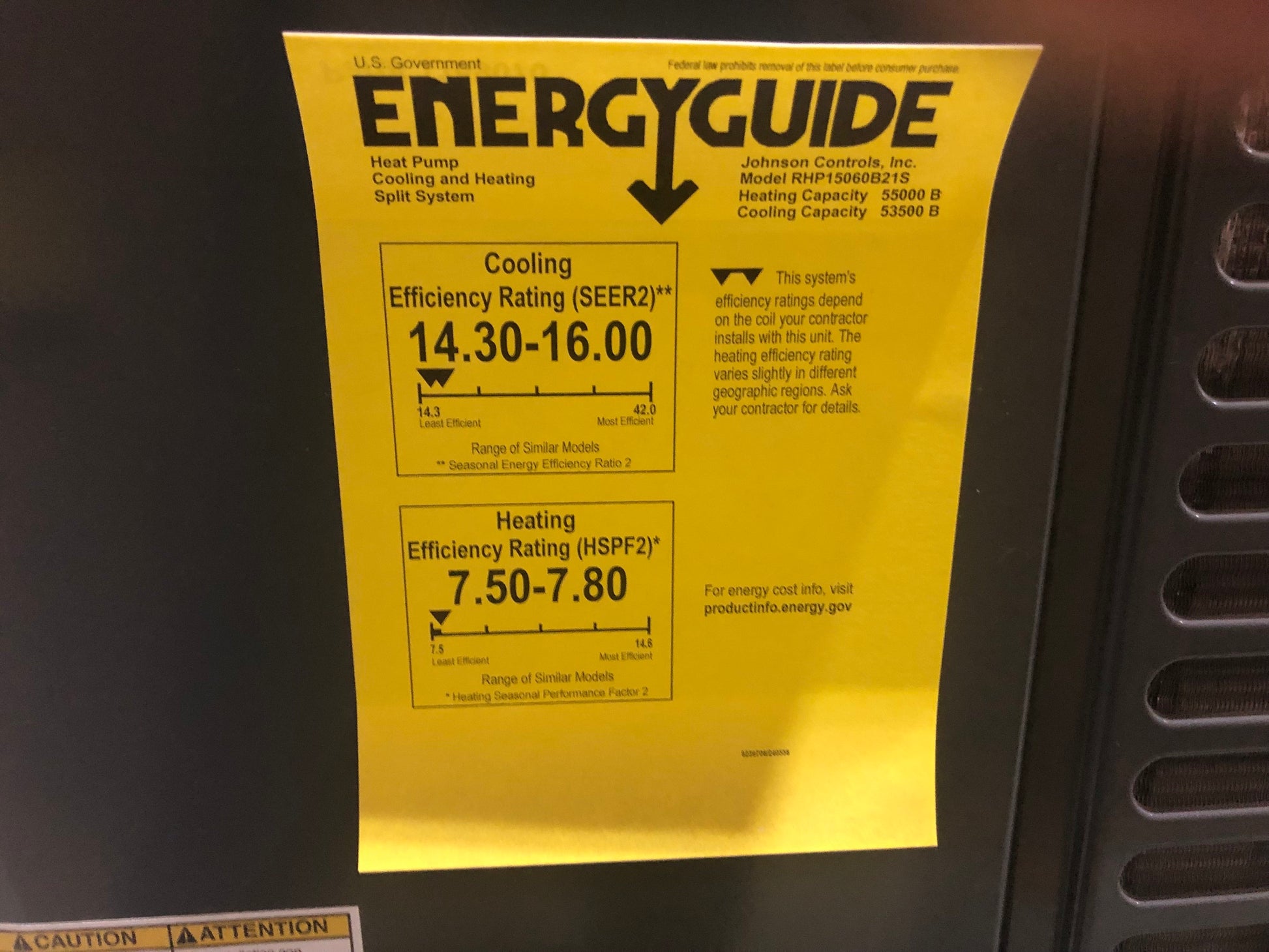

5 ton split-system heat pump; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department Of Energy Guide SEER2: 15.2, Stage: two, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type:

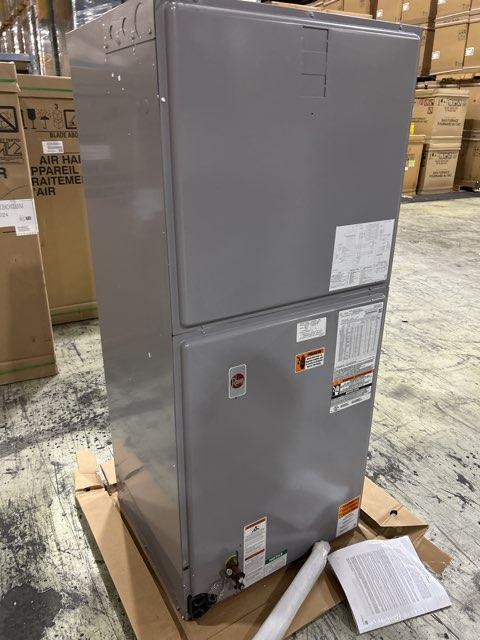

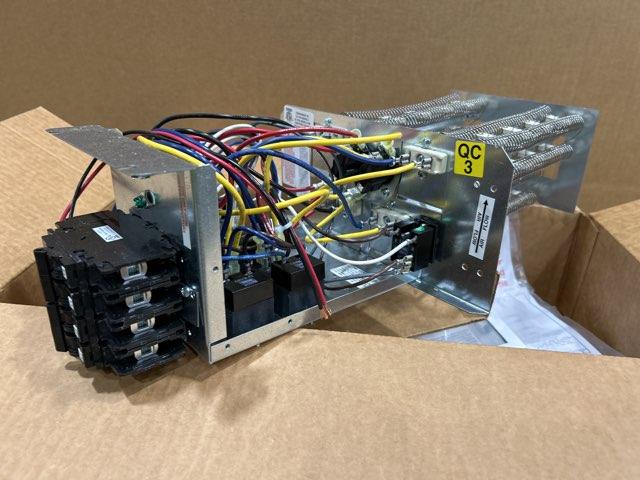

Sweat, Factory Charge: 9 lbs 10 oz, Type: air, Dimensions: 46''H x 38''W x 34-1/4''D, Weight: 242lbs Paired with 5 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1877, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8" Liquid-3/8", Type: Air Source, Dimensions: 55-1/2''H X 24-1/2''W X 21-11/16''D, Weight: 161 lbs Paired with 20 Kw Electric Heat Kit, Volts: 208-240, Hertz: 60, Phase: 1, Amps: 80, In Mfg Box, Made In USA. **Compatible with Newer Rheem Air handlers with Smart Plug**
Sweat, Factory Charge: 9 lbs 10 oz, Type: air, Dimensions: 46''H x 38''W x 34-1/4''D, Weight: 242lbs Paired with 5 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1877, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8" Liquid-3/8", Type: Air Source, Dimensions: 55-1/2''H X 24-1/2''W X 21-11/16''D, Weight: 161 lbs Paired with 20 Kw Electric Heat Kit, Volts: 208-240, Hertz: 60, Phase: 1, Amps: 80, In Mfg Box, Made In USA. **Compatible with Newer Rheem Air handlers with Smart Plug**
Product Details
Product Details
SCL # :219832
Manufacturer Item # :RHP15060B21S/WH2TZ6024STANNJ/WRX2002BI
Alternate Part # :218094,219727,218781
5 ton split-system heat pump; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department Of Energy Guide SEER2: 15.2, Stage: two, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type:
Sweat, Factory Charge: 9 lbs 10 oz, Type: air, Dimensions: 46''H x 38''W x 34-1/4''D, Weight: 242lbs Paired with 5 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1877, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8" Liquid-3/8", Type: Air Source, Dimensions: 55-1/2''H X 24-1/2''W X 21-11/16''D, Weight: 161 lbs Paired with 20 Kw Electric Heat Kit, Volts: 208-240, Hertz: 60, Phase: 1, Amps: 80, In Mfg Box, Made In USA. **Compatible with Newer Rheem Air handlers with Smart Plug**
Sweat, Factory Charge: 9 lbs 10 oz, Type: air, Dimensions: 46''H x 38''W x 34-1/4''D, Weight: 242lbs Paired with 5 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 1877, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8" Liquid-3/8", Type: Air Source, Dimensions: 55-1/2''H X 24-1/2''W X 21-11/16''D, Weight: 161 lbs Paired with 20 Kw Electric Heat Kit, Volts: 208-240, Hertz: 60, Phase: 1, Amps: 80, In Mfg Box, Made In USA. **Compatible with Newer Rheem Air handlers with Smart Plug**
Specifications
Specifications
Cabinet Size:38
Capacity:5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:2
System Controls:NON-COMMUNICATING
