SCL # :219612-24452YK73V
Manufacturer Item # :TEM4B0C60S51SA-24452YK73V

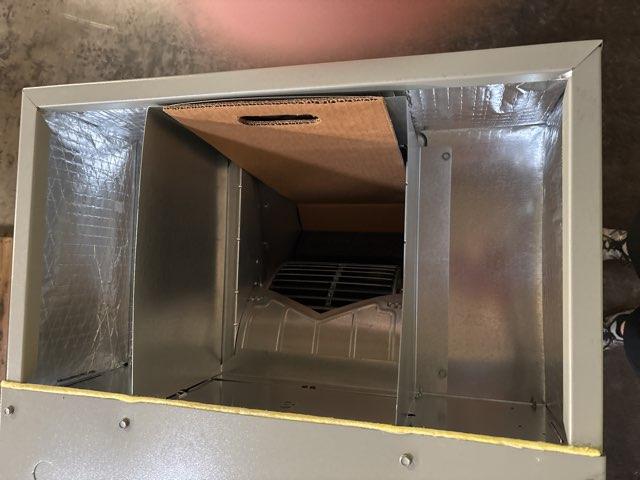

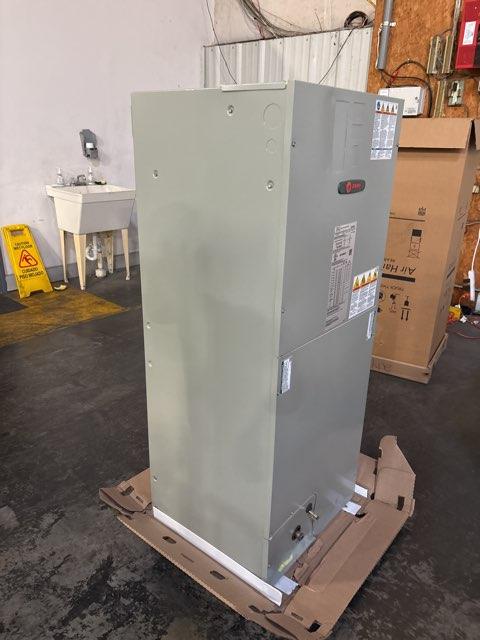

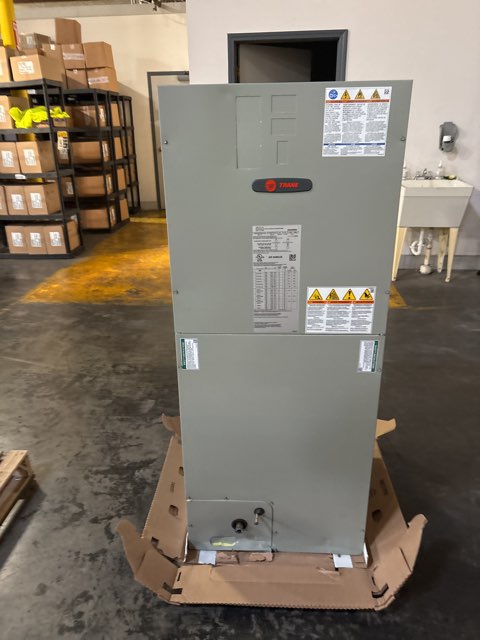

5 ton AC/HP air handler; Airflow: multi-position, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 2040, Refrigerant: R410A, Motor Type: ECM, Metering Device: TXV, Connections: 3/8" liquid x 7/8" suction, Type: air source, Dimensions: 57-2/5"H x 23-1/2"W x 21-1/8"D, Weight: 174 lbs
***COMPATIBLE HEAT KIT IS NOT INCLUDED (Model#s BAYHTR15(04-25)BRK, BAYHTR15(04-10)LUG, and BAYHTR35(10-17)LUG)***

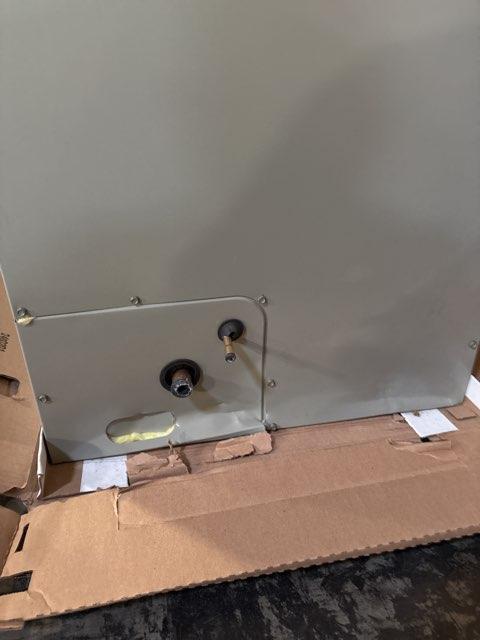

**Dents on the front panel at the bottom**
***COMPATIBLE HEAT KIT IS NOT INCLUDED (Model#s BAYHTR15(04-25)BRK, BAYHTR15(04-10)LUG, and BAYHTR35(10-17)LUG)***
**Dents on the front panel at the bottom**
Product Details
Product Details
SCL # :219612-24452YK73V
Manufacturer Item # :TEM4B0C60S51SA-24452YK73V
5 ton AC/HP air handler; Airflow: multi-position, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 2040, Refrigerant: R410A, Motor Type: ECM, Metering Device: TXV, Connections: 3/8" liquid x 7/8" suction, Type: air source, Dimensions: 57-2/5"H x 23-1/2"W x 21-1/8"D, Weight: 174 lbs
***COMPATIBLE HEAT KIT IS NOT INCLUDED (Model#s BAYHTR15(04-25)BRK, BAYHTR15(04-10)LUG, and BAYHTR35(10-17)LUG)***
**Dents on the front panel at the bottom**
***COMPATIBLE HEAT KIT IS NOT INCLUDED (Model#s BAYHTR15(04-25)BRK, BAYHTR15(04-10)LUG, and BAYHTR35(10-17)LUG)***
**Dents on the front panel at the bottom**
Specifications
Specifications
Cabinet Size:23.5
Capacity:5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
System Controls:NON-COMMUNICATING
