SCL # :201132
Manufacturer Item # :RH2V6024STANJA

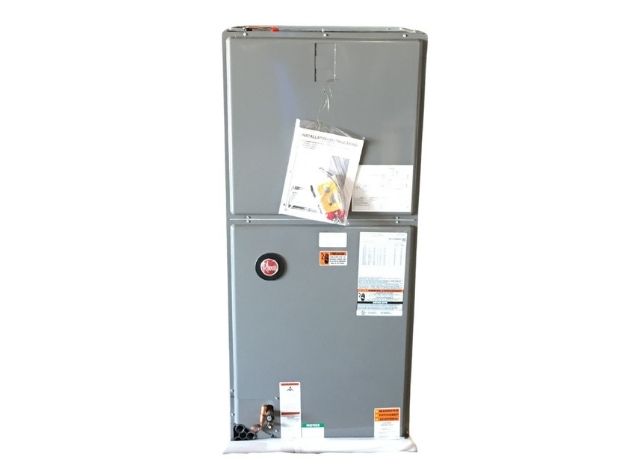

5 ton AC/HP two-stage comfort control system fancoil with ECM motor; Airflow: multi-position, Volts: 208/240, Hertz: 60, Phase: 1, Refrigerant: R410A, SEER: up to 16, Connection Type: sweat, Connection Size: 3 /8" x 7/8", Heat: none, CFM: 1400/1800, Metering Device: TEV, Return Air Dims: 10-15/16" x 22-7/8", Unit Dimensions: 55-1/2"H x 24-1/2"W x 21-3/4"D, Weight: 159 lbs, Origin: Mexico
**APPROVED ELECTRIC HEAT KIT IS NOT INCLUDED (Model#s RXBH-172407J, 10J, RXBH-1724A15J, 18J, RXBH-24A20J, 25J, and 30J)**
**APPROVED ELECTRIC HEAT KIT IS NOT INCLUDED (Model#s RXBH-172407J, 10J, RXBH-1724A15J, 18J, RXBH-24A20J, 25J, and 30J)**
Product Details
Product Details
SCL # :201132
Manufacturer Item # :RH2V6024STANJA
5 ton AC/HP two-stage comfort control system fancoil with ECM motor; Airflow: multi-position, Volts: 208/240, Hertz: 60, Phase: 1, Refrigerant: R410A, SEER: up to 16, Connection Type: sweat, Connection Size: 3 /8" x 7/8", Heat: none, CFM: 1400/1800, Metering Device: TEV, Return Air Dims: 10-15/16" x 22-7/8", Unit Dimensions: 55-1/2"H x 24-1/2"W x 21-3/4"D, Weight: 159 lbs, Origin: Mexico
**APPROVED ELECTRIC HEAT KIT IS NOT INCLUDED (Model#s RXBH-172407J, 10J, RXBH-1724A15J, 18J, RXBH-24A20J, 25J, and 30J)**
**APPROVED ELECTRIC HEAT KIT IS NOT INCLUDED (Model#s RXBH-172407J, 10J, RXBH-1724A15J, 18J, RXBH-24A20J, 25J, and 30J)**
Specifications
Specifications
Cabinet Size:24.5
Capacity:5
Category:MULTI POSITION
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
System Controls:NON-COMMUNICATING
